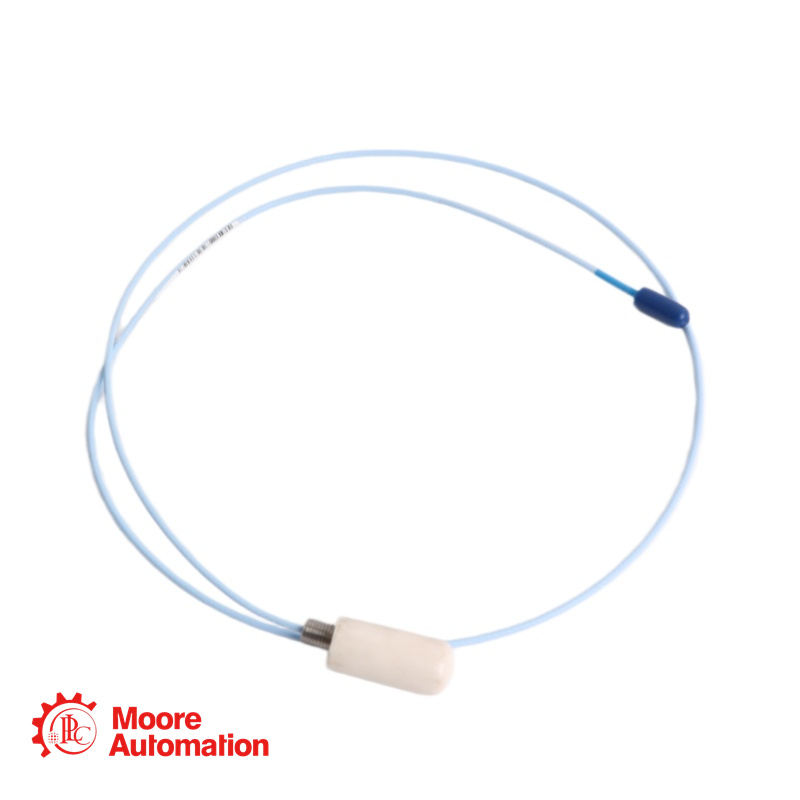

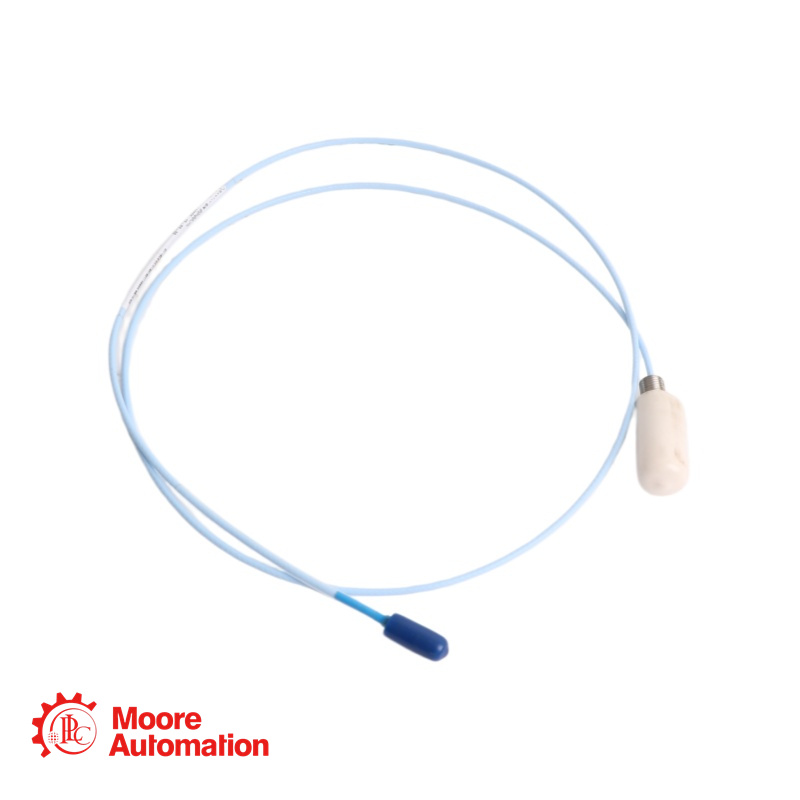

Bently Nevada 146054-12-05-02-05 Ceramic Capped Probe
Marca :
Bently NevadaNumero parte :
146054-12-05-02-05Il peso :
0.04 kgDimensione :
117x2x2cmPaese d'origine :
USACodice SA :
8537101190Descrizione :
Ceramic Capped Probe
>>>Inquire 146054-12-05-02-05
Email: sales5@mooreplc.com
Phone/ Whatsapp: +86 15359408275
>>>146054-12-05-02-05
Part Number: 146054-12-05-02-05
Product:3300 XL 8 mm Proximity Probe (Standard forward mount)
Option Code
Selection
Description
Base P/N
146054
3300 Ceramic Capped Probe, 3/8-24 UNF thread, without armor
AA (Overall Case Length)
12
1.2 inches (Minimum 0.8 in, maximum 4.0 in, increments of 0.1 in)
BB (Total Cable Length)
05
0.5 meter (1.6 feet)
CC (Connector & Cable Type)
02
Miniature coaxial ClickLoc connector, standard cable (no connector protector)
DD (Agency Approval)
05
Multiple Approvals (CSA, ATEX, IECEx)
>>>Specification - 146054-12-05-02-05
Probe Type:3300 Ceramic Capped Probe (forward mount)
Thread Size:3/8-24 UNF
Armor:None (without armor)
Probe Tip Material:Alumina ceramic (Al₂O₃)
Probe Case Material:AISI 304 stainless steel
Cable Type:75Ω coaxial, FEP insulated
Total Cable Length:0.5 meter (1.6 feet)
Case Length (AA=12):1.2 inches (30.5 mm)
Linear Range:1.52 mm (60 mils) from ~0.25 mm to 1.78 mm (~ -4 Vdc to -16 Vdc)
>>> FAQ - 146054-12-05-02-05
1. What is the 3300 Ceramic Capped Probe used for?
It is designed for machinery monitoring in aggressive chemical or high-pressure environments, such as applications involving anhydrous ammonia or other extreme pH conditions. The alumina ceramic cap provides excellent corrosion resistance.
2. Is this probe compatible with the 3300 XL Proximitor Sensor?
Yes. The 3300 Ceramic Capped Probe is compatible with the 3300 Proximitor Sensor and 3300 extension cable. However, note that the linear range is shifted compared to standard 3300 XL probes – extra care is required when configuring the monitor.
3. What is the pressure rating of this probe?
The 146054 probe is rated to 34 Bar (500 psi) nitrogen for the front-end seal. Modifications are available for higher-pressure applications. Contact Bently Nevada custom design department for pressure seal testing.
|
