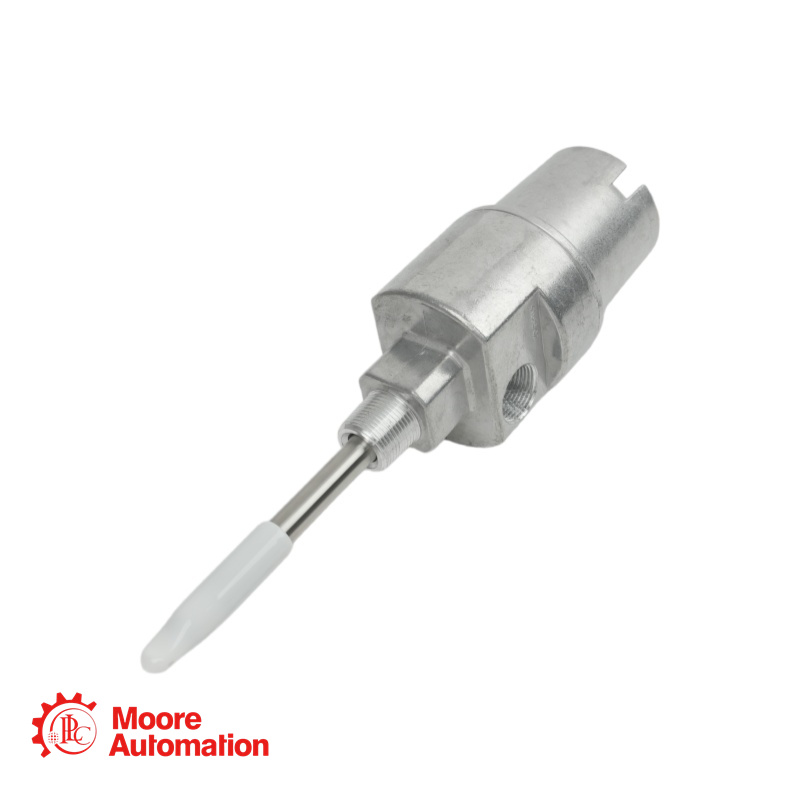

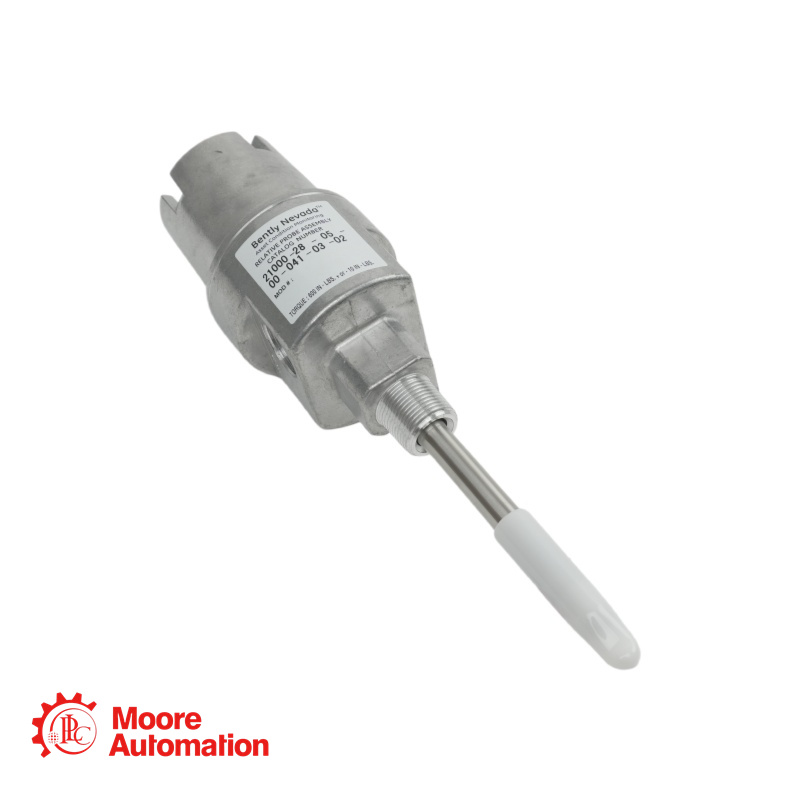

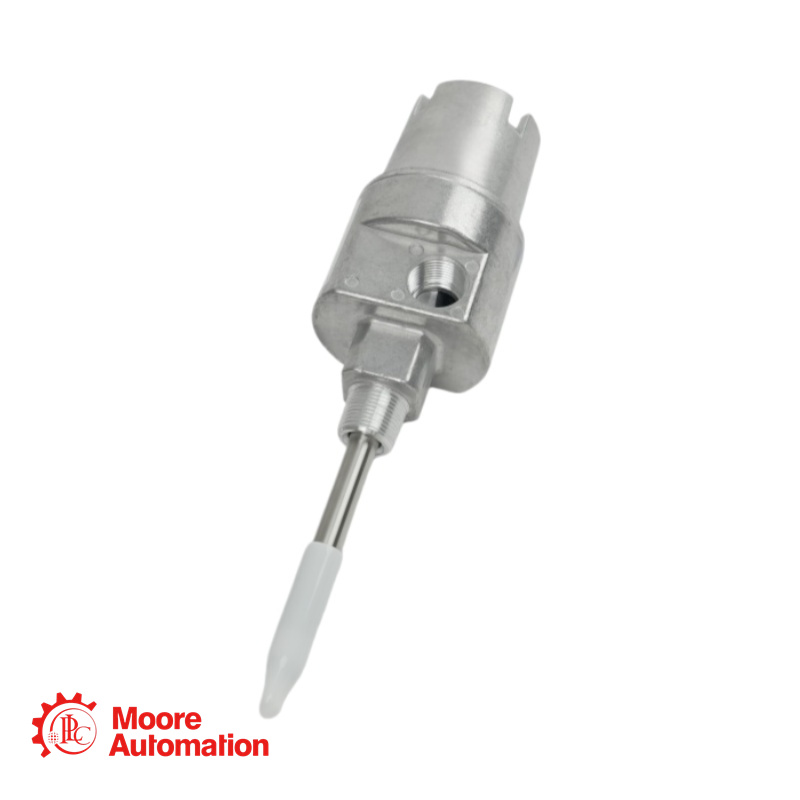

21000-28-05-40-026-04-02 is 21000 aluminum probe housing assembly
Marca :
Bently NevadaNumero parte :
21000-28-05-40-026-04-02Il peso :
1.05kgDimensione :
30.5x8.5x8.5cmPaese d'origine :
USACodice SA :
8537101190Descrizione :
Proximity Probe Housing Assembly
|
Bently Nevada 21000-28-05-40-026-04-02 Proximity Probe Housing Assembly |
|
21000 aluminum probe housing assembly 21000-AA-BB-CC-DDD-EE-FF: 21000:Proximity Probe Housing Assemblies A: Probe with Connector: 28 3300 XL 8mm probe, selectable hazardous area approvals B: Probe Cable Length: 05 0.5 m (20 in) C: Standoff Adapter: 40 4.0 in D: Probe Penetration: 026 2.6 in E: Fittings: 04 One 3/4-14 NPT plug only F: Mounting Thread:02 3/4-14 NPT
|
|
Get Best Price - Please Contact Frida |
|
|
Phone/Whatsapp: +86 15359408275 |
|
|
Email: sales5@mooreplc.com |
|
|
Bently Nevada 21000-28-05-40-026-04-02 FAQ |
||
|
Can I adjust or replace the probe while the machinery is operating?
Yes. This is the primary feature of the 21000 external-mounting assembly. By unscrewing the outer dome cover, technician personnel can safely adjust the linear gap or replace the reverse-mount probe without shutting down the industrial process.
What is the purpose of the 4.0-inch standoff adapter (-40 option)?
The standoff adapter extends the housing dome 4 inches away from the machine casing. This is typically used to clear thermal insulation on the machine, navigate tight spaces, or position the terminal connection box further out for easier field maintenance.
Product Series: Bently Nevada 21000, 24701, and 164818 Proximity Probe Housing Assemblies
To externally mount proximity probes, use one of these allmetal Proximity Probe Housing Assemblies:
24701 stainless steel probe housing assembly
The 21000, 24701, and 164818 Proximity Probe Housing
Assemblies consist of the following parts:
A dome cover that screws into the body of the housing
Threaded ports for conduit connections
A probe sleeve of optional length O-rings
A reverse mount proximity probe
A thread seal Optional conduit fittings
An optional standoff adapter
|
||
|
