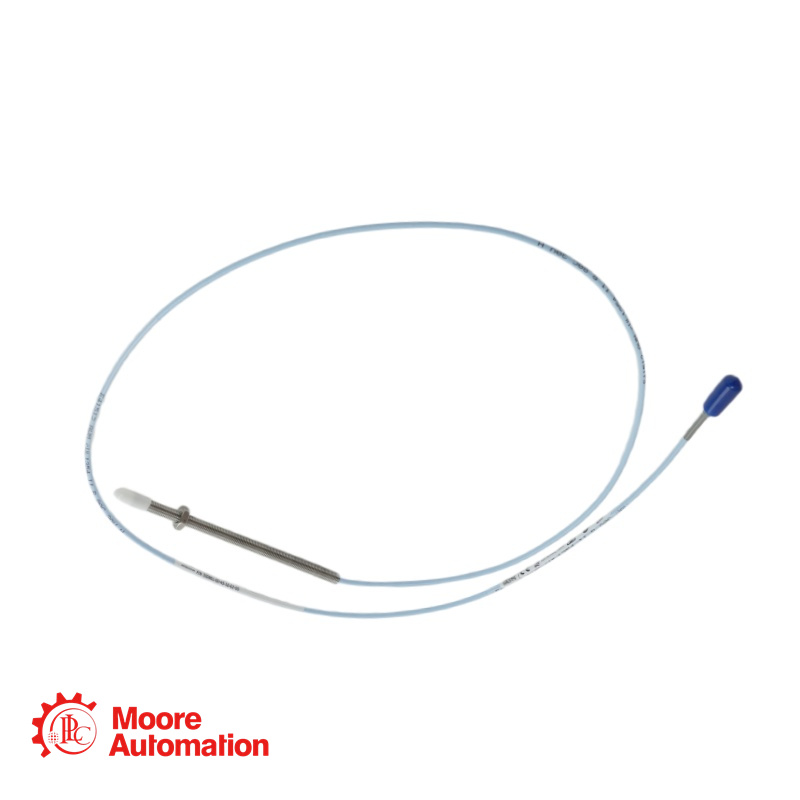

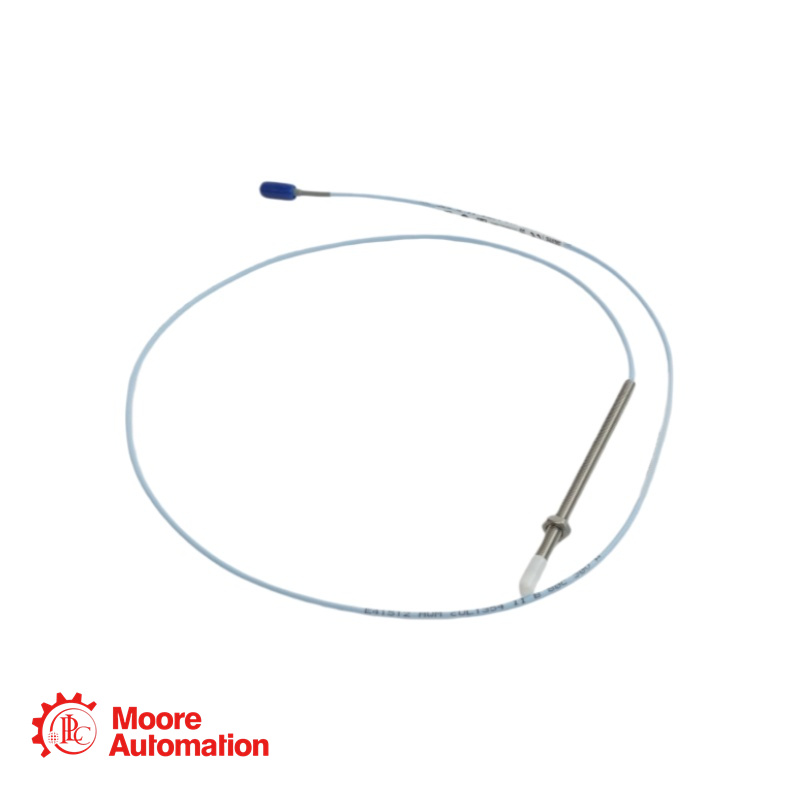

3300 NSv Proximity Probe 330901-00-10-02-00-02 – Bently Nevada

Parameter

Specification

Model Number

330901-00-10-02-00-02

Brand / Series

Bently Nevada 3300 NSv Proximity Probe

Probe Type

Standard mount, 1/4-28 UNF thread, without armor

Untreaded Length (A)

00 – 0.0 in (minimum: 0.0 in / maximum: 9.2 in, ordered in 0.1 in increments)

Overall Case Length (B)

10 – 1.0 in (minimum: 0.8 in / maximum: 9.9 in, ordered in 0.1 in increments)

Total Cable Length (C)

02 – 1.0 meter (39 inches)

Connector & Cable Option (D)

00 – Standard cable with ClickLoc connector (no connector protector)

Agency Approval Option (E)

02 – Not required (non-approved)

Thread Size

1/4-28 UNF-2A

Probe Tip Material

Polyphenylene Sulfide (PPS)

Probe Case Material

AISI 304 stainless steel

Cable Type

75 Ω coaxial, FEP insulated

Connector Type

Gold-plated brass ClickLoc (miniature coaxial)

Operating Temperature (Probe)

-52°C to +177°C (-62°F to +351°F)

Maximum Tensile Strength

220 N (50 lb) at probe case to cable

Recommended Torque

Finger tight (max 0.56 N·m / 5 in·lb)

Minimum Bend Radius

25.4 mm (1.0 in)

System Compatibility

3300 XL NSv Proximitor Sensor and 3300 NSv extension cables

What does the part number 330901-00-10-02-00-02 represent?

This is a standard-mount 3300 NSv probe. Each segment defines a specific option:
330901: Base model – 1/4-28 UNF thread, without armor
00: Untreaded length = 0.0 inches
10: Overall case length = 1.0 inches
02: Total cable length = 1.0 meter
00: Connector option – standard cable with ClickLoc connector (no connector protector)
02: Agency approval – not required (non-approved)

What is the difference between standard mount and reverse mount NSv probes?

Standard mount probes (330901–330910) are designed for conventional mounting through the machine casing with the cable exiting away from the target. Reverse mount probes (330906, 330907) are designed for installations where the probe must be inserted from the opposite side, with the cable exiting toward the target. Reverse mount probes are not available with armor or connector protector options.

Can this probe be used with existing 3300 RAM systems?

Yes. The 3300 NSv probe and extension cables are mechanically and electrically compatible and interchangeable with Bently Nevada's previous 3300 RAM proximity probe and extension cable. For complete system upgrades, the Proximitor® sensor should also be replaced with the 3300 XL NSv version.

What is the recommended gap setting for this probe?

When used with a 3300 XL NSv Proximitor® sensor and proper extension cable, the recommended gap setting is 1.0 mm (40 mils), which positions the probe in the center of its 1.5 mm (60 mil) linear range.

What is the maximum thread engagement length for a 1/4-28 probe?

The recommended maximum thread engagement length is 0.375 inches (1.5 times the nominal thread diameter). Exceeding this may cause binding during installation.
