3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor
Marca :
Bently NevadaNumero parte :
330101-00-12-20-02-05Il peso :
0.05 kgDimensione :
1.5x1.3x116cmPaese d'origine :
USACodice SA :
8537101190Descrizione :
Proximity Probe
Part number
330101-00-12-20-02-05
Manufacturer
Country of origin
USA
Status
Brand New In Stock
Short Description
Proximity Probe
Bently Nevada
|
Contact Here to Get Price |
|
|
Sales Manager |
Frida |
|
Phone/Whatsapp |
|
|
|
sales5@mooreplc.com |
- 330101-00-12-20-02-05 Proximity Probe

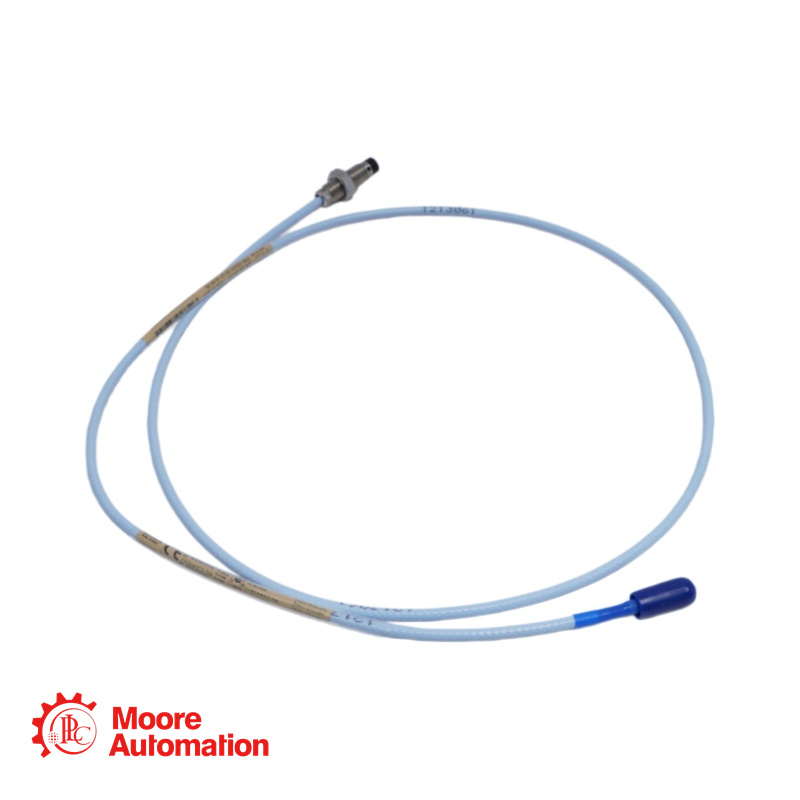

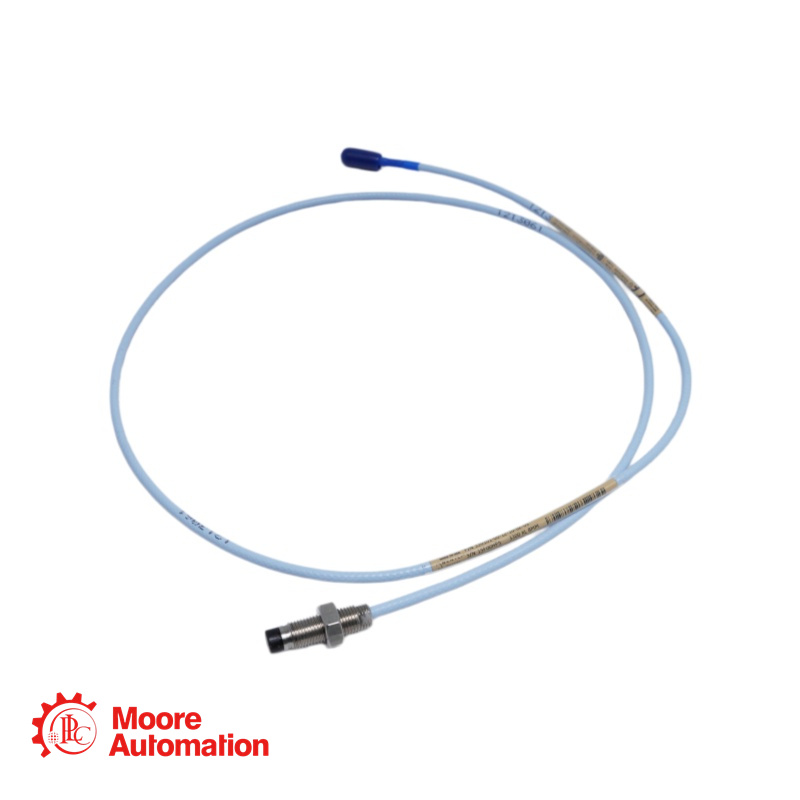

The 330101-00-12-20-02-05 is a 3300 XL 8 mm Proximity Probe with 3/8-24 UNF threads, without armor. This probe is part of the 3300 XL 8 mm Proximity Transducer System, which provides an output voltage directly proportional to the distance between the probe tip and the observed conductive surface, measuring both static (position) and dynamic (vibration) values.
Base 330101 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor
A: Unthreaded Length Option 00 0.0 in
B: Overall Case Length Option 12 1.2 in
C: Total Length Option 20 2.0 meters
D: Connector and Cable-Type Option 02 Miniature coaxial ClickLoc connector, standard cable (without connector protector)
E: Agency Approval Option 05 CSA, ATEX, IECEx Approvals
Thread Size：3/8-24 UNF
Armor: Without armor
Cable Type: Standard cable (75Ω triaxial, FEP insulated)
Agency Approval: CSA, ATEX, IECEx Approvals (option 05)
Average Scale Factor: 7.87 V/mm (200 mV/mil) ±5% (standard system)
Linear Range: 2 mm (80 mils) – from 0.25 to 2.3 mm (10 to 90 mils)
Recommended Gap for Radial Vibration: -9 Vdc [approx. 1.27 mm (50 mils)]
Nominal Probe DC Resistance (2.0m): 7.88 ± 0.50 Ω
FAQ About 330101-00-12-20-02-05
What is the thread size and type of this probe?
A: This probe has 3/8-24 UNF threads and is supplied without armor. A lock nut (9/16 inch) is supplied with standard mount 8 mm probes.
What is the total length of this probe?
A: The total probe length is 2.0 meters (6.6 feet) .
What is the maximum thread engagement length for 3/8-24 threads?
A: The maximum recommended thread engagement length is 0.563 inches.
