Standard Extension Cable

330130-085-11-05:

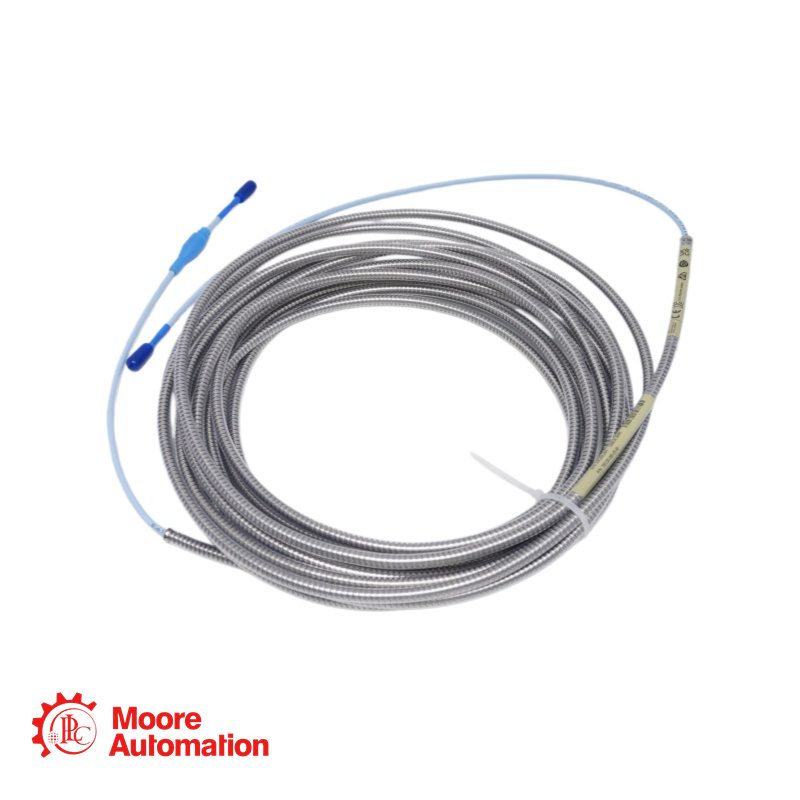

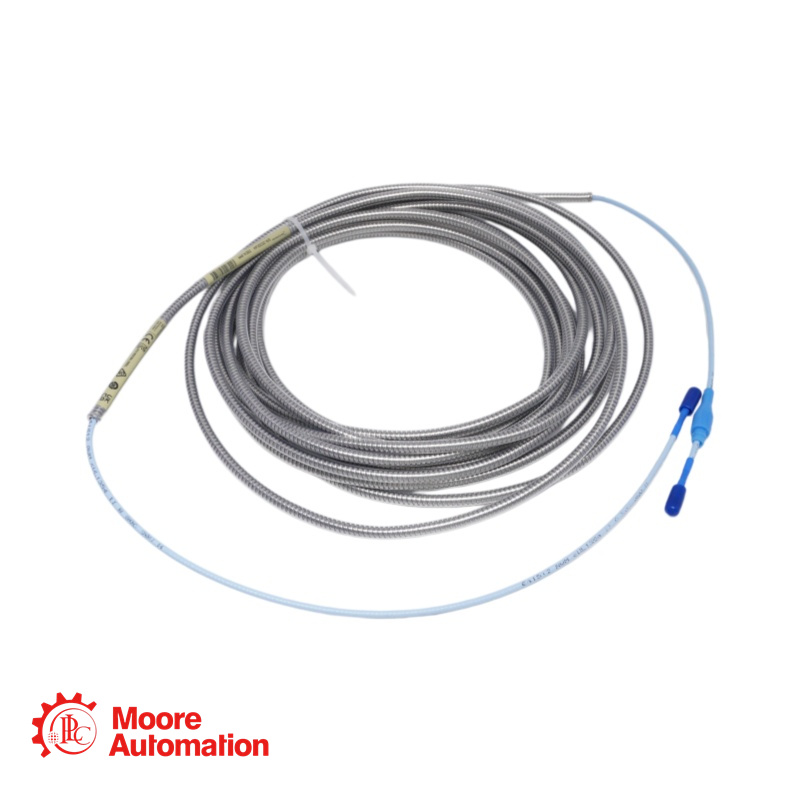

330130-085-11-05 is a 3300 XL Standard Extension Cable for use with the 3300 XL 8 mm Proximity Transducer System. It features an 8.5-meter armored FluidLoc cable and carries full CSA, ATEX, and IECEx hazardous area approvals.

Parameters - 330130-085-11-05

Cable Type:3300 XL Standard Extension Cable
Cable Length:8.5 meters (27.9 feet)
Armor:Yes (Flexible AISI 302/304 SST with FEP outer jacket)
FluidLoc Feature:Yes (Oil-blocking internal construction)
Connector Protector:No (Option 11 excludes connector protector)
Cable Impedance:75 Ω triaxial
Cable Insulation:Fluoroethylene propylene (FEP)
Capacitance:69.9 pF/m (21.3 pF/ft) typical
Operating Temperature:-52°C to +177°C (-62°F to +350°F)
Minimum Bend Radius:25.4 mm (1.0 in)

Application Areas - 330130-085-11-05

Radial Vibration Monitoring: Steam turbines, gas turbines, centrifugal compressors, pumps, and generators.
Keyphasor (Phase Reference/Speed) Measurement
Industry Compliance & Environment: Machinery Protection Systems in the Oil & Gas, Petrochemical, and Power Generation industries.

Important Cautions - 330130-085-11-05

For 5-Meter System: Use a 4.5-meter extension cable (P/N 330130-045-...).
Without FluidLoc: To order the same length and armor without the FluidLoc feature, change option BB to 01 (Armored cable only). Part number: 330130-085-01-05.
With Connector Protector: To add a connector protector to this configuration, change option BB to 13. Part number: 330130-085-13-05.
Imperial System Note: Extension cables are common to both metric and imperial probe systems. The same 330130 cable works with both M10 x 1 probes (330104) and 3/8-24 UNF probes (330102).
