Description - Proximity Probe

330171-00-20-10-02-05

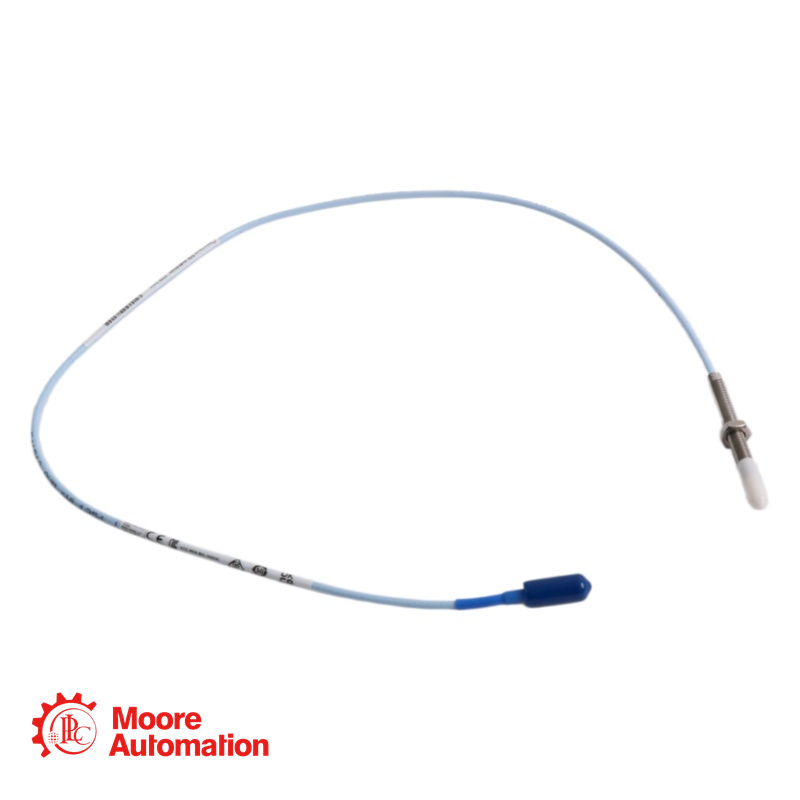

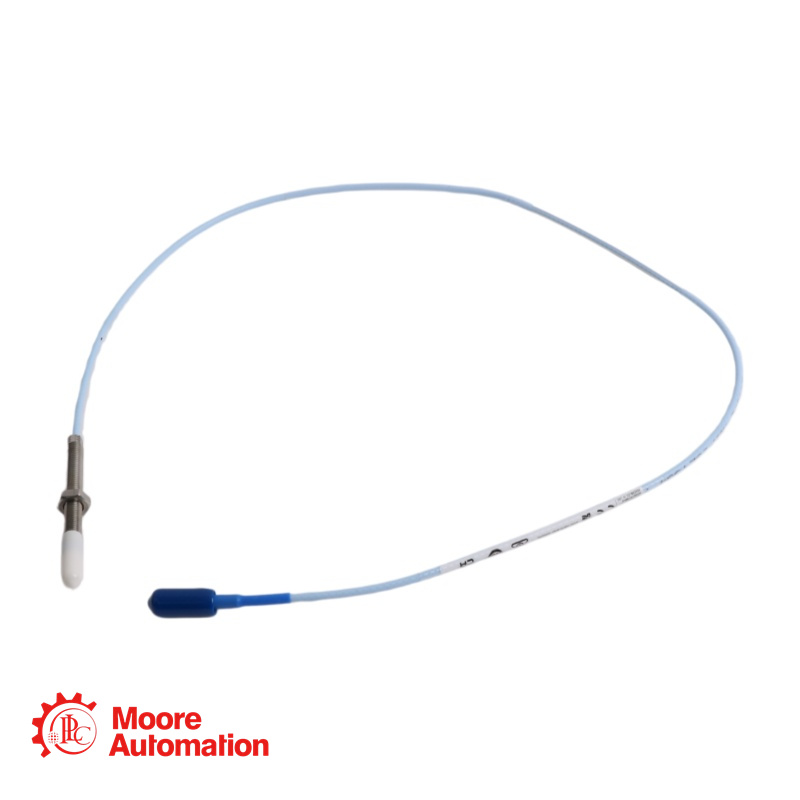

3300 5 mm Proximity Probe, 1/4-28 UNF thread, without armor, 0.0 in unthreaded length, 2.0 in case length, 1.0 m total length, miniature coaxial ClickLoc connector with standard cable (no connector protector), multiple agency approvals (CSA, ATEX, IECEx).

Parameter - Proximity Probe

330171-00-20-10-02-05

Digital Outputs:Up to 64 outputs
Output Activation Speed:< 4 ms (for Form-A trip-rated outputs)
Input Voltage Range:24-250 V DC / 24-250 V AC
Output Contact Rating:7A @ 250V AC/DC
Communication Protocol:Internal UR Bus
Configuration Software:EnerVista UR
Operating Temperature:-40°C to +70°C (-40°F to +158°F)
Storage Temperature:-40°C to +85°C (-40°F to +185°F)
Humidity:5% to 95% non-condensing

FAQ - Universal Relay

330171-00-20-10-02-05

Q: Can this 330171-00-20-10-02-05 probe be used in a hazardous area?
A: Yes. With option 05, it carries CSA, ATEX, IECEx approvals. Suitable for:
Zone 0, 1, 2 (Gas) and Zone 20, 21, 22 (Dust) when used with proper barrier or isolator per drawing 141092 or 140979.

Q: What is the difference between 02 and 01 connector options?
A:
01 = with connector protector (better environmental sealing)
02 = without connector protector (smaller diameter for tight conduit)
Recommendation: Use 01 for turbine oil environments. Use 02 only if physical space restricts.

Q: Can I use 330171-00-20-10-02-05 with an XL Proximitor Sensor?
A: Yes, but performance will be limited to non-XL 3300 system specifications. For full XL performance, use an XL 8 mm probe (e.g., 3300 XL 8 mm).

Q: What is the minimum shaft diameter for accurate measurement?
A: Recommended minimum: 76.2 mm (3 in).
Below this, scale factor may change. Consult Performance Spec 155687.

Q: Does the 5 mm probe reduce side-view clearance compared to 8 mm?
A: No. The 5 mm probe does not reduce side-view clearance or tip-to-tip spacing. Use 3300 XL NSv probe for narrow side-view applications.

Model Comparison - Universal Relay

Parameter

330171-00-20-10-02-05

330172 (with armor)

330173 (M8x1, no armor)

330174 (M8x1, with armor)

Thread

1/4-28 UNF

1/4-28 UNF

M8 x 1

M8 x 1

Armor

No

Yes

No

Yes

Unthreaded Length

0.0 in

0.0 in

0 mm

0 mm

Case Length

2.0 in

2.0 in

60 mm

60 mm

Total Cable Length

1.0 m

1.0 m

1.0 m

1.0 m

Connector

ClickLoc, std cable

ClickLoc, std cable

ClickLoc, std cable

ClickLoc, std cable

Approvals

Multiple (05)

Multiple (05)

Multiple (05)

Multiple (05)

Best Use Case

Non-abrasive, clean env.

Abrasive / high-wear

Metric mounting

Metric + armor
