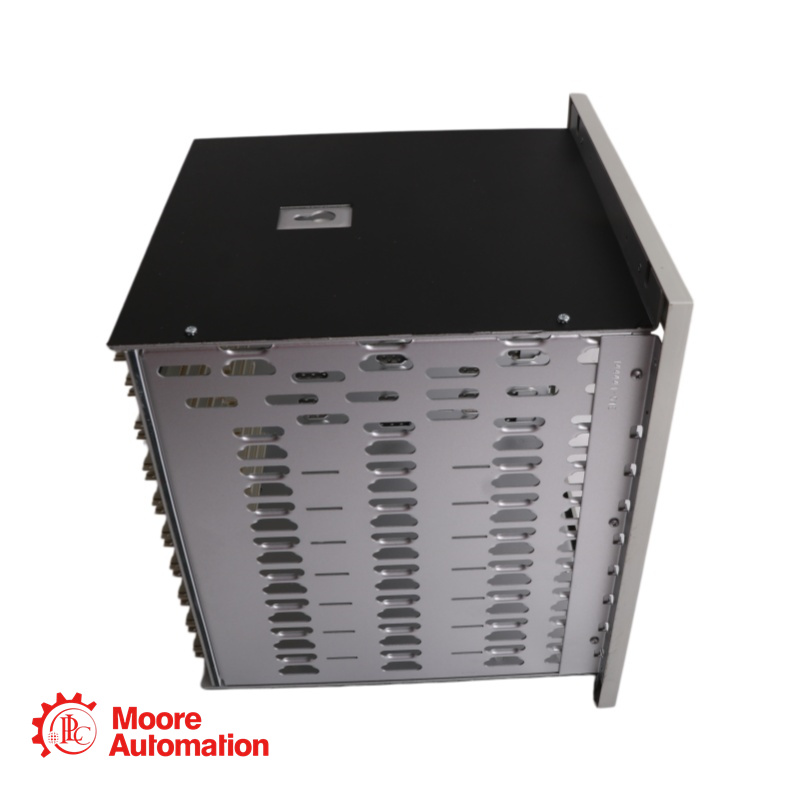

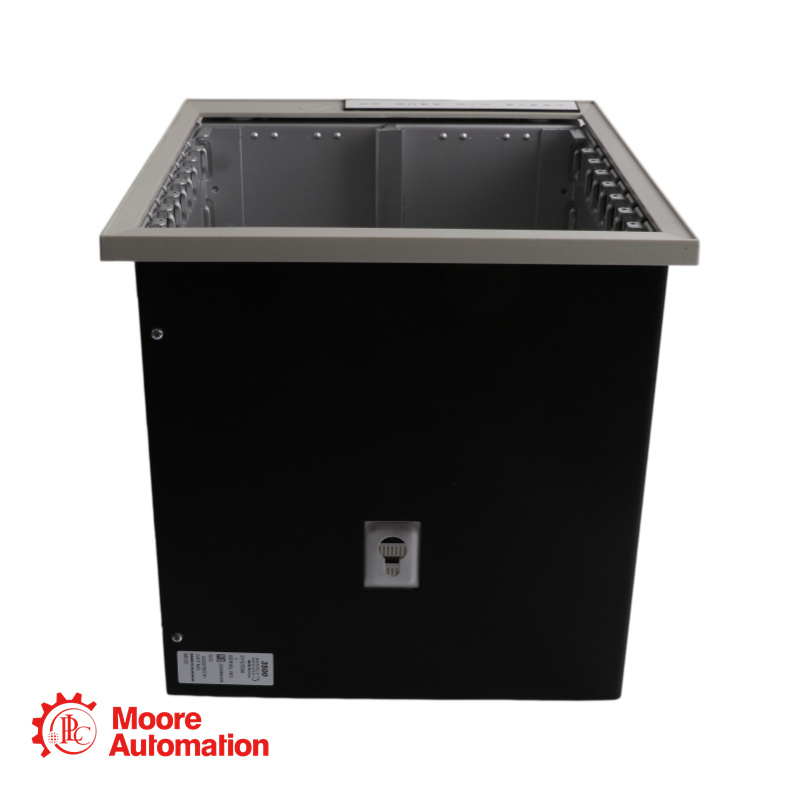

3500/05-02-05-00-00-00 - BENTLY NEVADA 3500/05 System Rack

BENTLY NEVADA 3500/05-02-05-00-00-00 3500/05 System Rack

Sales Manager: Frida

Email: sales5@mooreplc.com

Use the 3500 System rack to mount all 3500 monitor modules and power supplies.  The rack allows you to place 3500 modules near one another, enabling them to easily communicate, and to mount power supplies necessary to distribute power to each module.

3500/05-AA-BB-CC-DD-EE
A: Rack Size: 02 12-inch Mini-Rack (7 module slots)
B: Mounting Options: 05 Rack Mount Option, Mini-Rack
C: Agency Approval Option: 00 None
D: Reserved: 00 None
E: European Compliance Option: 00 None

Q: How many modules does the 3500/05-02-05-00-00-00 accommodate?
A: This 12-inch mini-rack holds up to 7 modules, which includes power supplies, a Transient Data Interface (TDI), and other 3500 series monitoring modules.

Q: What is the designated mounting option for this model?
A: The "-05" designation indicates it is configured for Rack-Mount installation, ideal for standard EIA mini-rack configurations.

Q: Are power supplies and I/O modules installed in specific locations?
A: Yes. Power supplies and the interface module (TDI) must occupy the left-most slots of the rack. The remaining slots are reserved for I/O and monitor modules.
