/86691-00680-0350-90-05 Vibration Probe / Bently Nevada
86691-00680-0350-90-05
86691-00680-0350-90-05
86691-00680-0350-90-05

86691-00680-0350-90-05 Vibration Probe / Bently Nevada

86691-00680-0350-90-05 represents a customized Bently Nevada 3300 XL series Eddy Current Proximity Probe
  • Marca :

    Bently Nevada
  • Numero parte :

    86691-00680-0350-90-05
  • Il peso :

    1.2 kg
  • Dimensione :

    1.2x1x124cm
  • Paese d'origine :

    USA
  • Codice SA :

    8537101190
  • Descrizione :

    Vibration Probe

Bently Nevada 86691-00680-0350-90-05 Vibration Probe

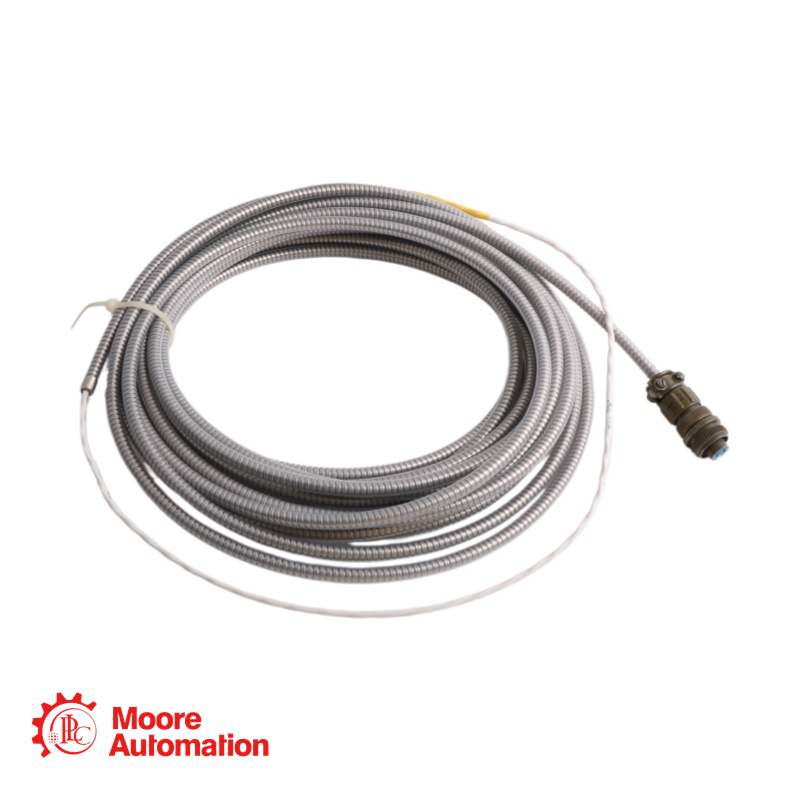

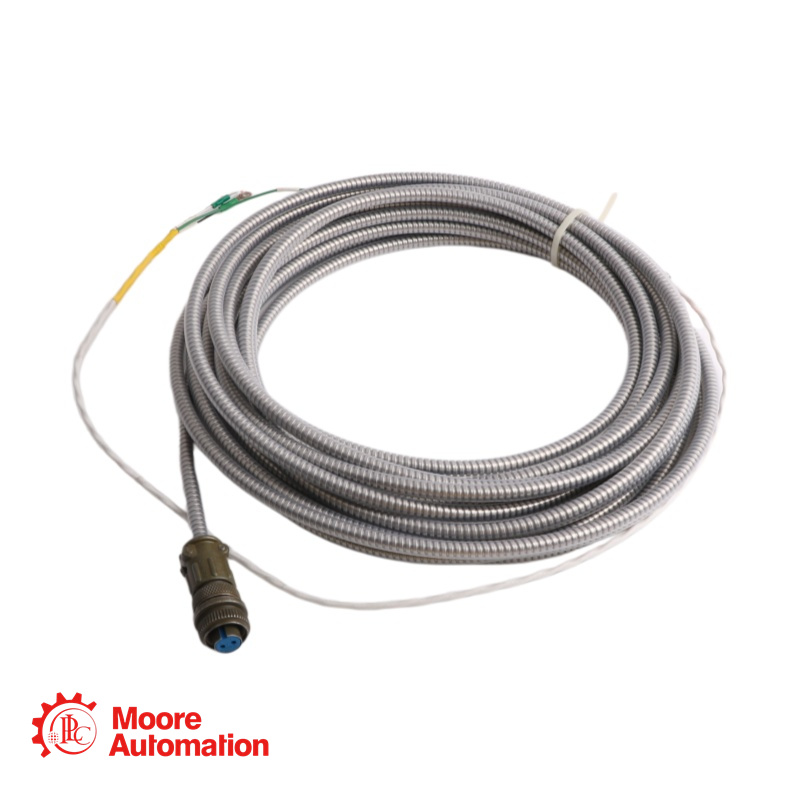

The part number 86691-00680-0350-90-05 represents a customized Bently Nevada 3300 XL series Eddy Current Proximity Probe.


86691 (Base Model): 3300 XL series customized heavy-duty proximity probe.

00680 (Unthreaded Length): Identifies a 68.0 mm unthreaded smooth tip portion.

0350 (Case Length): Specifies an overall threaded body length of 350 mm.

90 (Cable Option): Indicates the cable comes with integrated Stainless Steel Armor for mechanical protection.

05 (Total Length): Designates a 0.5-meter integral pigtail cable length.



Get Best Price - Please Contact Frida

Phone/Whatsapp: +86 15359408275


Email: sales5@mooreplc.com



Bently Nevada 86691-00680-0350-90-05 FAQ

Does this probe require a matching extension cable?

Yes.

What is the standard target Gap Voltage when installing this probe?

When installing and mechanically positioning the probe in the field, the standard DC gap voltage should typically be adjusted to approximately -10.0 VDC (the mid-point of the linear range) using a digital multimeter.


Product Series: Bently Nevada 3300 XL Proximity Transducer System

The 3300 XL 25 mm Transducer System consists of a separate 25 mm probe, an extension cable, and a 3300 XL 25 mm Proximitor Sensor.  The 0.787 V/mm (20 mV/mil) output gives this system a linear range of 12.7 mm (500 mils).  Based on this linear range, the 3300 XL 25 mm Transducer System is suitable for measuring differential expansion (DE) on midsize to large steam turbine generators caused by the difference in growth rates between the turbine rotor and the machine stator (casing).
