ABB ↗ABB DRIVES · RESOLVER INTERFACE MODULE

RESOLVER INTERFACE MODULE

RRIA-01 3ABD68486408

ABB resolver interface module reference

RRIA-01 provides an analogue resolver connection for accurate motor-shaft speed or position feedback. Confirm the complete order code and supported ACS800 application program before replacement.

PRODUCT ROLE

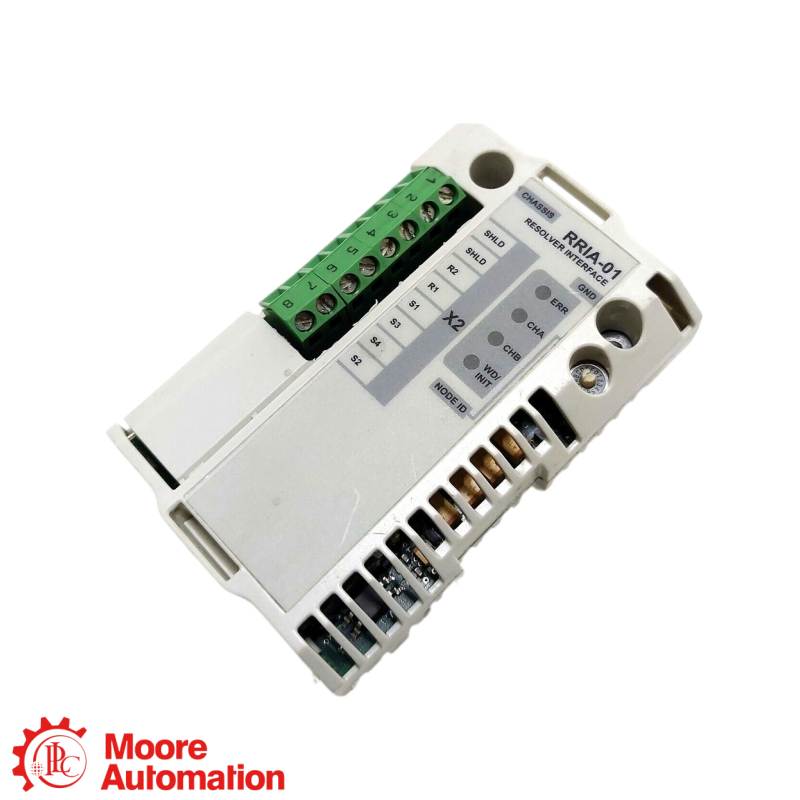

RRIA-01 3ABD68486408 is an ABB Resolver Interface module for analogue resolver feedback in compatible ACS800 drive applications.

CONFIGURATION NOTE

Confirm model RRIA-01 3ABD68486408, ACS800 application program, option-slot or AIMA-01 mounting, node ID, resolver wiring and excitation-frequency setting before installation.

👩‍💼

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275

ABB OFFICIAL TECHNICAL DATA

Technical Specifications

ABB PRODUCT REFERENCE ↗

General Information−

BrandABB

ModelRRIA-01 3ABD68486408

Order code3ABD68486408

Product typeResolver Interface Module

Official manual3AFE68570760 Rev B

Compatible systemSupported ACS800 application programs

Official Technical Data+

ManufacturerABB

Module modelRRIA-01

Resolver interface12 Vpp output and 8 Vpp inputs at 10 or 20 kHz

Connectors38-pin parallel bus and 8-pole screw terminal block

Compatibility and Settings+

Application programVerify the supported ACS800 application program and version

MountingRMIO option slot 1 or 2, or external AIMA-01 adapter

Excitation frequency10 or 20 kHz selected by DIP switch

Node ID16 to 31 when mounted on AIMA-01; default 16

Installation and Wiring Check+

SafetyIsolate the drive and allow the DC-link capacitors to discharge before work

Resolver cableUse shielded 4 × (2+1) twisted pairs, 0.5 to 1.0 mm²

Maximum cable length100 m

Final checkVerify order code, mounting, node ID, wiring, pole pairs and frequency settings

Module Specifications+

Degree of protectionIP20

Power consumption180 mA at 5 V plus 80 mA at 24 V

Position resolution0.024% (12 bits)

IsolationResolver interface isolated from logic and earth; 1.5 kV AC test voltage

Source: ABB RRIA-01 Resolver Interface Module User’s Manual, document 3AFE68570760 Rev B.

FAQ

Questions Buyers Ask Most

What does RRIA-01 3ABD68486408 do in an ACS800 drive?+

RRIA-01 3ABD68486408 is a Resolver Interface module that connects an analogue resolver to a compatible ACS800 drive for motor-shaft speed or position feedback.

Which ACS800 software must be checked before RRIA-01 3ABD68486408 is installed?+

RRIA-01 3ABD68486408 must be matched to a supported ACS800 application program and version. Verify the drive firmware documentation before mounting or parameterizing the module.

Where can RRIA-01 3ABD68486408 be mounted?+

RRIA-01 3ABD68486408 mounts in RMIO option slot 1 or 2, or on an external AIMA-01 I/O Module Adapter. Verify the selected mounting method and node ID requirements.

Which resolver signals does RRIA-01 3ABD68486408 use?+

RRIA-01 3ABD68486408 provides excitation outputs R1/R2 plus cosine inputs S1/S3 and sine inputs S4/S2 through its 8-pole resolver terminal block.

What cable limits apply to RRIA-01 3ABD68486408?+

RRIA-01 3ABD68486408 uses shielded 4 × (2+1) twisted-pair resolver cable with 0.5 to 1.0 mm² conductors and a maximum length of 100 m.

What should be supplied when requesting RRIA-01 3ABD68486408?+

A useful RRIA-01 3ABD68486408 inquiry includes quantity, complete label photos, ACS800 type, application-program version, mounting method, node ID, resolver data, wiring and excitation-frequency settings.

CONTACT PRODUCT SPECIALIST

Confirm your RRIA-01 3ABD68486408 application with Frida

Confirm RRIA-01, order code 3ABD68486408, compatible ACS800 application program, mounting method, resolver wiring, node ID and excitation-frequency setting before installation.

CHOOSE A DIRECT CONTACT METHOD

✉ sales5@mooreplc.com ◉ +86 153 5940 8275

OFFICIAL DATASHEET

Product Information for RRIA-01 3ABD68486408

Official ABB documentation for the RRIA-01 3ABD68486408 Resolver Interface Module.

Official datasheet status

ABB’s RRIA-01 user’s manual documents installation, wiring, compatibility and technical data for this Resolver Interface Module. Verify the complete order code and installed ACS800 application before use.

VIEW ABB MANUAL

Contact to Get Support

Send the complete order code, quantity, ACS800 type, application-program version, mounting method, resolver details and your technical or purchasing question.

✉ EMAILsales5@mooreplc.com ◉ WHATSAPP+86 153 5940 8275

Technical statements on this page are limited to ABB manufacturer-reference documentation. No third-party product sources were used.

MODEL IDENTIFICATION

How the RRIA-01 3ABD68486408 module should be verified

ABB ↗ is the manufacturer. RRIA-01 identifies the Resolver Interface Module; 3ABD68486408 is the supplied order code and must be matched to the installed ACS800 configuration.

BRAND / PLATFORMABB Drives · Resolver Interface Module

→

COMPLETE MODELRRIA-01 3ABD68486408

→

CONFIGURATION / SYSTEMSupported ACS800 application program and module configuration

Drive Application

Record the ACS800 type, application-program version, option slot or AIMA-01 mounting and node ID.

Resolver Wiring

Record R1/R2 excitation, S1/S3 cosine and S4/S2 sine connections, shielding and cable routing.

Module Settings

Record resolver pole pairs, 10 or 20 kHz excitation selection and drive parameters.

Replacement Limit

Do not select a substitute until the complete order code, drive program, mounting, wiring and settings are verified.

VERIFICATION EVIDENCE

Evidence needed to install RRIA-01 3ABD68486408 correctly

Product Identity

Match RRIA-01 and order code 3ABD68486408 to the complete module label and installed drive record.

Installation Context

Document the RMIO option slot or AIMA-01 mounting, node ID, resolver cable and terminal connections.

PRODUCT REFERENCERRIA-01 3ABD68486408RRIA-01 · 3ABD68486408

Verification Evidence

Use ABB manual 3AFE68570760, the complete module label, ACS800 documentation and installation records.

Replacement Check

Match the order code, supported drive program, mounting method, resolver wiring, node ID and switch settings before replacement.
