Product Overview

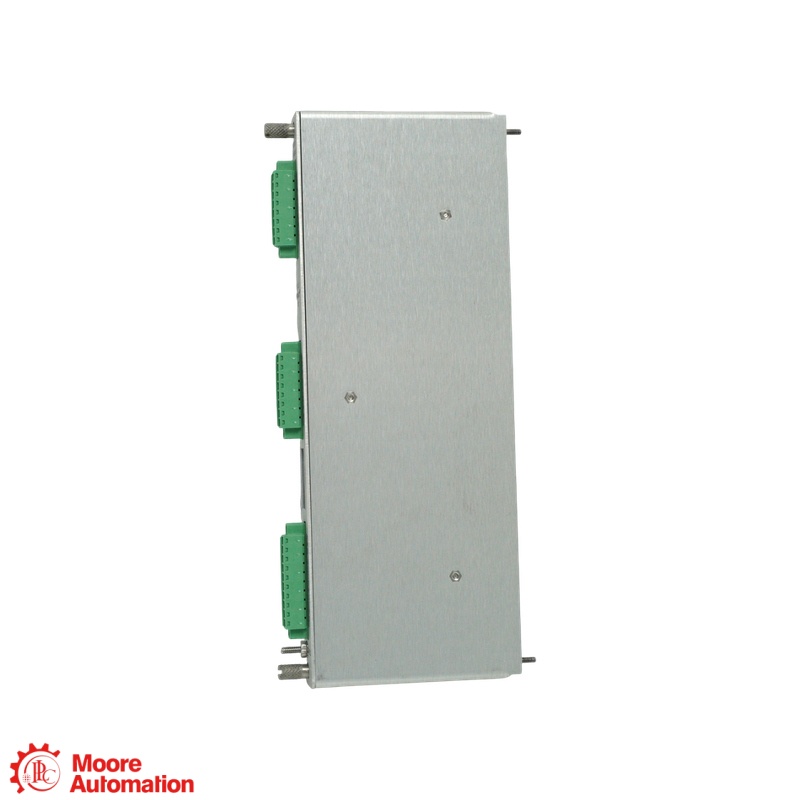

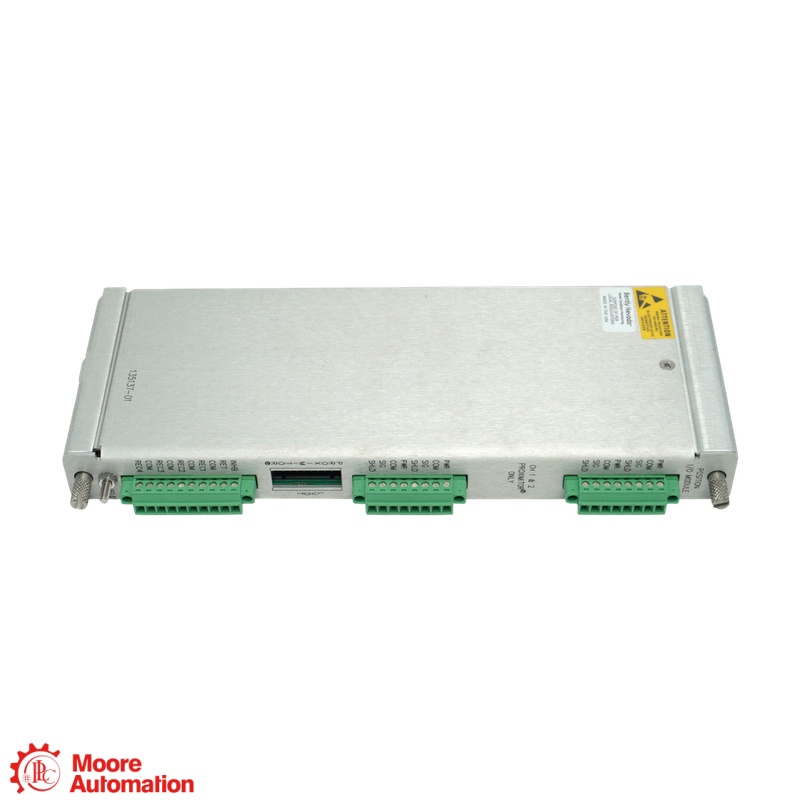

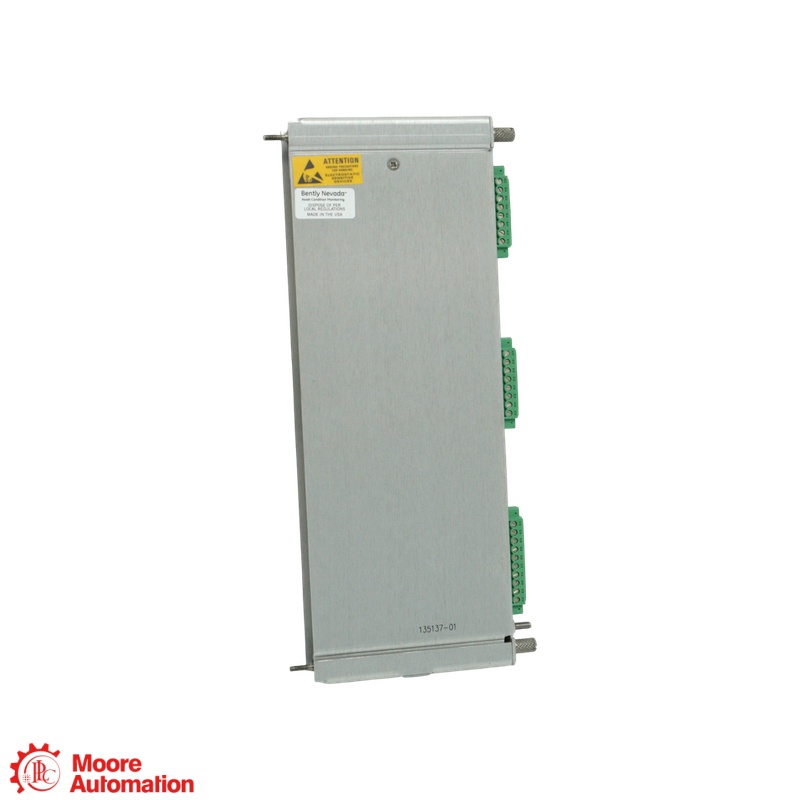

The Bently Nevada 135145-01 is a Position I/O Module for the 3500/45 Position Monitor. It provides an external-termination interface for Proximitor sensors, Rotary Position Transducers (RPTs), and DC LVDTs. In a 3500/45 system, these inputs support machinery position measurements such as thrust position and differential expansion, depending on the selected transducer and monitor configuration. The module is the I/O interface—not the position monitor or the transducer itself.

Technical Specifications

Parameter	Value
Part number	135145-01
Product type	Position I/O Module with External Terminations
Associated monitor	Bently Nevada 3500/45 Position Monitor
Supported transducer inputs	Proximitor, RPT, DC LVDT
Rack space	One full-height rear slot
System input impedance	10 kΩ for Proximitor or RPT; 1 MΩ for DC LVDT
System transducer supply	−24 Vdc for Proximitor or RPT; +15 Vdc for DC LVDT
Operating temperature with this I/O type	−30°C to +65°C

Model Benefits

• External-termination format: Provides the 3500/45 Position I/O option intended for external termination connections.
• Multiple supported transducer types: Works with the specified Proximitor, RPT, or DC LVDT input arrangements.
• Application flexibility: The associated 3500/45 monitor supports several position measurements, including thrust position and differential expansion.
• Clear model distinction: Unlike 135137-01, which the manufacturer lists with internal terminations, 135145-01 is the external-termination version.

Frequently Asked Questions

Question	Answer
1. Which transducer types does 135145-01 support?	Baker Hughes lists it for Proximitor sensors, Rotary Position Transducers (RPTs), and DC LVDTs.
2. Does 135145-01 support AC LVDT inputs?	No. The manufacturer lists separate AC LVDT Position I/O modules for the 3500/45.
3. What is the difference between 135145-01 and 135137-01?	Both are listed for Proximitor, RPT, or DC LVDT inputs. 135145-01 uses external terminations; 135137-01 uses internal terminations.
4. Which position measurements can a 3500/45 system perform with suitable inputs?	The monitor supports functions including thrust position and differential expansion. The available measurement depends on the configured transducer input.

Industries Served

• Oil & Gas: Supports position measurements on monitored compressors, turbines, and other critical rotating equipment.
• Power Generation: Used in 3500/45 monitoring arrangements for turbine shaft position and differential expansion.
• Petrochemical Processing: Provides the position-input interface for machinery monitoring across continuous-process plants.
• Industrial Manufacturing: Supports position monitoring on rotating assets where shaft movement or machine expansion is tracked.
