Marca :
Bently NevadaNumero parte :
200350-02-00-00Il peso :
0.06kgDimensione :
2x2x4.6cmPaese d'origine :
USACodice SA :
8537101190Descrizione :
Accelerometer
PRODUCT AT A GLANCE

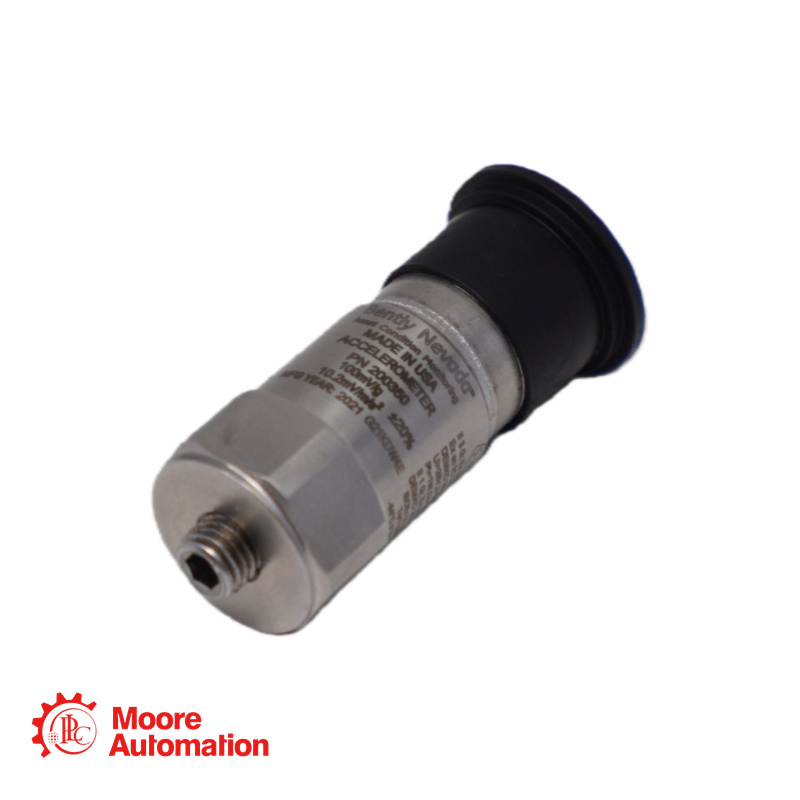

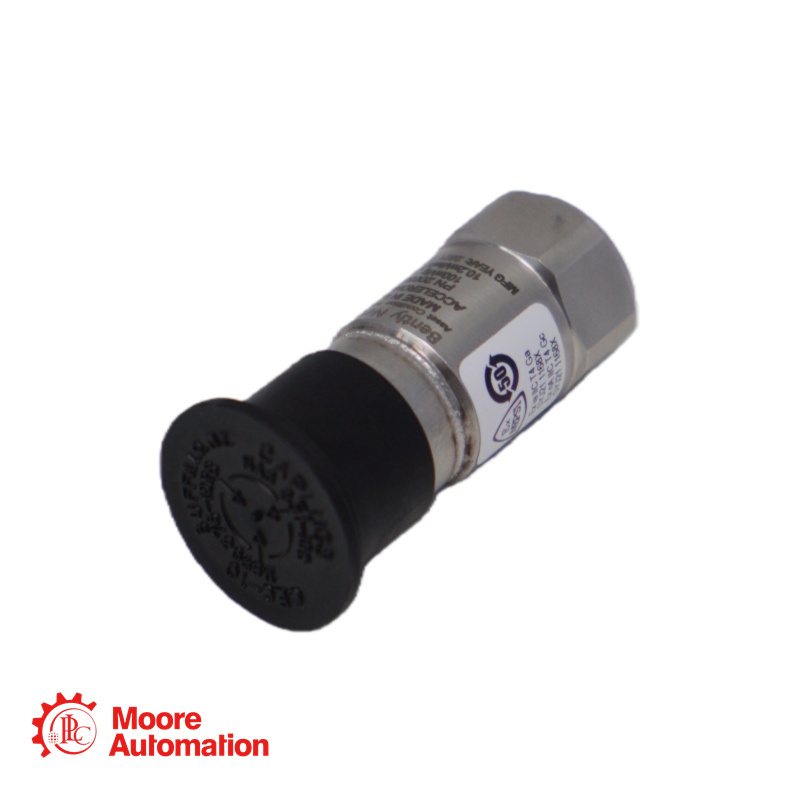

The 200350-02-00-00 is a general-purpose, case-mounted seismic accelerometer designed for use with Trendmaster Pro Constant Current Direct Input systems. It features a hermetically sealed stainless steel housing, a top-mounted 2-pin MIL-C-5015 connector, and a bottom 1/4-28 threaded mounting hole.
TECHNICAL SPECIFICATIONS
Sensitivity: 100 mV/g ±20% (10.2 mV/(m/s²) ±20%)
Frequency Range (±3 dB): 30 to 600,000 cpm (0.5 to 10,000 Hz)
Measurement Range: ±50 g
Broadband Electrical Noise (1-10 kHz): 350 µg (3,434 µm/s²)
Mounted Resonant Frequency: 1500 kcpm (25 kHz)
Transverse Sensitivity: ≤ 7%
Amplitude Linearity: ±1%
Output Bias Voltage: 8 to 12 VDC
Excitation Voltage: 18 to 28 VDC
Constant Current Excitation: 2 to 20 mA
Settling Time (to within 1% of bias): ≤ 2.0 sec
Output Impedance: < 150 ohms
Discharge Time Constant: ≥ 0.3 sec
Electrical Isolation (Case to Signal): > 10⁸ ohms
Operating Temperature Range: -65°F to +250°F (-54°C to +121°C)
HOW REQUEST A QUOTE FROM US?
Sales Manager: Frida
Phone/Whatsapp/Wechat:+86 15359408275
Email:sales5@mooreplc.com
FREQUENTLY ASKED QUESTIONS
Q:Is this 200350-02-00-00 have warranty?
A:Yes. We offer original new product with one year warranty.
Q:What does the part number "200350-02-00-00" mean?
A:200350: Base model (general-purpose accelerometer).
02: Mounting stud type — “1/4-28 to M8 x 1.25 Stainless Steel adapter.”
00: Sensitivity tolerance — ±20%.
00: No special hazardous area approvals (standard version).
Q:What is the sensitivity and measurement range?
A:Sensitivity: 100 mV/g ±20% (10.2 mV/(m/s²) ±20%).
Measurement range: ±50 g.
Quality & Condition Assurance
Our products are all brand-new with original factory seals.
We also offer a one-year warranty for you.
For the current stock, we can provide you with photos and videos.
For those items that need to be purchased, we can provide you with photos and videos before the shipment.
If any quality issues arise with the product within one year, you can contact our team.
