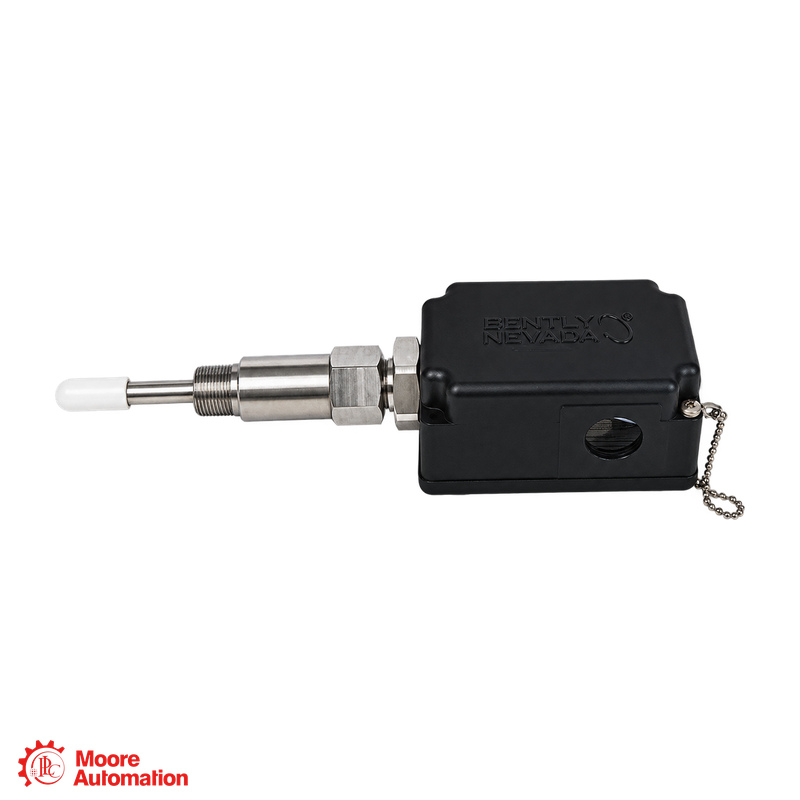

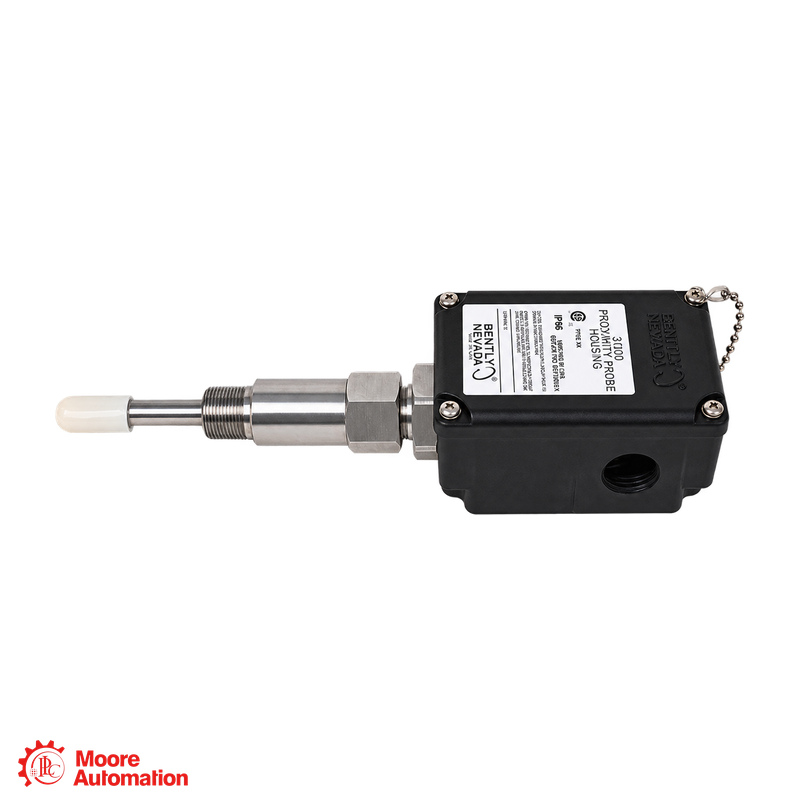

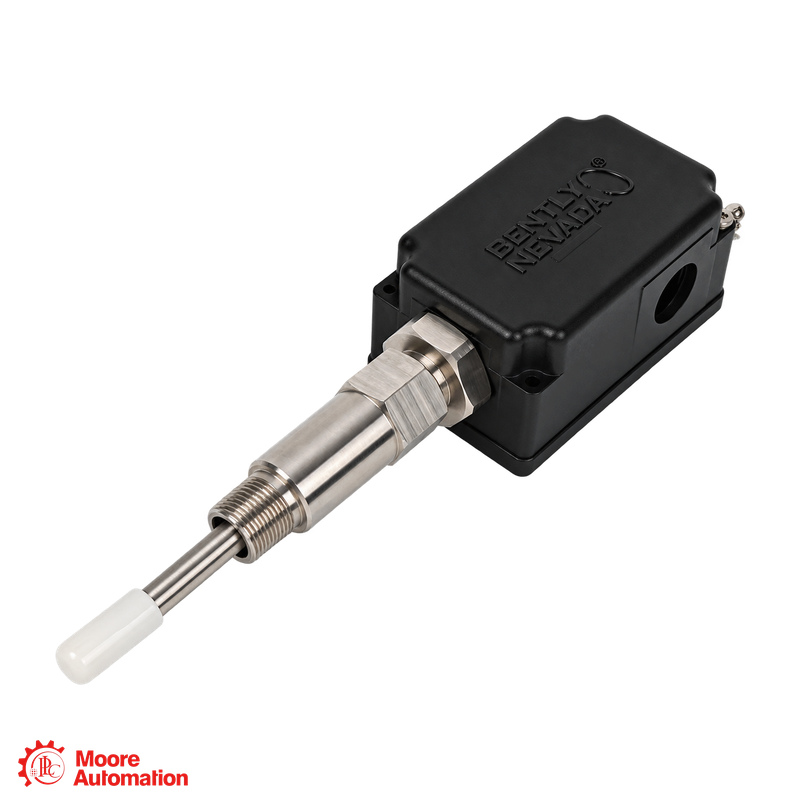

Bently Nevada 31000-30-05-40-014-03-02 Proximity Probe Housing Assembly
Bently Nevada 31000-30-05-40-014-03-02 Proximity Probe Housing Assembly
Bently Nevada 31000-30-05-40-014-03-02 Proximity Probe Housing Assembly

Bently Nevada 31000-30-05-40-014-03-02 Proximity Probe Housing Assembly

31000 SERIES · PROXIMITY PROBE HOUSING

31000-30-05-40-014-03-02

31000-30-05-40-014-03-02 — a Bently Nevada external probe housing assembly with a multiple-approval 3300 XL 8 mm probe with connector protector, 0.5 m probe cable, 4.0 in standoff adapter and 1.4 in probe penetration.

PROBE3300 XL 8 mm
CABLE0.5 m
STANDOFF4.0 in
DEPTH1.4 in
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Informarsi ora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● PROXIMITY PROBE HOUSING
31000 HOUSING ASSEMBLY

31000-30-05-40-014-03-02

3300 XL 8 mm · 0.5 m cable · 1.4 in penetration

Proximity Probe Housing Assembly

EXTERNAL 3300 XL PROBE HOUSING
31000-30-05-40-014-03-02 — A Bently Nevada 31000 housing assembly for external machine-case mounting, configured with a 3300 XL 8 mm probe, 0.5 m cable, 4.0 in standoff and 1.4 in penetration.
CONFIGURATION NOTE
31000 identifies the English proximity probe housing assembly; 30 selects a 3300 XL 8 mm probe with connector protector and multiple approvals; 05 sets a 0.5 m probe cable; 40 specifies a 4.0 in standoff adapter; 014 specifies 1.4 in probe penetration; 03 selects the manufacturer option-03 conduit fitting set; 02 specifies a 3/4-14 NPT mounting thread.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

31000
Housing familyEnglish external proximity probe housing assembly
30
Probe option3300 XL 8 mm probe with connector protector; multiple approvals
05
Probe cable length0.5 m (20 in)
40
Standoff adapter4.0 in
014
Probe penetration1.4 in
03
FittingsOption 03 fittings and cable seal
02
Mounting thread3/4-14 NPT
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗
PROXIMITY PROBE HOUSING ASSEMBLY

Engineering data at a glance

Click “+” to expand more specifications.

PROBE3300 XL 8 mm
CABLE0.5 m
STANDOFF4.0 in
PENETRATION1.4 in
Manufacturer-defined housing configuration.
Configuration note31000 identifies the English proximity probe housing assembly; 30 selects a 3300 XL 8 mm probe with connector protector and multiple approvals; 05 sets a 0.5 m probe cable; 40 specifies a 4.0 in standoff adapter; 014 specifies 1.4 in probe penetration; 03 selects the manufacturer option-03 conduit fitting set; 02 specifies a 3/4-14 NPT mounting thread.
General Information −
BrandBently Nevada
Part number31000-30-05-40-014-03-02
Product typeProximity Probe Housing Assembly
Product family31000
Housing bodyGlass-reinforced PPS
Probe cable0.5 m (20 in)
Housing Configuration ＋
Probe option3300 XL 8 mm with connector protector; multiple approvals
Probe cable length0.5 m (20 in)
Standoff adapter4.0 in
Probe penetration1.4 in
Conduit fittingsTwo plugs, fitting, reducer and cable seal (option 03)
Mounting thread3/4-14 NPT
Environmental and Mechanical ＋
Housing materialGlass-reinforced PPS
Sleeve and chainAISI 304 stainless steel
Outer sleeve and screwsAISI 303 stainless steel
Housing protectionType 4X / IP66
Probe operating range-51 to +177 °C
FAQ

Questions Buyers Ask Most

What configuration does 31000-30-05-40-014-03-02 specify?＋

31000-30-05-40-014-03-02 combines a 31000 English housing with option 30 for a multiple-approval 3300 XL 8 mm probe with connector protector, option 05 for a 0.5 m cable, option 40 for a 4.0 in standoff and option 014 for 1.4 in probe penetration. Options 03 and 02 define fittings and mounting thread.

Which probe and cable are included with 31000-30-05-40-014-03-02?＋

31000-30-05-40-014-03-02 includes a multiple-approval 3300 XL 8 mm probe with connector protector and a 0.5 m probe cable. The housing provides external access to the installed probe and extension cable; the matching proximity transducer system must be selected for the machine.

What protection and temperature data apply to 31000-30-05-40-014-03-02?＋

31000-30-05-40-014-03-02 uses a glass-reinforced PPS housing rated Type 4X and IP66. The selected 3300 XL 8 mm probe has a stated operating and storage range of -51 to +177 °C. The housing provides mechanical protection and is not explosion-proof.

How does 31000-30-05-40-014-03-02 mount at the machine case?＋

31000-30-05-40-014-03-02 uses a 3/4-14 NPT mounting thread with a 4.0 in standoff adapter and 1.4 in probe penetration. Fittings option 03 supplies two plugs, one 3/4-14 NPT fitting, one 3/4-14-to-1/2-14 NPT stainless reducer, and a cable-seal grip with grommets; installation must follow the manufacturer housing instructions.

Which measurement roles suit 31000-30-05-40-014-03-02?＋

The complete 31000-30-05-40-014-03-02 housing assembly is intended for proximity probes mounted through the machine case, especially radial vibration or Keyphasor measurements. Baker Hughes recommends the 21022 housing instead for dual-probe axial-position measurement.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete 31000-30-05-40-014-03-02 label, required machine-case penetration, mounting thread, cable routing, quantity and installed transducer-system details with Frida.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
31000-30-05-40-014-03-02

The Bently Nevada 31000 and 32000 housing datasheet defines the 31000 base and all ordering fields used in 31000-30-05-40-014-03-02.

Official manufacturer datasheet

Bently Nevada Datasheet 141610 defines the 31000 external proximity probe housing and the probe, cable, standoff, penetration, fitting and mounting-thread options in 31000-30-05-40-014-03-02.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements and ordering-code meanings use the linked Bently Nevada manufacturer datasheet.

PROXIMITY PROBE HOUSING SYSTEM CONTEXT

How 31000-30-05-40-014-03-02 Fits into a Machinery Monitoring System

Bently Nevada is the manufacturer. 31000-30-05-40-014-03-02 is a 31000 external housing assembly for a 3300 XL 8 mm proximity probe mounted through the machine case. It provides access to the probe and extension cable for gap adjustment or probe replacement without machine disassembly.

Bently Nevada · BRAND
Bently Nevada 31000 SeriesPRODUCT FAMILY · PROBE HOUSING ASSEMBLY
PROBE OPTION

3300 XL 8 mm

Code 30 selects a 3300 XL 8 mm probe with connector protector and multiple approvals.

PROBE CABLE

0.5 m

Code 05 selects the 0.5 m probe cable.

MOUNTING THREAD

3/4-14 NPT

Code 02 specifies the 3/4-14 NPT housing mounting thread.

System relationship: the 31000 housing supports a probe mounted through the machine case; a compatible extension cable and Proximitor Sensor complete the proximity transducer system for the intended measurement.
APPLICATION AREAS

Functions and application roles for 31000-30-05-40-014-03-02

Radial VibrationSupports a proximity probe mounted through the machine case for radial shaft-vibration measurement.
Keyphasor MeasurementCan house a radially mounted probe used for Keyphasor measurements.
APPLICATION CENTER 31000-30-05-40-014-03-02 31000 Proximity Probe Housing Assembly
External Probe AccessAllows access to the installed probe and extension cable for gap adjustment or replacement.
Machine-Case MountingUses the selected 3/4-14 NPT thread and 4.0 in standoff adapter at the machine case.
