Product Overview

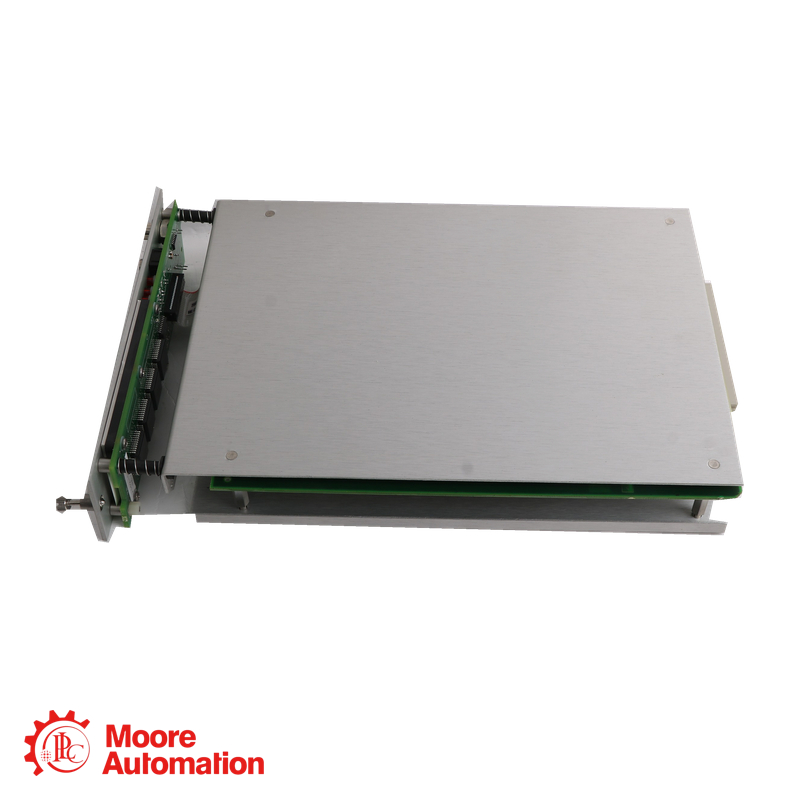

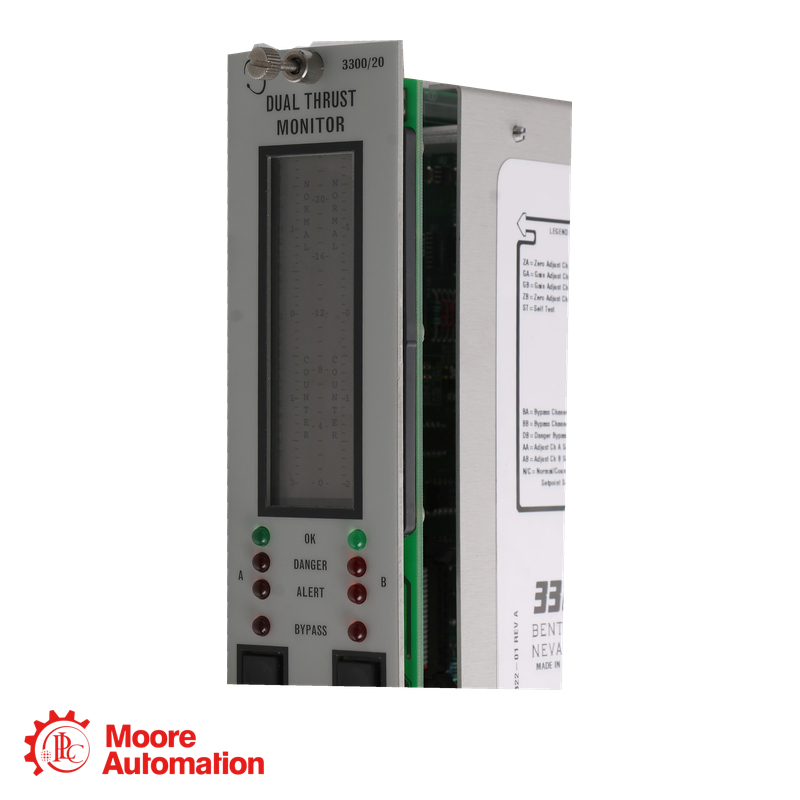

The Bently Nevada 3300/20-13-03-01-00-00 is a dual thrust position monitor for machinery equipped with a 3300 monitoring system. It continuously tracks two independent channels of shaft axial position, allowing movement to be evaluated against the machine’s available axial clearance. This configuration has a full-scale range of 2.0-0-2.0 mm. Its input is designed for a 7200 Series 14 mm or 3300 HTPS Proximitor system with a sensitivity of 100 mV/mil. The monitor also provides epoxy-sealed alarm relays, adjustable Alert and Danger setpoints, independent recorder outputs and field-programmable alarm voting.

Order Number Breakdown
3300/20 — Dual Thrust Position Monitor
13 — 2.0-0-2.0 mm full-scale range
03 — 7200 Series 14 mm or 3300 HTPS Proximitor systems; 100 mV/mil sensitivity
01 — Epoxy-sealed alarm relay option
00 — Agency approval not required
00 — No safety barrier

Technical Information

Parameter	Value
Manufacturer	Bently Nevada
Product Line	3300 System
Ordering Number	3300/20-13-03-01-00-00
Product Type	Dual Thrust Position Monitor
Measurement Channels	2 independent channels
Measured Variable	Shaft axial position relative to machine axial clearance
Full-Scale Range	2.0-0-2.0 mm
Accepted Signal Inputs	One or two proximity-probe signals
Compatible Proximitor Systems	7200 Series 14 mm or 3300 HTPS
Nominal Power Consumption	1.5 W
Alarm Setpoint Range	0–100% of full scale
Alarm Repeatability	Within 0.39% of full scale
Normal Thrust Direction	Toward or away from probe, programmable by channel
Recorder Output Options	+4–20 mA, +1–5 VDC or 0 to −10 VDC
Recorder Output Quantity	One independent output per channel
Voltage Output Impedance	100 Ω
Minimum Voltage Output Load	10 kΩ
4–20 mA Output Load	0–600 Ω
Buffered Transducer Outputs	One front coaxial output and one rear terminal output per channel
Transducer Supply Voltage	−24 VDC or −18 VDC, field-programmable
Display Resolution	Within ±1.6% of monitor full scale
Operating Temperature	0°C to +65°C
Storage Temperature	−40°C to +85°C
Relative Humidity	Up to 95%, non-condensing

Benefits&Features

• Measures two independent thrust position channels continuously
• Provides a 2.0-0-2.0 mm full-scale measurement range
• Accepts one or two proximity-probe signal inputs
• Supports 7200 Series 14 mm and 3300 HTPS Proximitor systems
• Provides adjustable bi-directional Alert and Danger alarms
• Supports field-programmable AND or OR Danger relay voting
• Includes an independent recorder output for each channel
• Displays channel position, probe gap and monitor status locally

Application Areas

-Axial shaft position monitoring in turbine supervisory instrumentation systems
- Thrust bearing monitoring on steam and gas turbines
-Machinery protection for compressors and other critical rotating equipment
-Monitoring shaft movement relative to thrust bearing clearance
-Dual-channel thrust measurement in Bently Nevada 3300 racks

Main brands

No.	Brand	Main Product Lines
1	ABB	DSQC Series industrial robot parts; Bailey INFI 90; DCS
2	Honeywell	51 Series; MU Series; MC Series; TC Series; CC Series
3	General Electric (GE)	IC693 Series; IC697 Series; IC695 Series; DS200 Series
4	PLC	1756 Series; 1747 Series; 1746 Series
5	Schneider Electric	140 Series
6	Bently Nevada	3500 Series; 3300 Series; 330180 cables
7	Foxboro	FBM203; FBM204; FBM217; FBM231; FCP240; FCP270
8	Westinghouse	1C Series; 5X Series
9	Triconex	3008; 3511; 3625; 3664; 3721; 3700A
10	Siemens	6DD Series; 6DP Series; 6ES5 Series; 6DR Series; 6GK Series

Frequently Asked Questions

1. What is the measurement range of the 3300/20-13-03-01-00-00?
The “13” option provides a 2.0-0-2.0 mm full-scale range. This metric range should be confirmed against the required shaft movement and probe setup before ordering.

2. How many measurement channels does the monitor provide?
The 3300/20-13-03-01-00-00 provides two independent thrust position channels. Both channels can monitor probes observing the same shaft or thrust collar.

3. Does this monitor support AND voting?
Yes. The Danger relay can be field-programmed for AND or OR voting. Bently Nevada recommends two probes with AND voting for thrust position applications because both channels must reach the alarm condition before the relay actuates.
