Bensamente Nevada

 /Bently Nevada 330101-00-66-20-02-00 3300 XL 8 mm Proximity Probe

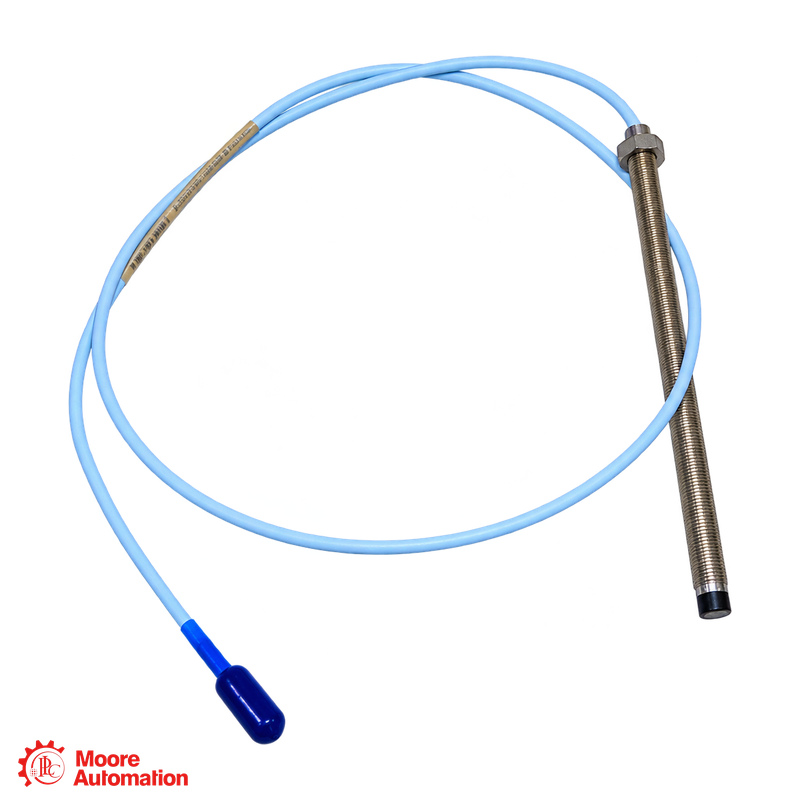

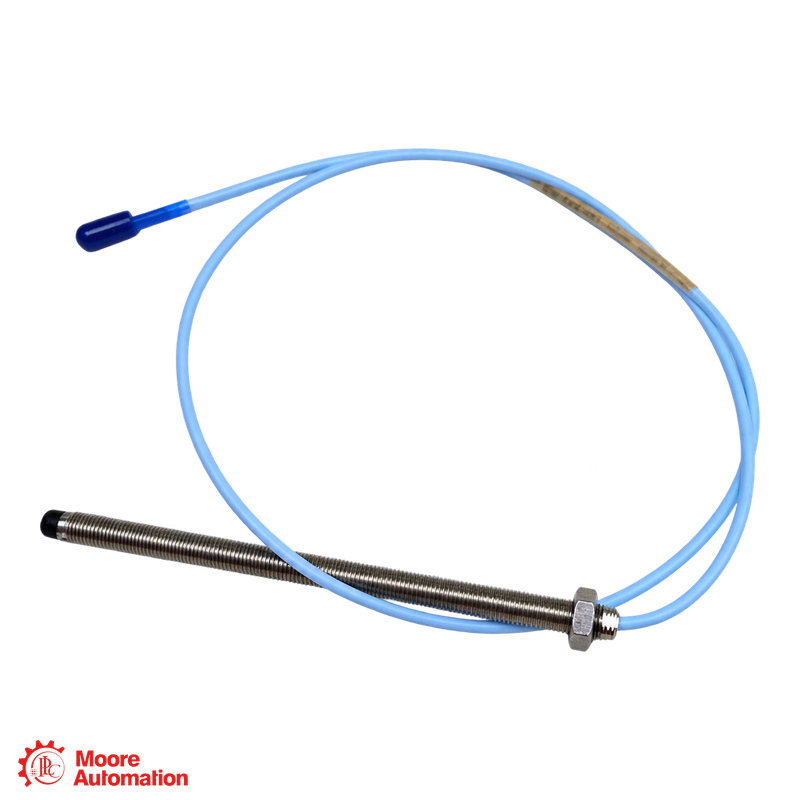

Bently Nevada 330101-00-66-20-02-00 3300 XL 8 mm Proximity Probe
Bently Nevada 330101-00-66-20-02-00 3300 XL 8 mm Proximity Probe
Bently Nevada 330101-00-66-20-02-00 3300 XL 8 mm Proximity Probe

Bently Nevada 330101-00-66-20-02-00 3300 XL 8 mm Proximity Probe

3300 XL 8 MM PROXIMITY PROBE

330101-00-66-20-02-00

330101-00-66-20-02-00 — a Bently Nevada 3300 XL 8 mm proximity probe with 3/8-24 UNF threads, a 6.6 in case, a 2.0 m total probe length and no stainless-steel armor.

THREAD3/8-24 UNF
CASE LENGTH6.6 in
TOTAL LENGTH2.0 m
ARMORNone
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Informarsi ora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 3300 XL 8 MM PROXIMITY PROBE
3300 XL 8 MM PROXIMITY PROBE

330101-00-66-20-02-00

3/8-24 UNF · 6.6 in case · 2.0 m lead · unarmored

3300 XL 8 mm Proximity Probe

8 MM EDDY-CURRENT PROBE
330101-00-66-20-02-00 — A Bently Nevada 3300 XL 8 mm proximity probe with 3/8-24 UNF threads, no stainless steel armor, 6.6 in case length and 2.0 m total length.
CONFIGURATION NOTE
The Bently Nevada ordering table defines 330101 as a 3/8-24 UNF unarmored 8 mm probe; 00 specifies 0.0 in unthreaded length, 66 specifies a 6.6 in case, 20 gives 2.0 m total length, 02 is a standard ClickLoc cable without connector protector, and 00 requires no agency approval.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

330101
Probe base3/8-24 UNF thread; no armor
00
Unthreaded length0.0 in
66
Case length6.6 in
20
Total length2.0 m
02
Connector/cableClickLoc without protector; standard cable
00
Agency approvalNot required
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗
3300 XL 8 MM PROXIMITY PROBE

Engineering data at a glance

Click “+” to expand more specifications.

THREAD3/8-24 UNF
CASE LENGTH6.6 in
TOTAL LENGTH2.0 m
ARMORNone
Manufacturer-defined order configuration.
Configuration noteThe Bently Nevada ordering table defines 330101 as a 3/8-24 UNF unarmored 8 mm probe; 00 specifies 0.0 in unthreaded length, 66 specifies a 6.6 in case, 20 gives 2.0 m total length, 02 is a standard ClickLoc cable without connector protector, and 00 requires no agency approval.
General Information −
BrandBently Nevada
Part number330101-00-66-20-02-00
Product type3300 XL 8 mm Proximity Probe
Product family3300 XL 8 mm
Thread3/8-24 UNF
ArmorNo stainless steel armor
Probe Order Configuration ＋
Unthreaded length0.0 in
Overall case length6.6 in
Total probe length2.0 m
ConnectorMiniature coaxial ClickLoc
Connector protectorNot included
Cable typeStandard cable
Mechanical Design ＋
Nominal tip diameter8 mm
Mounting thread3/8-24 UNF
Probe tip constructionTipLoc molding
Probe cable attachmentCableLoc
Cable pull strength330 N (75 lbf)
System Integration ＋
Measurement technologyEddy-current proximity
System componentsProbe, extension cable and Proximitor Sensor
Measurement modesVibration and position
Connector lockingFinger-tight ClickLoc
FAQ

Questions Buyers Ask Most

What configuration does 330101-00-66-20-02-00 specify?＋

330101-00-66-20-02-00 uses 330101 for its probe construction, 0.0 in unthreaded length, 6.6 in overall case length, and 2.0 m total length. The connector and cable option is Miniature coaxial ClickLoc without a connector protector.

What physical connection does 330101-00-66-20-02-00 use?＋

330101-00-66-20-02-00 uses a 3/8-24 UNF probe case and a miniature coaxial ClickLoc connector. The selected 01 or 02 option determines whether a connector protector is included. Use the complete part number to match the installed probe and extension-cable connection.

Which machinery measurements can use 330101-00-66-20-02-00?＋

330101-00-66-20-02-00 330101-00-66-20-02-00 is a probe component of the 3300 XL 8 mm system for shaft vibration and position measurements. The system includes the matching extension cable and Proximitor Sensor, which convert probe-to-target gap into a proportional output voltage.

How should 330101-00-66-20-02-00 be matched in the transducer system?＋

330101-00-66-20-02-00 330101-00-66-20-02-00 belongs in a 3300 XL 8 mm transducer chain with an extension cable and Proximitor Sensor. Match the complete probe order code, connection style and required system length rather than substituting a different cable or probe configuration by appearance alone.

What order details matter for 330101-00-66-20-02-00?＋

For the complete 330101-00-66-20-02-00 probe, record the 3/8-24 UNF thread, 0.0 in unthreaded length, 6.6 in case length, 2.0 m lead length, connector option and full trailing suffix. Compare them with the installed system before ordering a replacement.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete 330101-00-66-20-02-00 label, probe thread, case length, lead length, connector option and quantity with Frida.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
330101-00-66-20-02-00

The Bently Nevada 3300 XL 8 mm system datasheet lists the 330101 base and every option position in 330101-00-66-20-02-00.

Official manufacturer datasheet

Bently Nevada 3300 XL 8 mm Proximity Transducer System Datasheet 141194 defines the 330101 base model and the option values used in 330101-00-66-20-02-00.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements and ordering-code meanings use the linked Bently Nevada manufacturer datasheet.

3300 XL 8 MM SYSTEM CONTEXT

How 330101-00-66-20-02-00 Fits into a Machinery Monitoring System

Bently Nevada is the manufacturer. 330101-00-66-20-02-00 is a Bently Nevada 3300 XL 8 mm proximity probe. Together with a matching extension cable and Proximitor Sensor, it forms a system whose voltage output is proportional to probe-to-target distance.

Bently Nevada · BRAND
Bently Nevada 3300 XL 8 mm SeriesPRODUCT FAMILY · 8 MM PROXIMITY PROBE
PROBE THREAD

3/8-24 UNF

The 330101 probe uses 3/8-24 UNF threads.

CASE LENGTH

6.6 in

The selected case-length code specifies 6.6 in.

TOTAL PROBE LENGTH

2.0 m

The selected total-length code specifies 2.0 m of probe and attached cable.

System relationship: the 3300 XL 8 mm probe senses conductive shaft proximity; with the extension cable and Proximitor Sensor, the system converts target gap into a proportional voltage signal.
APPLICATION AREAS

Functions and application roles for 330101-00-66-20-02-00

Radial VibrationThe 3300 XL 8 mm transducer system measures shaft vibration on fluid-film bearing machines.
Shaft PositionThe system can measure static probe-to-target distance for shaft position monitoring.
APPLICATION CENTER 330101-00-66-20-02-00 3300 XL 8 mm Proximity Probe
Phase ReferenceThe system can support Keyphasor reference measurements with the correct monitor configuration.
Machine MonitoringThe probe operates in a three-component chain with an extension cable and Proximitor Sensor.
