Bently Nevada 330102-00-24-10-02-00 Proximity Probe

PRODUCT AT A GLANCE

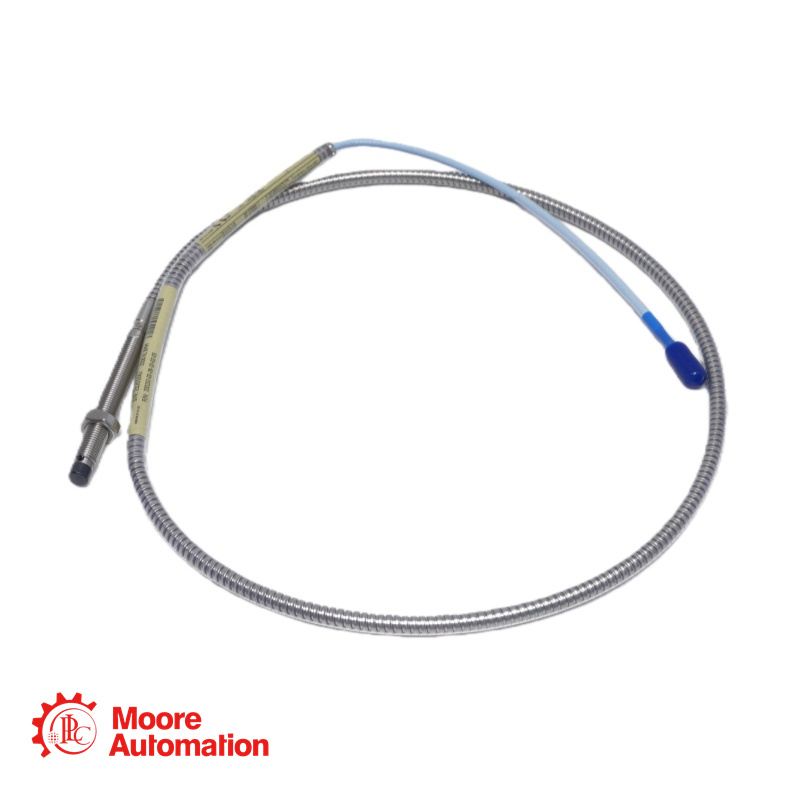

330102-00-24-10-02-00 is a 3300 XL 8 mm Proximity Probe, 3/8‑24 UNF thread, armored, with 0.0 in unthreaded length, 2.4 in case length, 1.0 m total cable length, equipped with a ClickLoc connector (standard FEP cable), and without hazardous area agency approvals.

TECHNICAL SPECIFICATIONS

Base model: 330102 (3300 XL 8 mm Probe, 3/8‑24 UNF thread, with armor)
AA = 00: Unthreaded length = 0.0 in (minimum)
BB = 24: Overall case length = 2.4 in
CC = 10: Total probe cable length = 1.0 meter
DD = 02: Connector and Cable Type = Miniature coaxial ClickLoc connector, standard cable (no connector protector)
EE = 00: Agency Approval Option = Not required (standard compliance only)
Probe Diameter: 8 mm.
Linear Range: 2.0 mm (80 mils).
Recommended Gap: 1.27 mm (50 mils).
Scale Factor: 7.87 V/mm (200 mV/mil) ±5%.
Case Material: AISI 303/304 Stainless Steel.
Armor: Flexible AISI 302/304 SST with FEP outer jacket.
Cable: 75 Ω triaxial, FEP insulated.
Operating Temperature: -52°C to +177°C.
Thread Engagement Limit: 0.563 in max for 3/8‑24 thread.
Maximum Rated Torque: 33.9 N·m (300 in‑lb) for forward‑mounted probes; Recommended Torque: 11.2 N·m (100 in‑lb).

HOW REQUEST A QUOTE FROM US?

Sales Manager: Frida

Phone/Whatsapp/Wechat:+86 15359408275

Email:sales5@mooreplc.com

FREQUENTLY ASKED QUESTIONS

Q:What is 3300 XL 8 mm system?
A:The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute's (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Q:What does “armored” mean for this 330102-00-24-10-02-00 probe?
A: The probe cable is protected by a flexible AISI 302/304 stainless‑steel armor with an FEP outer jacket. This provides mechanical protection against abrasion, crushing, and physical damage in harsh environments.

Q:Can this 330102-00-24-10-02-00 probe be used with a 3300 XL 11 mm system?

A: No. This is an 8 mm probe and is only electrically and mechanically compatible with 3300 XL 8 mm system components (extension cables and Proximitor sensors). Do not mix with 11 mm system parts.
