Bensamente Nevada

 /Bently Nevada 330102-05-55-10-02-05 3300 XL 8 mm Proximity Probe

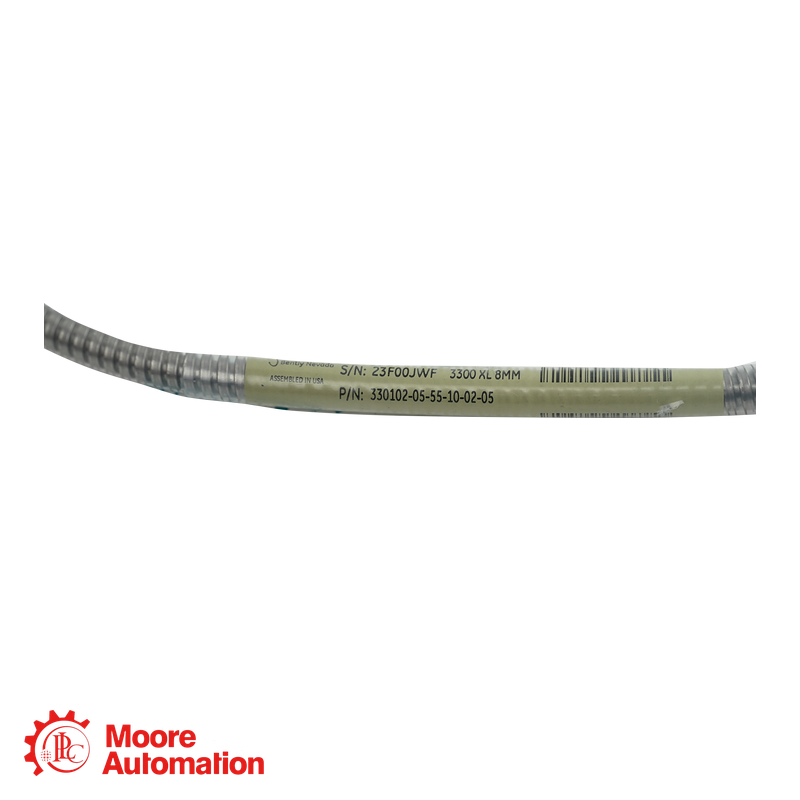

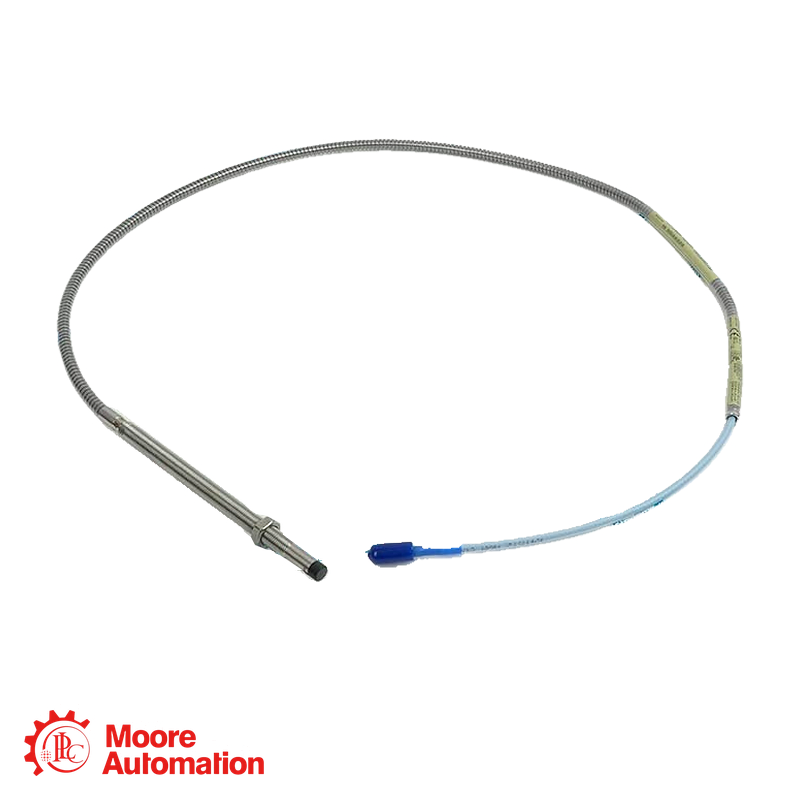

Bently Nevada 330102-05-55-10-02-05 3300 XL 8 mm Proximity Probe
Bently Nevada 330102-05-55-10-02-05 3300 XL 8 mm Proximity Probe
Bently Nevada 330102-05-55-10-02-05 3300 XL 8 mm Proximity Probe

Bently Nevada 330102-05-55-10-02-05 3300 XL 8 mm Proximity Probe

3300 XL · 8 MM PROXIMITY PROBE

330102-05-55-10-02-05

330102-05-55-10-02-05 — A 3300 XL 8 mm proximity probe with 3/8-24 UNF thread, stainless-steel armor, 0.5 in unthreaded length, 5.5 in overall case length, 1.0 m total length, a standard-cable ClickLoc connector and CSA, ATEX and IECEx approvals.

PROBE3300 XL 8 mm
CASE LENGTH5.5 in
TOTAL LENGTH1.0 m
APPROVALCSA · ATEX · IECEx
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Informarsi ora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 3300 XL PROXIMITY PROBE
3300 XL 8 MM PROXIMITY PROBE

330102-05-55-10-02-05

3/8-24 UNF · armored · 1.0 m total length

3300 XL 8 mm Proximity Probe

PROBE CONFIGURATION
330102-05-55-10-02-05 — A 3300 XL 8 mm proximity probe with 3/8-24 UNF thread, stainless-steel armor, 0.5 in unthreaded length, 5.5 in overall case length, 1.0 m total length, a standard-cable ClickLoc connector and CSA, ATEX and IECEx approvals.
CONFIGURATION NOTE
330102 = 3300 XL 8 mm probe with 3/8-24 UNF thread and armor; 05 = 0.5 in unthreaded length; 55 = 5.5 in overall case length; 10 = 1.0 m total length; 02 = ClickLoc connector with standard cable; and 05 = CSA, ATEX and IECEx approvals.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

330102
Base model3300 XL 8 mm probe · 3/8-24 UNF · armored
05
Unthreaded length0.5 in
55
Overall case length5.5 in
10
Total length1.0 m · 3.3 ft
02
Connector and cableClickLoc connector · standard cable
05
Agency approvalsCSA · ATEX · IECEx
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

OFFICIAL DATASHEET REFERENCE
3300 XL 8 MM PROXIMITY PROBE

Engineering data at a glance

Click “+” to expand more specifications.

PROBE3300 XL 8 mm
CASE LENGTH5.5 in
TOTAL LENGTH1.0 m
APPROVALSCSA / ATEX / IECEx
Configuration from manufacturer ordering data.
Configuration check Confirm the complete 330102 order code, thread, armor, unthreaded and case lengths, total cable length, connector/cable option, approvals and compatible Proximitor Sensor before replacement.
General Information −
BrandBently Nevada
Part number330102-05-55-10-02-05
Product type3300 XL 8 mm proximity probe
Product family3300 XL 8 mm
Measurement principleEddy-current proximity measurement
Probe constructionStandard-mount probe with stainless-steel armor
Configuration Dimensions ＋
Unthreaded length0.5 in
Overall case length5.5 in
Total length1.0 m (3.3 ft)
Connection and Approvals ＋
ConnectorMiniature coaxial ClickLoc connector
Case thread3/8-24 UNF-2A
Cable typeStandard cable
ArmorStainless-steel armor with FEP outer jacket
Agency approvalsCSA, ATEX and IECEx
System Context ＋
The armored 3300 XL 8 mm probe connects through its ClickLoc coaxial interface to the extension cable and compatible 3300 XL 8 mm Proximitor Sensor. The complete probe-plus-extension-cable length must match the sensor system length.
Source: Bently Nevada 3300 XL 8 mm Proximity Transducer System Datasheet 141194. The official ordering table defines base 330102 and options 05, 55, 10, 02 and 05.
FAQ

Questions Buyers Ask Most

What is 330102-05-55-10-02-05 used for?＋

330102-05-55-10-02-05 is an armored 3300 XL 8 mm probe for non-contact shaft vibration and position measurement as part of a compatible probe, extension-cable and Proximitor Sensor system.

What does the 330102-05-55-10-02-05 code specify?＋

For 330102-05-55-10-02-05, 330102 identifies the armored 3/8-24 UNF probe; 05 is 0.5 in unthreaded length; 55 is 5.5 in case length; 10 is 1.0 m total length; 02 is the standard-cable ClickLoc connector; and 05 denotes CSA, ATEX and IECEx approvals.

Can 330102-05-55-10-02-05 be substituted with a similar part number?＋

Do not substitute 330102-05-55-10-02-05 by appearance alone. Match the full order code, thread, armor, physical lengths, connector/cable type, approvals, target material, extension cable and Proximitor Sensor system length.

Which connector and cable configuration is used by 330102-05-55-10-02-05?＋

330102-05-55-10-02-05 uses a miniature coaxial ClickLoc connector with standard cable. Its armored probe lead is configured for a 1.0 m total length and must connect to a compatible extension cable and Proximitor Sensor.

What should I provide for a 330102-05-55-10-02-05 quotation?＋

Send the complete 330102-05-55-10-02-05 nameplate, quantity, target material, thread, required probe and extension-cable lengths, Proximitor Sensor system length, hazardous-area requirements and delivery destination.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete label and system details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
330102-05-55-10-02-05

Official manufacturer reference and configuration context for Bently Nevada 330102-05-55-10-02-05.

Official manufacturer documentation

Bently Nevada Datasheet 141194 identifies the 330102 armored 3/8-24 UNF probe family and defines options 05, 55, 10, 02 and 05 used in 330102-05-55-10-02-05.

OPEN OFFICIAL DATASHEET PDF

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Use the complete 330102-05-55-10-02-05 order number because its suffixes define unthreaded length, overall case length, total length, connector/cable type and agency approvals.

PROXIMITY SYSTEM RELATIONSHIP

How 330102-05-55-10-02-05 Fits into a Proximity Measurement Chain

Bently Nevada is the manufacturer. 330102-05-55-10-02-05 is an armored 3300 XL 8 mm proximity probe with 3/8-24 UNF thread for a compatible extension-cable and Proximitor Sensor system.

Bently Nevada · BRAND
3300 XL 8 mm ProbePROXIMITY SYSTEM COMPONENT
PROXIMITY PROBE

3300 XL 8 mm Probe

The 330102 base identifies a standard-mount 3300 XL 8 mm probe with 3/8-24 UNF thread and stainless-steel armor.

SYSTEM CABLE

Matched Extension Cable

The probe connects to a 3300 XL extension cable selected so probe length plus extension-cable length equals the Proximitor Sensor system length.

SENSOR INTERFACE

3300 XL Proximitor Sensor

A compatible 3300 XL 8 mm Proximitor Sensor supplies the conditioned proximity signal to the machinery-monitoring input.

System relationship: the probe, extension cable, Proximitor Sensor total length, target material, field wiring and monitor input must be compatible with the installed application.
APPLICATION AREAS

Application areas for 330102-05-55-10-02-05

Shaft Radial Vibration MonitoringMeasures relative shaft vibration on compatible rotating machinery and monitoring inputs.
Axial Position MeasurementMeasures axial shaft position when the installed target, mounting geometry and monitor input are compatible.
APPLICATION CENTER 330102-05-55-10-02-05 3300 XL 8 mm Proximity Probe
Shaft Position and Gap MeasurementProvides a conditioned signal proportional to probe-to-target gap for compatible position-monitoring applications.
Machinery Protection SystemsFeeds compatible machinery protection and condition-monitoring instruments with the conditioned proximity signal.
