Bently Nevada 330105-02-12-10-12-CN Reverse Mount Probe

How to Get A Quote?

Directly Contact with Our Manager: Frida

Email:sales5@mooreplc.com
Phone/Whatsapp/Wechat:+86 15359408275

Detailed Description

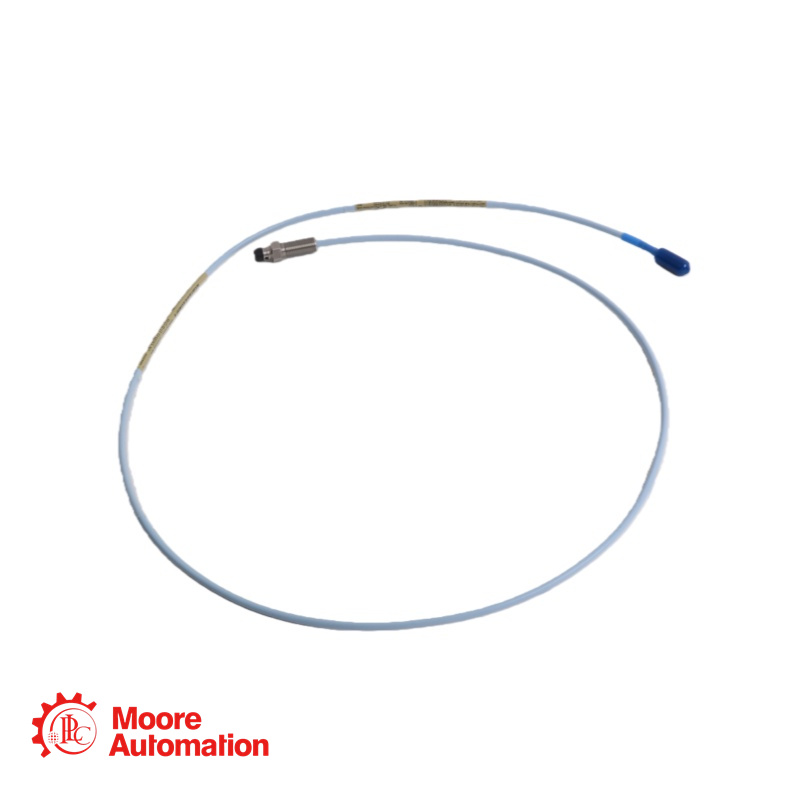

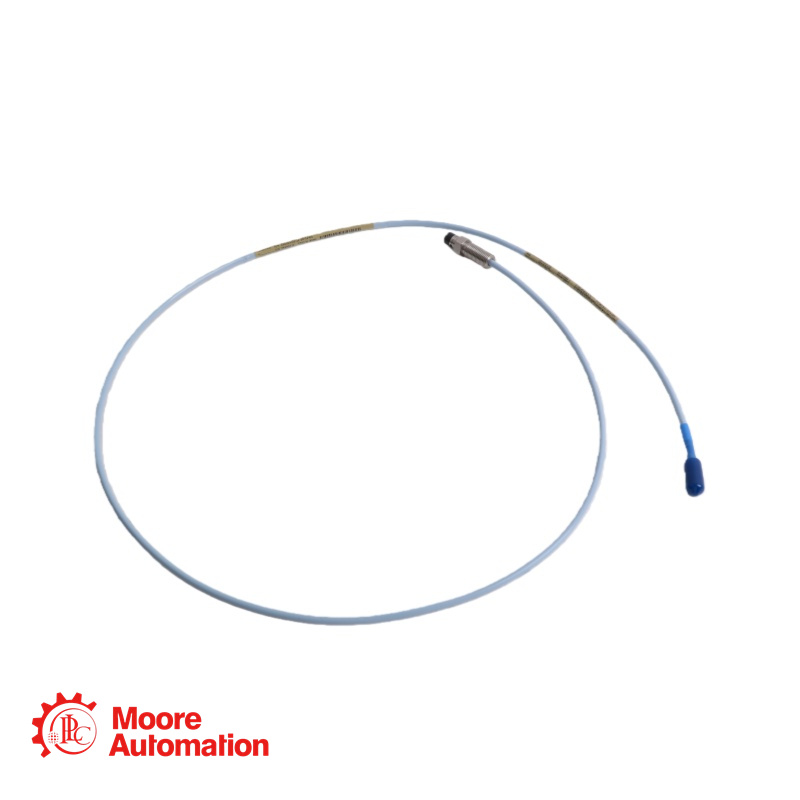

330105-02-12-10-12-CN is a 3300 XL 8 mm Reverse Mount Probe, 3/8‑24 UNF thread, unarmored (reverse‑mount probes cannot be armored), with 0.2 in unthreaded length, 1.2 in case length, 1.0 m total cable length, equipped with a ClickLoc connector and FluidLoc cable (oil‑blocking seal), and with China‑specific agency approval/marking (CN).

Model: 330105-02-12-10-12-CN
AA = 02: Unthreaded length = 0.2 in (5.08 mm)
BB = 12: Overall case length = 1.2 in (30.48 mm)
CC = 10: Total probe cable length = 1.0 meter
DD = 12: Connector Option = Miniature ClickLoc coaxial connector, FluidLoc cable
EE = CN: Agency Approval Option "CN" – China‑specific certification/marking (e.g., China RoHS, special regional compliance). Not a standard international approval code.
Thread: 3/8‑24 UNF.
Armor: Not available for reverse‑mount probes.
Cable Length: 1.0 meter
Probe Tip Material: PPS.
Case Material: AISI 303/304 Stainless Steel.
Operating Temperature: Standard: -52°C to +177°C.
Linear Range: 2.0 mm.
Scale Factor: 7.87 V/mm ±5% (for 1‑meter or 5‑meter systems).
Maximum Rated Torque: 22.6 N·m (200 in‑lb) for reverse‑mount probes; Recommended Torque: 7.5 N·m (66 in‑lb).

About the System

The 3300 XL 8 mm Proximity Transducer System consists of:
One 3300 XL 8 mm probe,
One 3300 XL extension cable1
One 3300 XL Proximitor Sensor2.
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static(position) and dynamic (vibration) values. The system's primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
