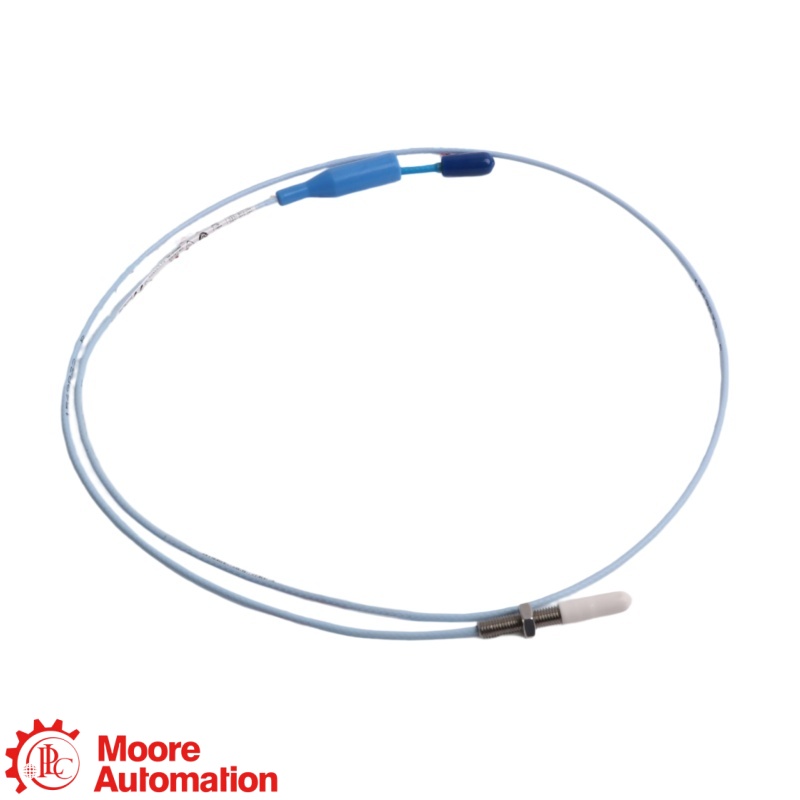

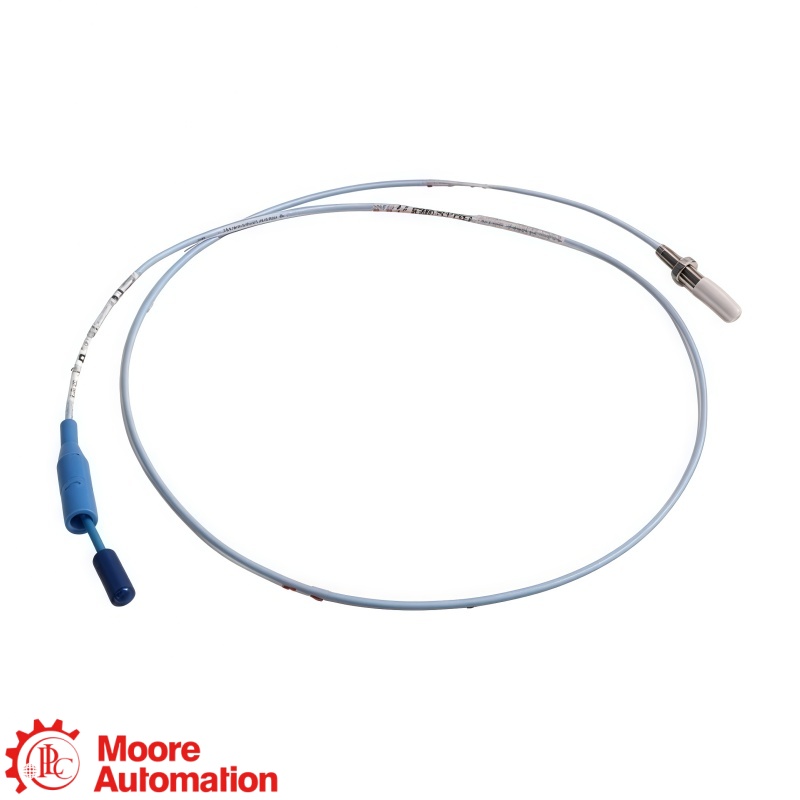

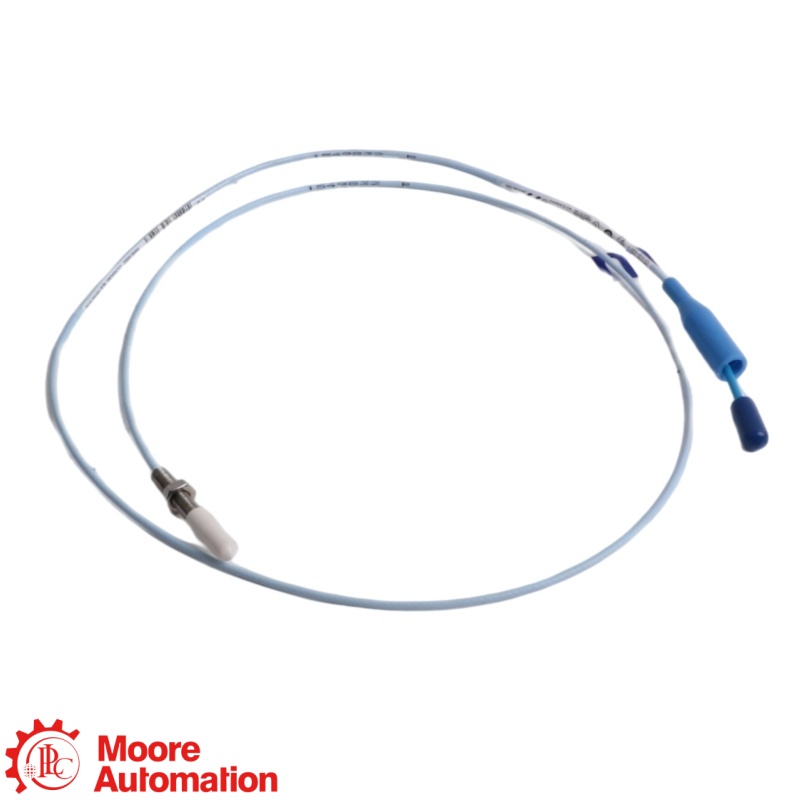

Bently Nevada 330171-00-12-50-01-05 3300 5 mm Proximity Probe
Bently Nevada 330171-00-12-50-01-05 3300 5 mm Proximity Probe
Bently Nevada 330171-00-12-50-01-05 3300 5 mm Proximity Probe

Bently Nevada 330171-00-12-50-01-05 3300 5 mm Proximity Probe

BENTLY NEVADA · 3300 5 MM PROXIMITY PROBE

330171-00-12-50-01-05

The 330171-00-12-50-01-05 is a 3300 5 mm proximity probe with a 1/4-28 UNF thread and no armor with 0.0 in unthreaded length, 1.2 in case length, 5.0 m total length, a protected ClickLoc connector and multiple approvals.

THREAD1/4-28 UNF
CASE LENGTH1.2 in
TOTAL LENGTH5.0 m
CONNECTORClickLoc + protector
MANUFACTURERBently Nevada
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Informarsi ora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 3300 5 MM PROXIMITY PROBE
3300 5 MM PROXIMITY TRANSDUCER SYSTEM

330171-00-12-50-01-05

BASE PART 330171

COMPLETE ORDER NUMBER REQUIRED

MODULE ROLE
330171-00-12-50-01-05 is a 3300 5 mm proximity probe with a 1/4-28 UNF thread and no armor. It measures shaft displacement through its 5.0 m integral cable and a five-metre Proximitor Sensor in a non-contact machinery-monitoring channel.
CONFIGURATION NOTE
For 330171-00-12-50-01-05, the fields define 0.0 in unthreaded length, 1.2 in case length, 5.0 m total length, a miniature ClickLoc connector with protector on standard cable and CSA, ATEX and IECEx approvals; confirm system length, mounting clearance and site certification before replacement.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the 330171-00-12-50-01-05 reference is structured

330171
Probe family3300 5 mm probe · 1/4-28 UNF · without armor
00
Unthreaded length0.0 in
12
Overall case length1.2 in
50
Total length5.0 m (16.4 ft)
01
Connector / cableClickLoc + protector · standard cable
05
Agency approvalMultiple approvals
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Baker Hughes Datasheet 172036 ↗
330171 · 3300 5 MM PROXIMITY PROBE

Engineering data at a glance

Review the exact configuration before replacement.

THREAD1/4-28 UNF
CASE LENGTH1.2 in
TOTAL LENGTH5.0 m
CONNECTORClickLoc + protector
Baker Hughes 3300 5 mm Proximity Transducer System Datasheet 172036 Rev. T.
General Information ＋
BrandBently Nevada
Part number330171-00-12-50-01-05
Product type3300 5 mm Proximity Probe
Product family3300 5 mm Proximity Transducer System
ManufacturerBently Nevada / Baker Hughes
ORDER NUMBER CHECK ＋
Base reference330171
Complete model330171-00-12-50-01-05
Ordered fields00 · 12 · 50 · 01 · 05
INSTALLATION VERIFICATION ＋
Probe constructionWithout armor 1/4-28 UNF probe
System lengthThe 5.0 m integral probe cable must match the five-metre Proximitor Sensor
Cable optionStandard cable with connector protector
Approval optionCSA, ATEX and IECEx
Linear system range2 mm (80 mil) with compatible 3300 5 mm system
DOCUMENTATION & ORDER CHECK ＋
Official referenceBaker Hughes 3300 5 mm Proximity Transducer System Datasheet 172036 Rev. T.
Quotation checkConfirm the complete model, quantity, labels, connectors, installed system and application conditions
FAQ

Questions Buyers Ask Most

What is 330171-00-12-50-01-05 used for?＋
330171-00-12-50-01-05 is a Bently Nevada 3300 5 mm proximity probe that senses shaft-to-probe gap changes without contact. Its 5.0 m integral cable is designed for the five-metre Proximitor Sensor, and the 1/4-28 UNF mounting and ClickLoc connection must match the installed channel.
What do the 00 and 12 fields specify for 330171-00-12-50-01-05?＋
330171-00-12-50-01-05 uses field 00 for 0.0 in unthreaded length and field 12 for a 1.2 in overall case length. These dimensions define the physical probe body, so the mounting bracket, thread engagement and available clearance must match the installed machine.
Does 330171-00-12-50-01-05 include a connector protector?＋
330171-00-12-50-01-05 uses connector field 01, which specifies a miniature coaxial ClickLoc connector with a connector protector on standard cable. The mating extension-cable connector and protector arrangement must be compatible, correctly seated and protected from the installation environment.
Which Proximitor system length is compatible with 330171-00-12-50-01-05?＋
330171-00-12-50-01-05 is a Bently Nevada 3300 5 mm proximity probe with a 5.0 m integral cable. Official documentation states that five-metre probes are designed for the five-metre Proximitor Sensor, so the installed sensor system length must match before connection.
Can 330171-00-12-50-01-05 directly replace another 330171 probe?＋
330171-00-12-50-01-05 cannot be approved from the 330171 base number alone. Unthreaded length, case length, integral cable length, connector protection and approval option can differ, so compare the complete order number and mounting dimensions before replacing the installed probe.
What must be checked before installing 330171-00-12-50-01-05?＋
330171-00-12-50-01-05 requires confirmation of the 1/4-28 UNF thread, 1.2 in case clearance, 5.0 m probe cable, ClickLoc protector, target material and matched Proximitor system length. Hazardous-area wiring and grounding must also follow the approved installation documentation.
What does the 05 approval option require for 330171-00-12-50-01-05?＋
330171-00-12-50-01-05 carries the 05 multiple-approvals ordering option. This identifies an approved configuration, but installation suitability still depends on the site classification, applicable control drawing, temperature conditions, grounding and the exact extension-cable and Proximitor Sensor arrangement.
CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
OFFICIAL DATASHEET

Manuals and Official References for 330171-00-12-50-01-05

Official Baker Hughes manufacturer-reference information for 330171-00-12-50-01-05.

3300 5 mm Proximity Probe

Baker Hughes 3300 5 mm Proximity Transducer System Datasheet 172036 Rev. T.

OFFICIAL DATASHEET ↗

Contact to Get Support

Send the complete model, quantity, nameplate photos and your technical or purchasing question.

Baker Hughes 3300 5 mm Proximity Transducer System Datasheet 172036 Rev. T.
3300 5 MM PROXIMITY TRANSDUCER SYSTEM RELATIONSHIP

How 330171-00-12-50-01-05 Fits into a Proximity Measurement Chain

Bently Nevada is the brand; the 3300 5 mm Proximity Transducer System is the measurement family; and 330171-00-12-50-01-05 is the complete proximity-probe configuration.

Bently Nevada · BRAND
3300 5 mm SystemPRODUCT FAMILY · MEASUREMENT
SENSING COMPONENT

Proximity Probe

The configured probe detects relative shaft vibration or position without contacting the target.

INTERCONNECTION

Extension Cable

The matched cable carries the probe signal while preserving the calibrated electrical length.

SIGNAL CONDITIONING

Proximitor / Monitor

The compatible Proximitor conditions the signal for the machinery-protection monitor channel.

System relationship: the probe code, mounting gap, target material, cable, system length, Proximitor and monitor channel must all match.
APPLICATION AREAS

Application mind map for the 330171 Proximity Probe

Rotating MachineryNon-contact shaft vibration or relative-position measurement
Verified InstallationConfirm probe thread, mounting gap and cable routing
APPLICATION CENTER330171 Proximity ProbeNon-contact sensing element
Fault DetectionSupport detection of vibration, runout and displacement changes
System ReplacementRestore complete probe, cable and Proximitor compatibility
