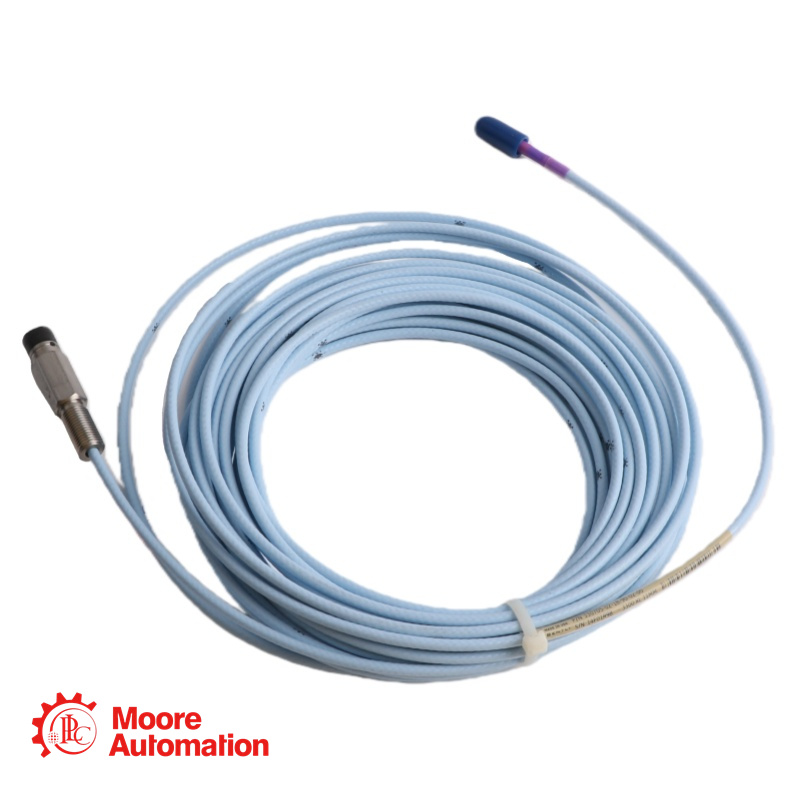

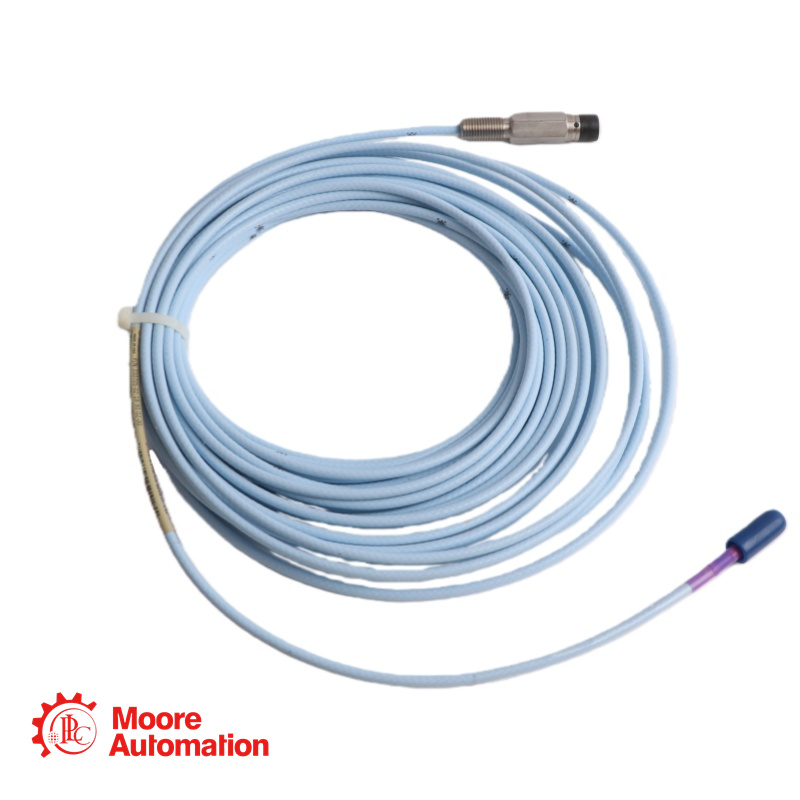

Bently Nevada 330705-02-18-90-02-CN Reverse Mount Probe

Contact here to get quotation

Know Product Details

❖Unthreaded Length (Option A): 02 = 0.2 inch (5.08 mm)

❖Overall Case Length (Option B): 18 = 1.8 inch (45.72 mm)

❖Total Cable Length (Option C): 90 = 9.0 meters (29.5 feet)

❖Cable & Connector Option (Option D): 02 = Miniature coaxial ClickLoc connector, standard cable

❖Agency Approval (Option E): CN = Country-specific approval (likely China RoHS or CNEx)

Probe Type: Reverse mount

Thread Type: 3/8-24 UNF

Armor: Not available for reverse mount probes

Probe Tip Diameter: 11 mm

Probe Tip Material: Polyphenylene sulfide (PPS)

Probe Case Material: AISI 304 stainless steel

Cable Type: Standard 75 Ω triaxial cable with fluoroethylene propylene (FEP) insulation

Connector Type: Miniature coaxial ClickLoc connector (gold-plated brass)

Temperature Range (Operating/Storage): -52°C to +177°C (-62°F to +351°F)

Tensile Strength (Cable to Probe): 330 N (75 lb)

Minimum Bend Radius: 25.4 mm (1.0 in)

Linear Range: 4.0 mm (160 mils) from 0.5 mm to 4.5 mm gap

Scale Factor: 3.94 V/mm (100 mV/mil) ±10%

Frequency Response: 0 to 8 kHz

Recommended Gap Setting: 2.5 mm (100 mils)

Frequently Asked Questions?

❖Why is this 9‑meter probe not available with armor or FluidLoc options?
A: Reverse‑mount probes are mechanically designed to be threaded fully into the mounting housing, which makes it difficult to integrate armored or FluidLoc cable features. The cable must remain flexible enough to route out of the housing after installation.
❖Is the “CN” approval valid for use in Chinese hazardous locations?
A: The “CN” suffix indicates compliance with Chinese regulations (e.g., China RoHS SJ/T 11364‑2024). For hazardous‑area use in China, you must verify whether this specific part number carries CNEx certification for the required Zone/Division.
❖Is this 330705-02-18-90-02-CN orginal new one?
