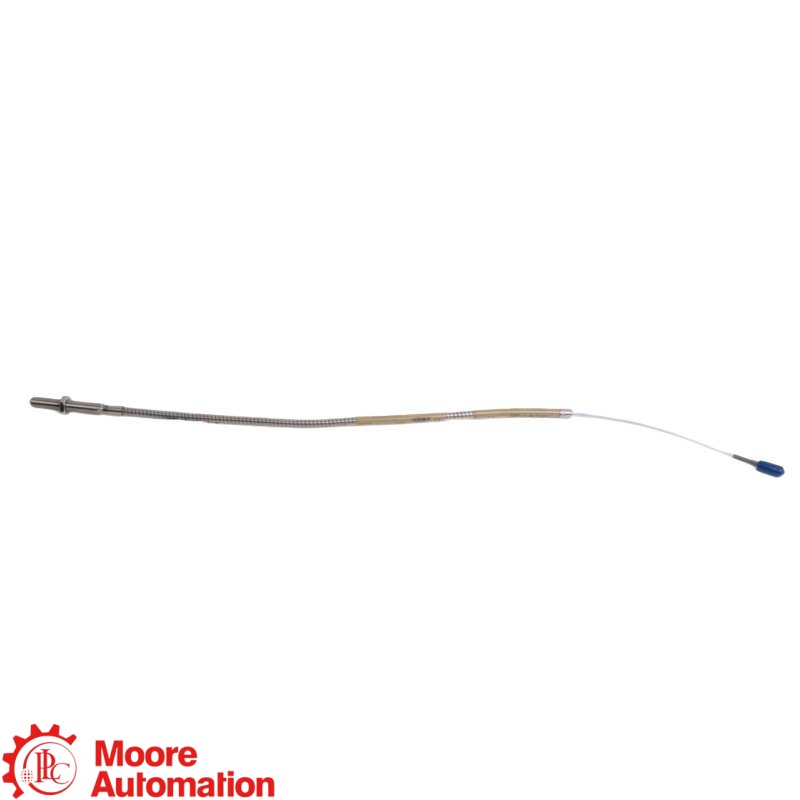

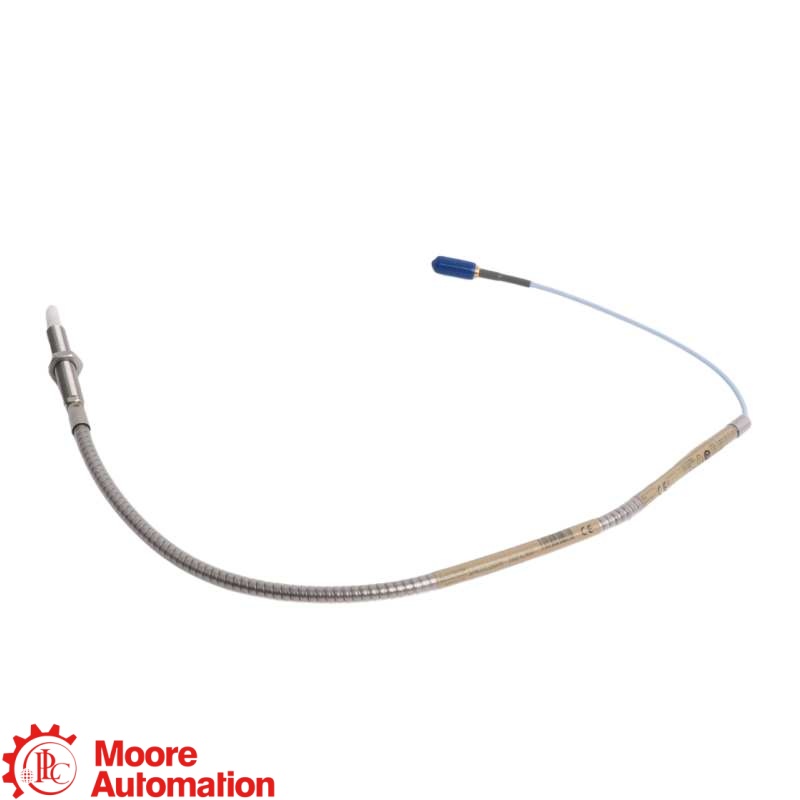

Bently Nevada 330910-00-07-05-02-CN 3300 XL NSv Armored Proximity Probe
Bently Nevada 330910-00-07-05-02-CN 3300 XL NSv Armored Proximity Probe
Bently Nevada 330910-00-07-05-02-CN 3300 XL NSv Armored Proximity Probe

Bently Nevada 330910-00-07-05-02-CN 3300 XL NSv Armored Proximity Probe

BENTLY NEVADA · 3300 XL NSv ARMORED PROXIMITY PROBE

330910-00-07-05-02-CN

The 330910-00-07-05-02-CN is an armored M10 × 1 probe with 0 mm unthreaded length, 70 mm case length, 0.5 m total length, standard cable with a miniature coaxial ClickLoc connector and a China marking suffix. It must be used as part of a compatible 3300 XL NSv proximity transducer system.

THREADM10 × 1
CASE70 mm
LENGTH0.5 m
CABLEStandard · ClickLoc
MANUFACTURERBently Nevada
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATIONProduct photos and videos provided after inquiry
REQUEST A QUOTE
Informarsi ora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ↗3300 XL NSv ARMORED PROXIMITY PROBE
3300 XL NSv PROXIMITY TRANSDUCER SYSTEM

330910-00-07-05-02-CN

330910

M10 × 1 · 70 mm case · 0.5 m standard armored lead · approvals

PRODUCT ROLE

330910-00-07-05-02-CN is an armored M10 × 1 proximity probe for non-contact measurement of shaft vibration, position, speed or Keyphasor reference when connected to a compatible 3300 XL NSv extension cable and Proximitor sensor.

CONFIGURATION NOTE

For 330910-00-07-05-02-CN, the ordered fields specify 0 mm unthreaded length, 70 mm case length, 0.5 m total length, standard cable with a miniature coaxial ClickLoc connector and a China marking suffix. Confirm every field, target material, total electrical length, cable route, connector option and hazardous-area approval before replacement.

WANT THE BEST PRICE?

Frida

Sales Leader 🏆
ORDER NUMBER BREAKDOWN

How the 330910-00-07-05-02-CN reference is structured

330910
Probe familyM10 × 1 · with armor
00
Unthreaded length0 mm
07
Case length70 mm
05
Total length0.5 m
02
Cable / connectorStandard · miniature coaxial ClickLoc connector
CN
Approval optionChina marking suffix
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Baker Hughes Datasheet 147385 ↗
330910 · 3300 XL NSv ARMORED PROXIMITY PROBE

Engineering data at a glance

Verify the complete order code, mechanical dimensions, total length, connector/cable option and approval suffix before installation.

THREADM10 × 1
CASE70 mm
LENGTH0.5 m
CABLEStandard
Baker Hughes Datasheet 147385 documents the 3300 XL NSv ordering structure and system compatibility. Do not mix probe, extension cable or Proximitor components from an incompatible system.
General Information＋
ManufacturerBently Nevada
Model330910-00-07-05-02-CN
Product type3300 XL NSv Armored Proximity Probe
Transducer system3300 XL NSv
Measurement methodNon-contact eddy-current proximity measurement
ORDER NUMBER CHECK＋
Probe family330910 · M10 × 1 · with armor
Unthreaded length00 · 0 mm
Case length07 · 70 mm
Total length05 · 0.5 m
Cable / connector02 · miniature coaxial ClickLoc connector · standard cable
Approval optionCN · supplied marking suffix
SYSTEM & ELECTRICAL COMPATIBILITY＋
Compatible system3300 XL NSv probe, extension cable and Proximitor sensor
Nominal system lengthVerify the ordered total electrical length
ApplicationsRadial vibration, axial position, speed and Keyphasor reference
Target requirementConductive target material and calibrated system geometry
INSTALLATION & REPLACEMENT CHECK＋
Mechanical fitM10 × 1 armored body, 0 mm unthreaded length and 70 mm case length
Cable and connectorstandard cable with a miniature coaxial ClickLoc connector
ApprovalsCN suffix · verify the exact nameplate marking and installation approval
CommissioningVerify gap voltage and machine protection settings after installation
FAQ

Questions Buyers Ask Most

What is 330910-00-07-05-02-CN used for?＋
330910-00-07-05-02-CN is armored M10 × 1 proximity probe used in a compatible 3300 XL NSv proximity transducer system to measure shaft vibration, position, speed or a Keyphasor reference without contacting the target.
How is the 330910-00-07-05-02-CN order number decoded?＋
The 330910-00-07-05-02-CN order number must be read in its original sequence. 330910 identifies the armored M10 × 1 family; 00 and 07 define the metric body; 05 is 0.5 m; 02 is a miniature coaxial ClickLoc connector with standard cable; CN is the supplied marking suffix. These fields must not be reordered or merged because each identifies a separate mechanical, cable or approval selection.
Which cable and connector option is specified for 330910-00-07-05-02-CN?＋
330910-00-07-05-02-CN uses standard cable with a miniature coaxial ClickLoc connector. The mating extension cable and Proximitor sensor must be selected for the same 3300 XL NSv system length and connector arrangement.
What total length is specified for 330910-00-07-05-02-CN?＋
330910-00-07-05-02-CN specifies a 0.5 m total probe length. This is the ordered probe lead length, and the complete probe-plus-extension-cable electrical length must match the installed Proximitor system.
Which approvals apply to 330910-00-07-05-02-CN?＋
330910-00-07-05-02-CN uses CN suffix · verify the exact nameplate marking and installation approval. Confirm that the exact approval marking on the delivered nameplate satisfies the installation area and local certification requirements.
Can 330910-00-07-05-02-CN directly replace another 3300 XL NSv probe?＋
330910-00-07-05-02-CN can be considered only when thread, case geometry, unthreaded length, total length, cable/connector option, approvals and the connected 3300 XL NSv extension cable and Proximitor sensor all match.
What information should be supplied when ordering 330910-00-07-05-02-CN?＋
For a 330910-00-07-05-02-CN inquiry, provide the complete order code, quantity, nameplate photo, machine application, mounting dimensions, target material, existing extension-cable and Proximitor numbers, hazardous-area requirements and required delivery date.
CONTACT PRODUCT SPECIALIST

Confirm your 330910-00-07-05-02-CN configuration with Frida

Share the complete model and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
OFFICIAL DATASHEET

Manuals and Official References for 330910-00-07-05-02-CN

Official Baker Hughes manufacturer-reference information for the 330910-00-07-05-02-CN 3300 XL NSv proximity probe.

3300 XL NSv Armored Proximity Probe

Baker Hughes Datasheet 147385 documents the armored M10 × 1 330910 probe family and its 00-07-05-02 mechanical, lead-length and connector fields. The supplied CN suffix should be matched to the delivered nameplate marking.

OFFICIAL DATASHEET ↗

Contact to Get Support

Send the complete model, quantity, nameplate details and your technical or purchasing question.

Source: Baker Hughes 3300 XL NSv Proximity Transducer System Datasheet 147385 Rev. R.
3300 XL NSv PROXIMITY TRANSDUCER SYSTEM RELATIONSHIP

How 330910-00-07-05-02-CN Fits into a Proximity Measurement Chain

Bently Nevada is the brand; the 3300 XL NSv Proximity Transducer System is the measurement family; and 330910-00-07-05-02-CN is the complete proximity-probe configuration.

Bently Nevada · BRAND
3300 XL NSv SystemPRODUCT FAMILY · MEASUREMENT
SENSING COMPONENT

Proximity Probe

The configured probe detects relative shaft vibration or position without contacting the target.

INTERCONNECTION

Extension Cable

The matched cable carries the probe signal while preserving the calibrated electrical length.

SIGNAL CONDITIONING

Proximitor / Monitor

The compatible Proximitor conditions the signal for the machinery-protection monitor channel.

System relationship: the probe code, mounting gap, target material, cable, system length, Proximitor and monitor channel must all match.
APPLICATION AREAS

Application mind map for 330910-00-07-05-02-CN

Machine VibrationMeasures dynamic shaft motion in a compatible monitoring system
Axial PositionMeasures shaft position within the calibrated linear range
APPLICATION CENTER330910-00-07-05-02-CN3300 XL NSv Armored Proximity Probe
Speed / KeyphasorProvides a phase or speed reference when correctly installed
Replacement CheckMatch the complete six-field order code and installed transducer system
