DWR06 Pressure Monitors are especially suitable as a pressure monitor or pressure limiter for fuel gases.
Marca :
HoneywellNumero parte :
DWR06Il peso :
0.38 kgDimensione :
12.2x10.7x3cmPaese d'origine :
USACodice SA :
8537101190Descrizione :
Pressure Monitor
DWR06
Brand:
Part Number:
Short Description:
Origin:
Condition:
Warranty:
Honeywell
DWR06
Pressure Monitor
USA
100% New & Original
12 Months
<DWR06 Description>

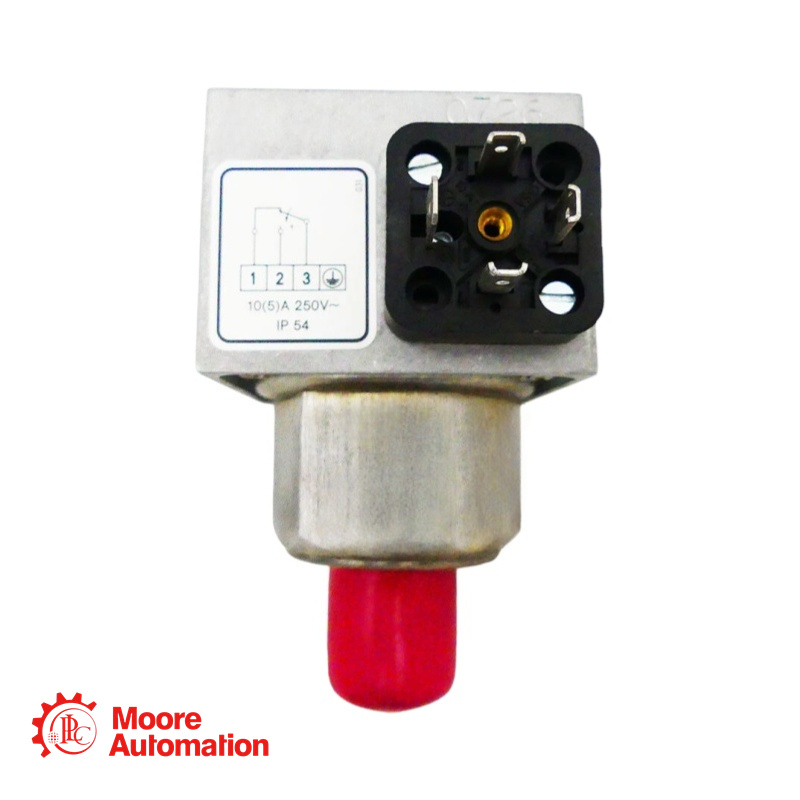

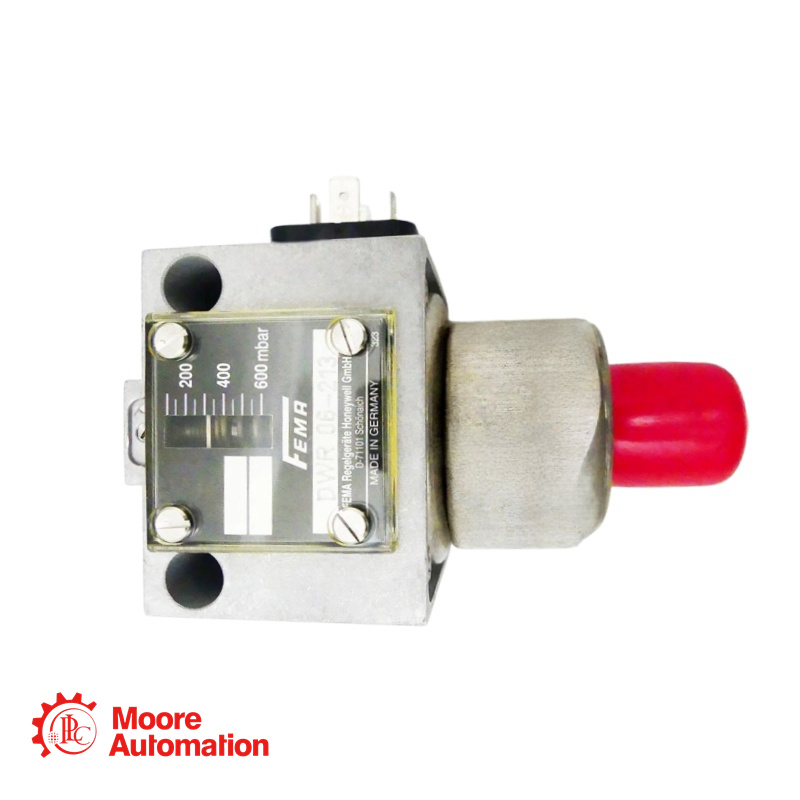

DWR06 Pressure Monitors are especially suitable as a pressure monitor or pressure limiter for fuel gases (DVGW Worksheet G 260) and liquid fuels (e.g. fuel oil), as well as for steam systems according to TRD 604 and hot water systems to DIN EN12828, systems in accordance to DIN EN12952-11 and DIN EN12953-9. The DWR is used to monitor maximum and minimum pressures. This pressure switch is "of special construction" and has been tested with 2 million operating cycles. TÜV and DVGW tests exists.It comes with rugged housing made of seawaterresistant die cast aluminium.Switching differential is adjustable with DWR-203 types.
Specification of DWR06
Setting Range: 0.1...0.6 bar
Switching Differential (Tolerance): 35...73 mbar
Maximum Working Pressure: 6 bar
Pressure Connection: External thread G 1/2 (pressure gauge connection) to DIN 16288 and internal thread G 1/4 to ISO 228 Part 1. For gas applications, the internal thread is permissible only up to 4 bar.
Switching Device Housing: Rugged housing made of seawater-resistant die-cast aluminium (GD Al Si 12).
Switching Capacity:
250 VAC (ohmic): 8 A
250 VDC (ohmic): 5 A
24 VDC (ohmic): 0.3 A
Ambient Temperature: -20...+70°C
Medium Temperature: -25...+70°C (can reach 85°C for short periods)
|
