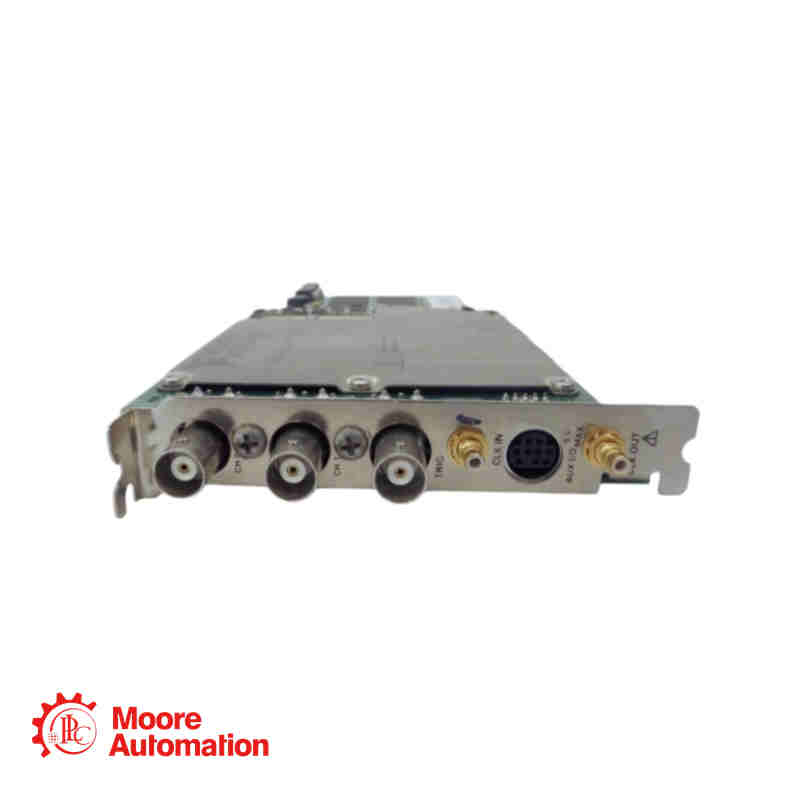

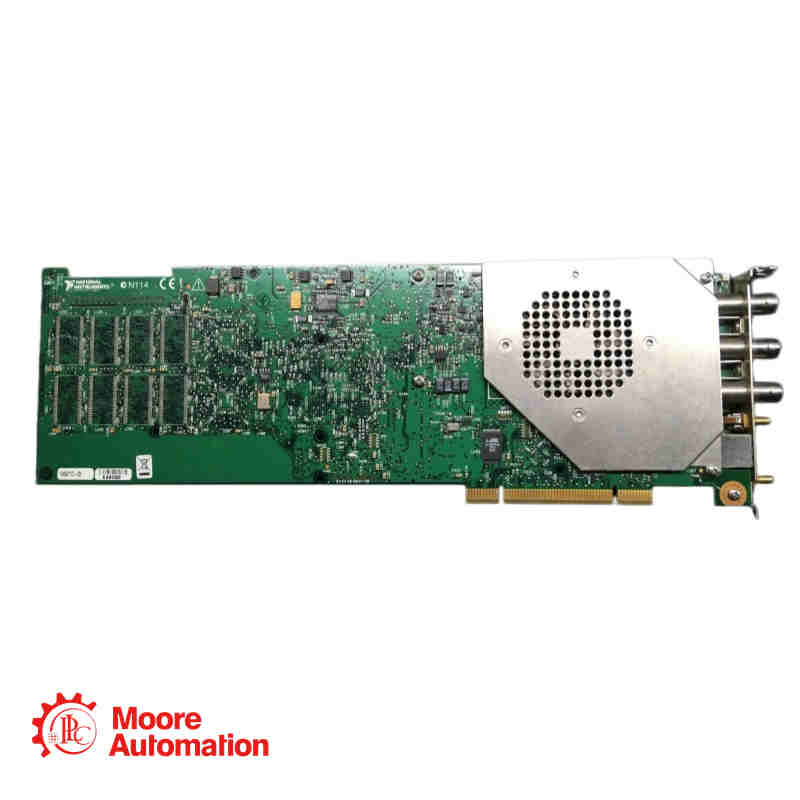

The PCI-5122 high-resolution oscilloscope device has two channels with greater than 75 dBc spurious-free dynamic range (SFDR) and flexible settings for coupling, impedance, voltage range, and filtering.
Marca :
NATIONAL INSTRUMENTSNumero parte :
PCI-5122Il peso :
453 gDimensione :
21.3 cm × 2.0 cm × 13.0 cmPaese d'origine :
USACodice SA :
8537101190Descrizione :
Oscilloscope Device
Basic Information
Part number
PCI-5122
Origin
USA
Manufacturer
NATIONAL INSTRUMENTS
Status
Brand New In Stock
Description
Oscilloscope Device
Payment
T/T
Product Description
The PCI-5122 high-resolution oscilloscope device has two channels with greater than 75 dBc spurious-free dynamic range (SFDR) and flexible settings for coupling, impedance, voltage range, and filtering. Oscilloscope devices also feature a number of triggering modes, deep onboard memory, and an instrument driver that includes data streaming and analysis functions. This device is ideal for both time-domain and frequency-domain applications that require high-resolution, low-noise measurements with up to 100 MS/s and 100 MHz of analog bandwidth.
★High-speed, high-resolution digitizing – 100 MS/s, 14-bit, 100 MHz bandwidth
★Two simultaneously sampled channels with independent input ranges
★Software-selectable 50 Ω / 1 MΩ impedance for matching signal sources
★Multiple triggering modes (edge, window, video, hysteresis, digital)
★Onboard memory up to 256 MB (128 MS per channel) for long records
Product Specification
Vertical (Analog Input)
Channels: 2 (simultaneously sampled)
Resolution: 14 bits
Input Impedance (software-selectable): 50 Ω ±2.0% or 1 MΩ ±0.75% (29 pF nominal capacitance)
Input Coupling: AC, DC, GND
Full-Scale Input Ranges (Vpk-pk): 0.2 V, 0.4 V, 1 V, 2 V, 4 V, 10 V, 20 V (1 MΩ only)
Horizontal (Sampling)
Real-time Sampling Rate: 1.526 kS/s to 100 MS/s
Random Interleaved Sampling (RIS): 200 MS/s to 2 GS/s (multiples of 100 MS/s)
Memory
Onboard Memory Options:
8 MB standard: 4 MS per channel, 16,384 records max
64 MB: 32 MS per channel, 100,000 records max
256 MB: 128 MS per channel, 100,000 records max
Minimum Record Length: 1 sample
-------------------------------------------------------------
