Marca :
PilzNumero parte :
774585Il peso :
0.18 kgDimensione :
2.25 cm x 8.7cm x 12.1cmPaese d'origine :
GERMANYCodice SA :
8537101190Descrizione :

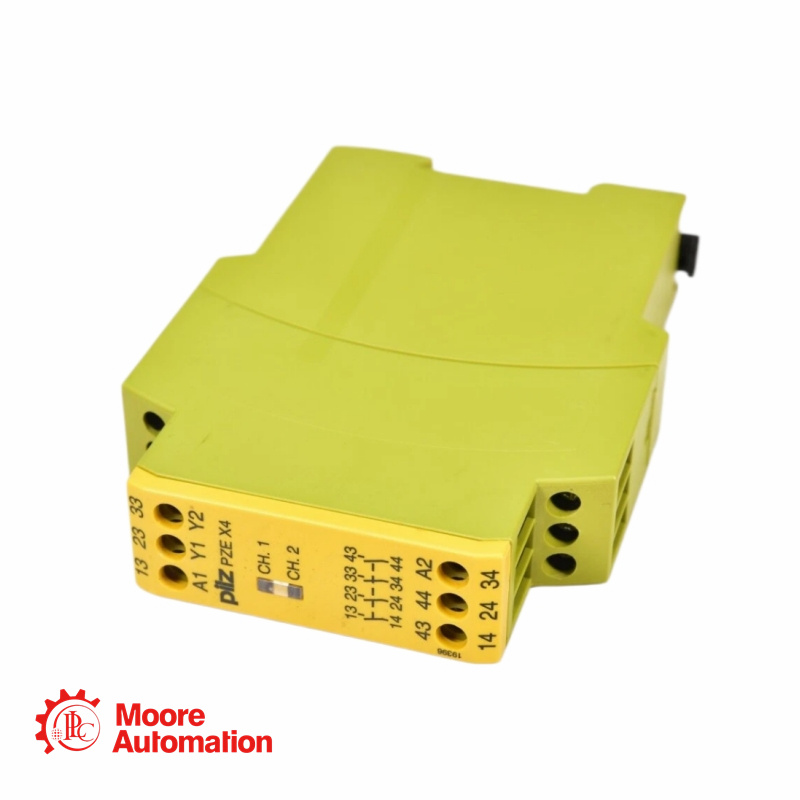

Pilz PZE X4 24VDC 4n/o safety relay contact expansion module with four normally open contacts and fixed screw terminals
|
Pls Click Here To Get In Touch: |
|
Sales Manager: Nina Lan Phone/Whatsapp/Wechat: +8618030235312 Email: sales8@askplc.com
|
Details about product Pilz PZE X4 24VDC 4n/o 774585
The Pilz PZE X4 24VDC 4n/o, product ID 774585, is a contact expansion module for safety-related control components. It uses one-channel input wiring and provides four normally open relay safety contacts for expanding available switching capacity. Powered by 24 V DC, the module consumes 2.5 W and supports AC-1 loads up to 240 V/6 A and DC-1 loads up to 24 V/6 A. Integrated fixed screw terminals simplify control-cabinet installation and maintenance.
|
Technical Parameters |
|||
|
Brand |
Pilz |
Supply Voltage |
24 V DC |
|
Product Name |
PZE X4 24VDC 4n/o |
Power Consumption |
2.5 W |
|
Product ID |
774585 |
Input Configuration |
1 input, single-channel wiring |
|
Product Family |
PNOZ X Contact Expansions |
Safety Outputs |
4 normally open relay contacts |
|
Product Type |
Safety Relay Contact Expansion Module |
Contact Ratings |
AC-1: 240 V/6 A; DC-1: 24 V/6 A; AC-15: 230 V/5 A |
|
Ambient Temperature |
-10°C to +55°C |
Overvoltage Category |
III |
|
Humidity Rating |
93% relative humidity at 40°C |
Conductor Range |
24–10 AWG |
|
FAQ |
|
Q1: What is Pilz 774585 used for? |
|
It expands the number of safety relay contacts available in a safety-related control circuit. |
|
Q2: Is it a standalone safety controller? |
|
No. It is a contact expansion module and must operate with a suitable safety-related control component. |
|
Q3: Does model 774585 include delayed outputs? |
|
No. It provides four normally open, non-delayed contacts. Delayed PZE X4 variants have different product numbers. |
|
Application Areas |
|
Oil and gas pump skid automation |
|
Natural gas compressor stations |
|
LNG and CNG processing equipment |
|
Chemical dosing and mixing systems |
|
Petrochemical refinery auxiliary drives |
|
Pipeline valve actuator systems |
|
