PROSOFT TECHNOLOGY · CONTROLLOGIX MODBUS COMMUNICATION MODULE

MVI56-MCM

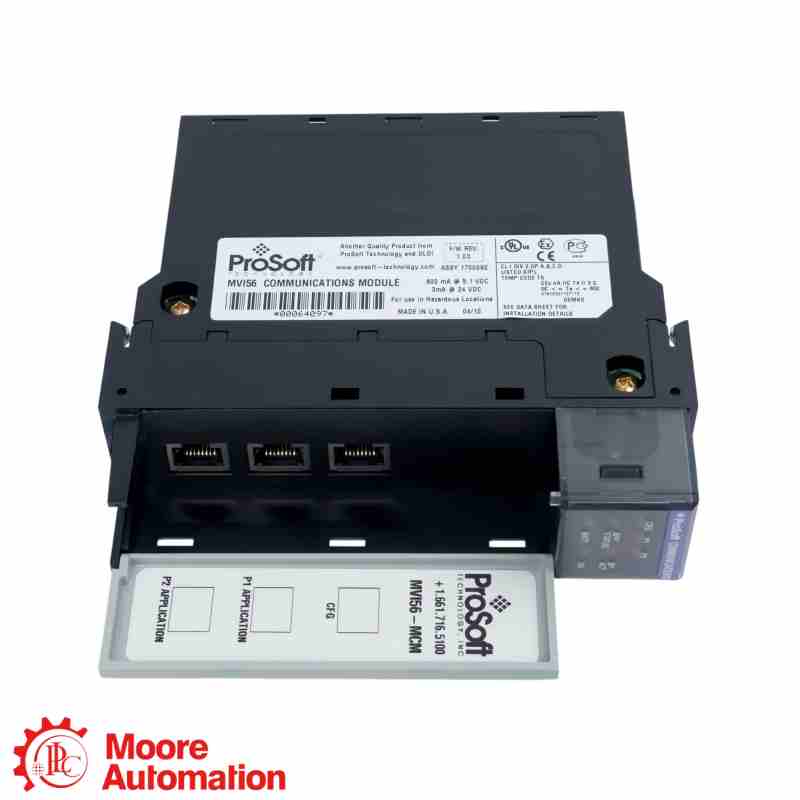

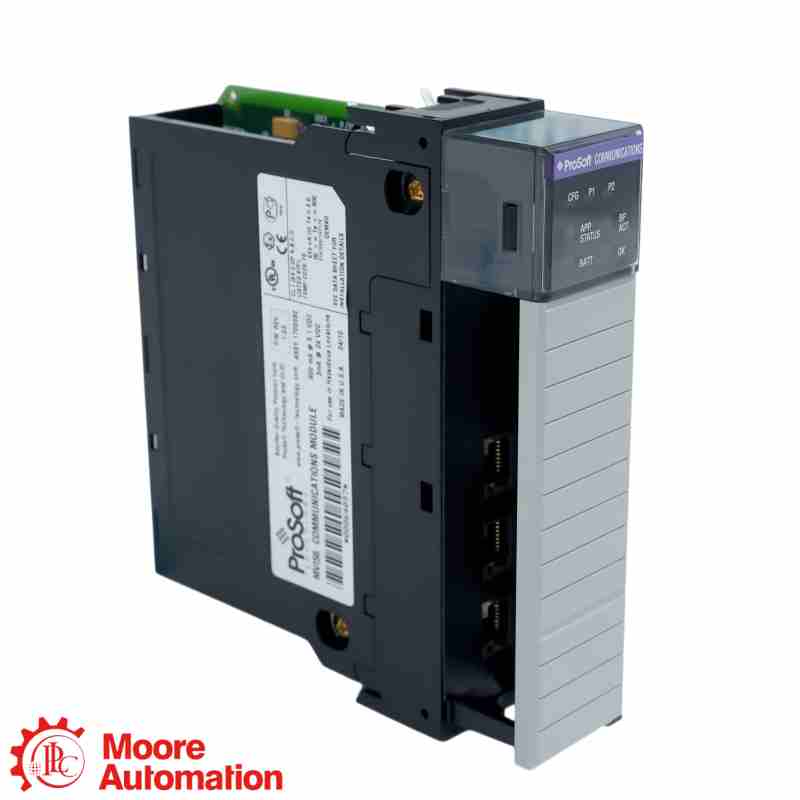

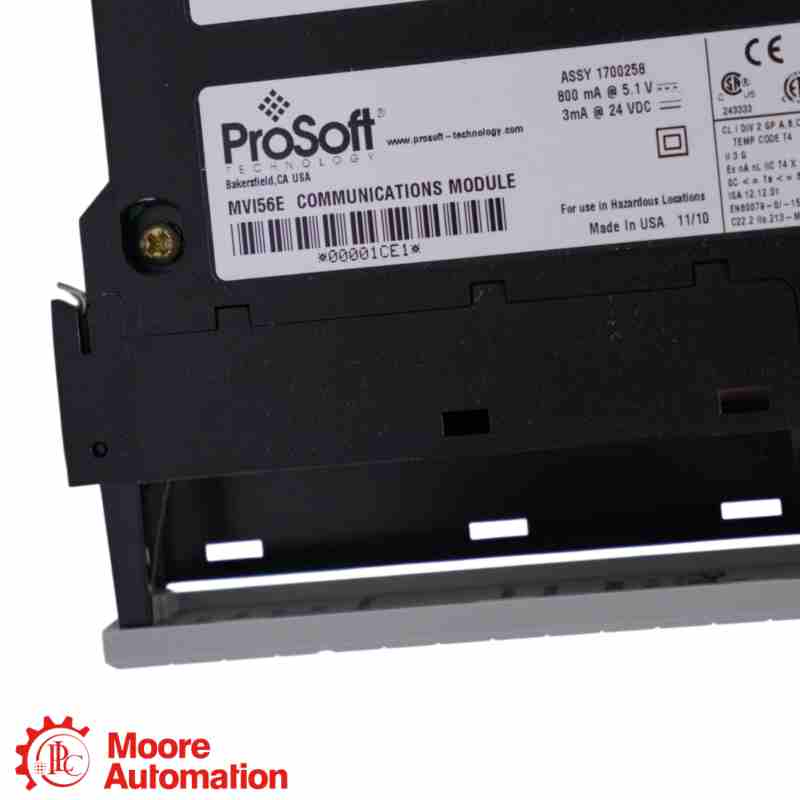

The MVI56-MCM is a ProSoft Technology Modbus Communication Module for the ControlLogix platform. It provides two configurable serial application ports for Modbus RTU or ASCII master/slave communication.

PRODUCT TYPEMODBUS COMMUNICATION MODULE
PLATFORMCONTROLLOGIX
PROTOCOLMODBUS RTU / ASCII
APPLICATIONControlLogix-to-Modbus serial integration
MANUFACTURERProSoft Technology
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Informarsi ora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
ProSoft Technology ● CONTROLLOGIX MODBUS MODULE
PROSOFT TECHNOLOGY CONTROLLOGIX MODULE

MVI56-MCM

MODBUS COMMUNICATION MODULE

CONTROLLOGIX PLATFORM · MODBUS RTU / ASCII · MASTER / SLAVE

MODULE ROLE
MVI56-MCM is ProSoft Technology’s ControlLogix Modbus Communication Module. Its two serial application ports can be configured independently for Modbus RTU or ASCII master/slave operation.
CONFIGURATION NOTE
For MVI56-MCM, match the ControlLogix slot, I/O mapping, serial interface, port master/slave role, baud rate and Modbus RTU/ASCII configuration.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
OFFICIAL MANUFACTURER SPECIFICATIONS

Technical Specifications

OPEN OFFICIAL MANUAL ↗
MVI56-MCM MODBUS COMMUNICATION MODULE

Identification data at a glance

Click “+” to expand more specifications.

EXACT MODELMVI56-MCM
PLATFORM FAMILYMVI56 · ControlLogix
MODEL DESIGNATIONMCM · Modbus Communication Module
LIFECYCLELegacy product
The complete MVI56-MCM designation identifies the ProSoft ControlLogix Modbus Communication Module.
Legacy replacement referenceProSoft lists MVI56E-MCM as the current replacement for MVI56-MCM. Confirm the installed program, I/O mapping and serial-port configuration before migration.
GENERAL INFORMATION −
BrandProSoft Technology
ModelMVI56-MCM
Product typeModbus Communication Module
PlatformControlLogix
Protocol modesModbus RTU and Modbus ASCII
Operating roleMaster or Slave
Application ports2 serial ports
LifecycleLegacy product
SERIAL COMMUNICATION ＋
InterfacesRS-232, RS-422 and RS-485
Baud rate110 to 115,200 baud
ParityNone, odd or even
Data bits5, 6, 7 or 8
Stop bits1 or 2
RTS delay0 to 65,535 ms
Application-port connectorRJ45; DB-9M supplied cable
Backplane isolation500 V optical isolation
POWER & ENVIRONMENT ＋
Backplane current800 mA @ 5 VDC; 3 mA @ 24 VDC
Operating temperature0 to 60°C (32 to 140°F)
Storage temperature-40 to 85°C (-40 to 185°F)
Relative humidity5 to 95%, non-condensing
Shock30 g operating; 50 g non-operating
Vibration5 g from 10 to 150 Hz
DOCUMENTATION & LIFECYCLE ＋
Official documentMVI56-MCM User Manual
I/O mapping250 input words; 248 output words
Replacement modelMVI56E-MCM
Order checkMatch the complete MVI56-MCM nameplate and configuration
Source: ProSoft Technology MVI56-MCM User Manual and official legacy-product documentation.
FAQ

Questions Buyers Ask Most

What ControlLogix function does MVI56-MCM provide?＋

MVI56-MCM is ProSoft Technology’s general-purpose Modbus serial master/slave communication module for the ControlLogix platform.

Which Modbus modes does MVI56-MCM support?＋

MVI56-MCM supports Modbus RTU mode with CRC-16 and Modbus ASCII mode with LRC error checking.

Which serial interfaces are available on MVI56-MCM?＋

The two application ports support RS-232, RS-422 and RS-485. Each application port uses an RJ45 connector with a supplied DB-9M cable and provides 500 V optical isolation from the backplane.

What serial framing can be configured for MVI56-MCM?＋

The documented range is 110 to 115,200 baud, with 5, 6, 7 or 8 data bits, none/odd/even parity, and 1 or 2 stop bits.

What backplane current and temperature limits apply to MVI56-MCM?＋

The module draws 800 mA at 5 VDC and 3 mA at 24 VDC. The documented operating range is 0 to 60°C, with storage from -40 to 85°C.

What should be checked when replacing MVI56-MCM?＋

Match the complete module nameplate, ControlLogix slot, controller I/O mapping, master/slave role, serial interface and port parameters. ProSoft lists MVI56E-MCM as the current replacement model.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
MVI56-MCM

Official ProSoft Technology documentation for the MVI56-MCM ControlLogix Modbus Communication Module.

Official MVI56-MCM documentation

The official user manual covers hardware specifications, Modbus master/slave operation, supported function codes, port configuration and ControlLogix integration.

OPEN OFFICIAL MANUAL

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical values on this page are based on ProSoft Technology’s exact MVI56-MCM user manual and legacy-product documentation.

MODEL IDENTIFICATION

What the MVI56-MCM model code means

MVI56 identifies ProSoft’s ControlLogix in-chassis module family, while MCM is the Modbus Communication Module designation.

ProSoft Technology · BRAND
MVI56-MCMEXACT MODEL
MVI56

ControlLogix module family

Identifies the ProSoft in-chassis communication-module platform for ControlLogix.

MCM

Modbus Communication Module

Identifies the serial Modbus RTU/ASCII master/slave communication function.

COMPLETE REFERENCE

MVI56-MCM

The complete catalog number for the ControlLogix Modbus Communication Module.

Model meaning: MVI56-MCM combines the ControlLogix module family designation with the Modbus Communication Module identifier.
APPLICATION AREAS

Application map for MVI56-MCM

ControlLogix-to-Modbus IntegrationExchange serial Modbus data between a ControlLogix controller and compatible field devices.
Modbus Master NetworksIssue configurable Modbus commands to slave devices through either serial application port.
APPLICATION CENTERMVI56-MCMControlLogix · Modbus RTU/ASCII · master/slave
Modbus Slave ConnectivityExpose module data to a remote Modbus master through an application port configured as a slave.
Local or Remote ControlLogix ChassisApply the general-purpose module in a local chassis or a remote chassis connected via Ethernet.
ABOUT MOORE AUTOMATION

A trusted industrial automation sourcing partner

Moore Automation Limited supplies industrial automation spare parts to customers worldwide, with dedicated sourcing, part-number verification, pre-shipment confirmation and responsive sales support.
