 /Siemens 6ES7288-1SR30-0AA1 SIMATIC S7-200 SMART CPU SR30 Controller

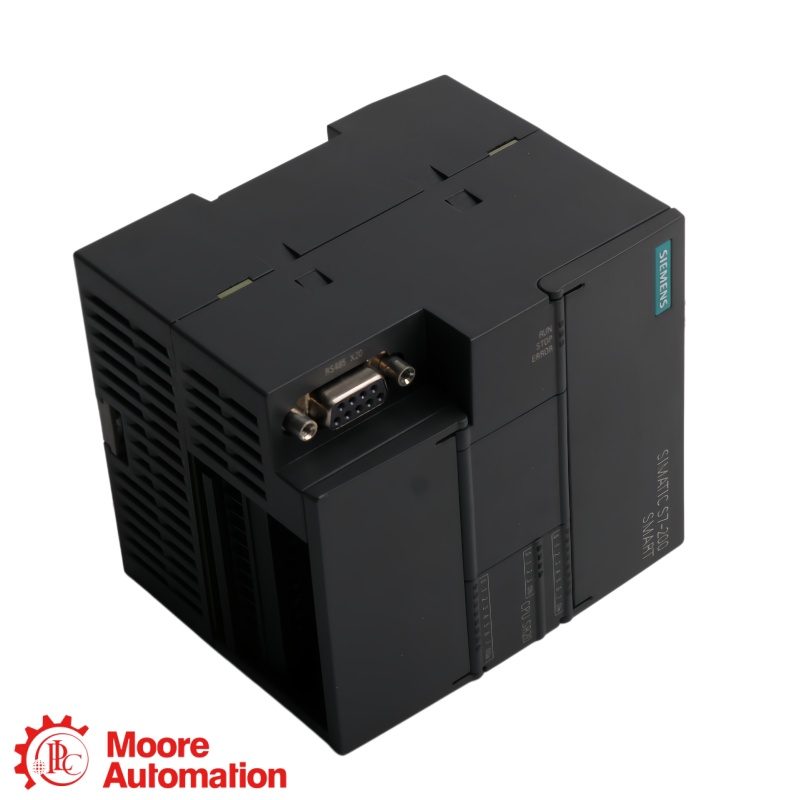

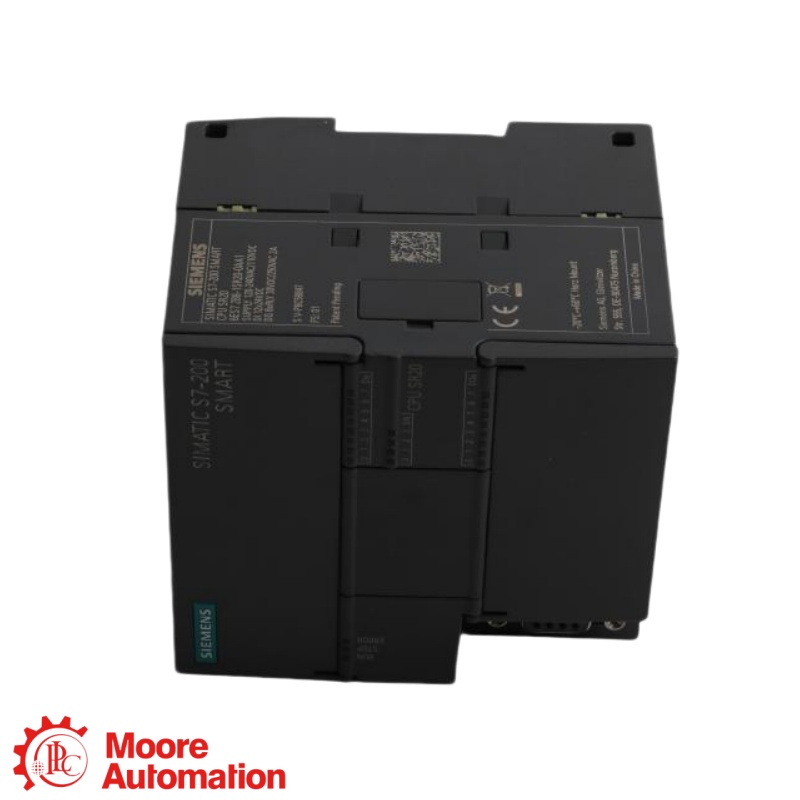

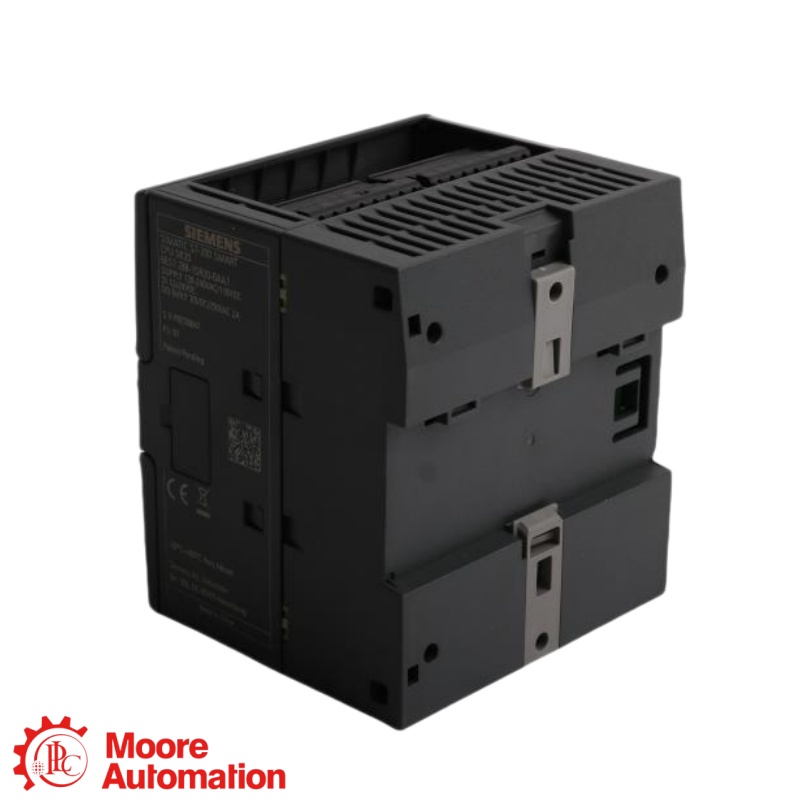

Siemens 6ES7288-1SR30-0AA1 SIMATIC S7-200 SMART CPU SR30 Controller
Siemens 6ES7288-1SR30-0AA1 SIMATIC S7-200 SMART CPU SR30
Siemens 6ES7288-1SR30-0AA1 SIMATIC S7-200 SMART CPU SR30

Siemens 6ES7288-1SR30-0AA1 SIMATIC S7-200 SMART CPU SR30 Controller

SIMATIC S7-200 SMART · CPU SR30

6ES7288-1SR30-0AA1

The 6ES7288-1SR30-0AA1 is a Siemens SIMATIC S7-200 SMART CPU SR30 PLC with 18 digital inputs, 12 relay outputs and integrated PROFINET communication.

INPUTS18 DI
OUTPUTS12 Relay
SUPPLY85–264 VAC
MEMORY30 KB
MANUFACTURERSiemens
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Informarsi ora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
SIEMENS ● STANDARD CPU
SIMATIC S7-200 SMART PLC

6ES7288-1SR30-0AA1

CPU SR30

Standard CPU · AC/DC/Relay

MEASUREMENT ROLE
6ES7288-1SR30-0AA1 is a standard SIMATIC S7-200 SMART CPU with onboard 18 DI at 24 V DC, 12 relay outputs rated 2 A and integrated communication interfaces.
CONFIGURATION NOTE
For 6ES7288-1SR30-0AA1, Siemens specifies an 85–264 V AC supply, 30 KB program/data memory and onboard PROFINET plus RS485 communication.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the order number identifies this CPU

6ES7288
Product familySIMATIC S7-200
SMART
1SR30
CPU version
0AA1
Order suffix
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

SIMATIC S7-200 SMART ↗
S7-200 SMART CPU FAMILY

Engineering data at a glance

Click “+” to expand more specifications.

LENGTH11 cm
WIDTH10 cm
HEIGHT8.1 cm
WEIGHT0.435 kg
Official Siemens product data.
Official product verification Verify the complete order number 6ES7288-1SR30-0AA1and electrical version against the current official Siemens datasheet before ordering.
General Information −
BrandSiemens
Part number6ES7288-1SR30-0AA1
Product typeCPU SR30 AC/DC/Relay
Product familySIMATIC S7-200 SMART
Mounting styleDIN rail
Engineering softwareSTEP 7 Micro/WIN SMART
Onboard I/O and Memory ＋
Digital inputs18 DI, 24 V DC
Digital outputs12 relay outputs, 2 A
Program / data memory30 KB total
Performance and Communication ＋
Bit execution time150 ns
PROFINET10/100 Mbps controller/device
Serial interfaceRS485
Power loss14 W maximum
Functions6 counters, up to 8 PID loops
Environment and Certification ＋
Operating temperature: −20 to +60 °C for horizontal mounting and −20 to +50 °C for vertical mounting. Maximum relative humidity is 95%, non-condensing.
Source: Siemens official technical datasheet for 6ES7288-1SR30-0AA1.
FAQ

Questions Buyers Ask Most

What is 6ES7288-1SR30-0AA1 used for?＋

6ES7288-1SR30-0AA1 is a compact SIMATIC S7-200 SMART CPU for machine and process automation with onboard digital I/O.

How many onboard I/O points are provided?＋

6ES7288-1SR30-0AA1 provides 18 digital inputs at 24 V DC and 12 relay outputs rated 2 A.

What supply does CPU SR30 require for 6ES7288-1SR30-0AA1?＋

The SR30 AC/DC/Relay version accepts an 85–264 V AC supply at 47–63 Hz .

Which communication interfaces are available on CPU SR30 ?＋

The CPU includes PROFINET 10/100 Mbps and an RS485serial interface.

What should I provide for a quotation?＋

For 6ES7288-1SR30-0AA1, send the complete order number, quantity, required I/O configuration, destination and any compatibility questions.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
6ES7288-1SR30-0AA1

Official Siemens documentation for the SIMATIC S7-200 SMART CPU SR30.

SIMATIC S7-200 SMART CPU SR30

Siemens technical datasheet for 6ES7288-1SR30-0AA1, including electrical, I/O, memory, communication, environmental, dimension and weight data.

OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements on this product page are based on publicly available official Siemens manufacturer documentation.

S7-200 SMART SYSTEM RELATIONSHIP

How CPU SR30 Fits into the SIMATIC S7-200 SMART System

Siemens is the brand; SIMATIC S7-200 SMART is the PLC family; and 6ES7288-1SR30-0AA1 is the CPU SR30 AC/DC/Relay model with onboard I/O and communication.

Siemens · BRAND
SIMATIC S7-200 SMARTPLC FAMILY · AUTOMATION SYSTEM
PROCESSING CORE

CPU SR30

CPU SR30 executes the user program and manages its onboard 18 digital inputs and 12 relay outputs.

ENGINEERING

STEP 7 Micro/WIN SMART

STEP 7 Micro/WIN SMART is used to configure, program and commission the S7-200 SMART CPU.

COMMUNICATION

PROFINET and RS485

Integrated PROFINET and RS485 interfaces connect the CPU with HMI, controllers and field devices.

System relationship: verify the complete CPU order number, power version, I/O needs and compatible S7-200 SMART expansion modules.
APPLICATION AREAS

Application mind map for the S7-200 SMART CPU SR30

Machine ControlLogic and sequence control for compact machines
Packaging LinesOnboard digital I/O and relay switching
APPLICATION CENTER CPU SR30 Compact PLC automation
Building SystemsControl of pumps, fans and auxiliary equipment
OEM EquipmentCost-effective automation for production equipment
