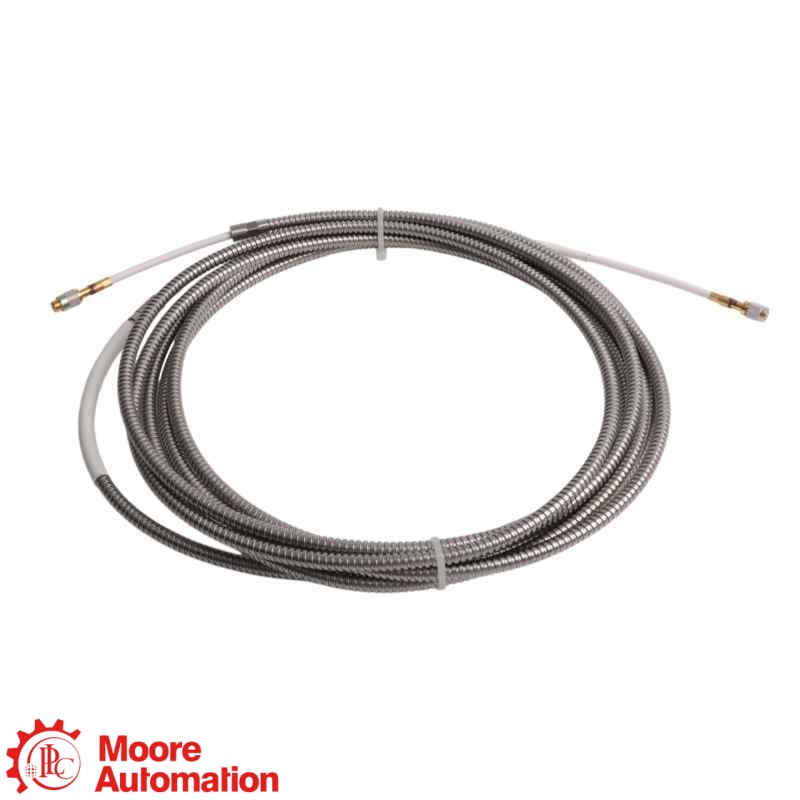

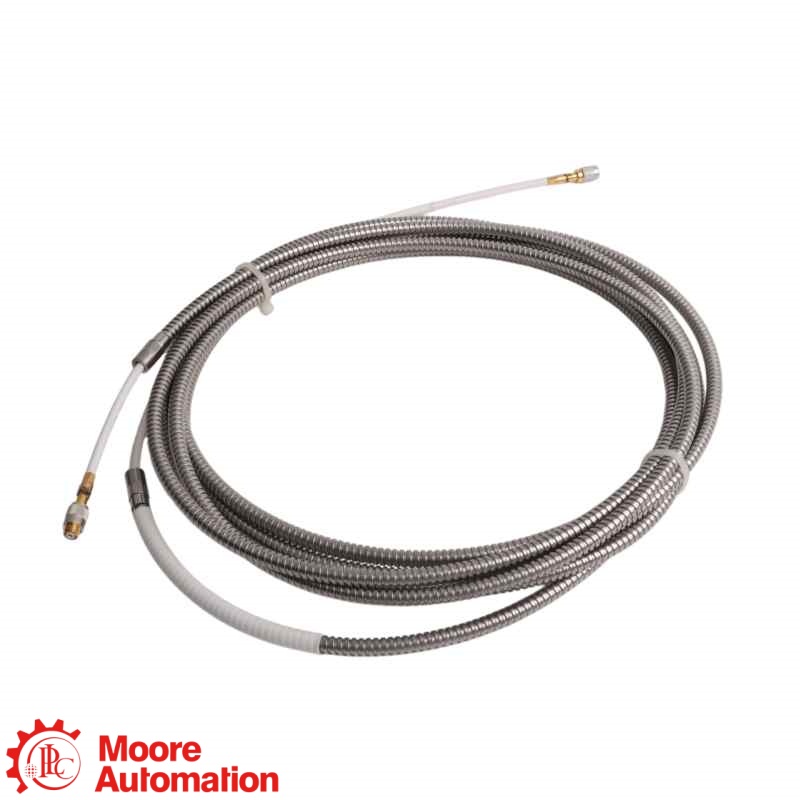

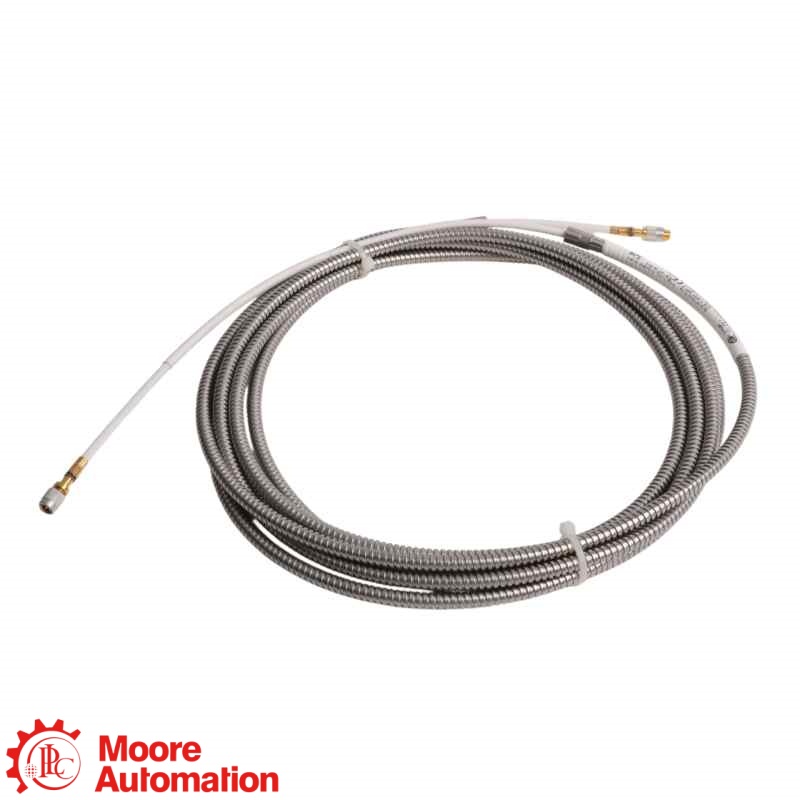

 /Vibro-Meter EA402 913-402-000-012 Extension Cable
Vibro-Meter EA402 913-402-000-012 Extension Cable
Vibro-Meter EA402 913-402-000-012 Extension Cable
Vibro-Meter EA402 913-402-000-012 Extension Cable

Vibro-Meter EA402 913-402-000-012 Extension Cable

Vibro-Meter EA402 913-402-000-012

EA402 913-402-000-012

The EA402 913-402-000-012 is a Meggitt Vibro-Meter extension cable used to connect compatible TQ422 or TQ432 proximity transducers to an IQS450 signal conditioner and extend the measurement-chain front end.

MODULE TYPEEA402 extension cable
SYSTEM FAMILYTQ422 / TQ432 / EA402 / IQS450
COMPATIBILITYTQ422 / TQ432 / IQS450
ORDERING NUMBER913-402-000-012
MANUFACTURERMeggitt vibro-meter
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Informarsi ora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
VIBRO-METER ● EA402 EXTENSION CABLE
Vibro-Meter EA402

EA402 913-402-000-012

913-402-000-012 · COMPLETE ORDERING REFERENCE

Extension cable for compatible TQ4xx proximity measurement chains

MODULE ROLE
EA402 913-402-000-012 is a Meggitt Vibro-Meter extension cable that connects compatible TQ422 or TQ432 proximity transducers to an IQS450 signal conditioner and extends the measurement-chain front end.
CONFIGURATION NOTE
For EA402 913-402-000-012, confirm the complete nameplate reference, extension-cable length, environment code, optional protective hose or FEP sheath, connector protection and the matching TQ422/TQ432 and IQS450 configuration before replacement.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Meggitt Vibro-Meter ↗
EA402 EXTENSION CABLE

Engineering data at a glance

Click “+” to expand more specifications.

MODULE TYPEEA402 extension cable
CABLE CONSTRUCTIONFEP-covered 70 Ω coaxial cable
SYSTEMTQ422 / TQ432 / EA402 / IQS450
REFERENCE CHECKVerify complete 913-402-000-012 nameplate
Official Meggitt Vibro-Meter TQ422/TQ432, EA402 and IQS450 family data-sheet reference.
Official product verificationVerify the complete ordering reference EA402 913-402-000-012, including every suffix and option field shown on the nameplate. The current official data sheet documents EA402 ordering base 913-402-000-013, so the supplied 913-402-000-012 reference must be checked against the installed label or applicable legacy documentation.
GENERAL INFORMATION−
Brand / product lineMeggitt Vibro-Meter
Ordering numberEA402 913-402-000-012
Product typeVibro-Meter EA402 extension cable
System familyTQ422 / TQ432 / EA402 / IQS450
Cable roleExtends the front end between compatible proximity transducers and an IQS450 signal conditioner
Cable constructionFEP-covered 70 Ω coaxial cable, nominal diameter 3.6 mm
Documented family lengths4.0 m, 5.0 m and 9.0 m extension-cable options are listed for the current EA402 family
Cable / connector temperature−40 to +200 °C for the EA402 family cable and connector
Family environment optionsStandard, Ex i and Ex nA family configurations are listed in the current ordering table
Compatible signal conditionerIQS450 in documented TQ422/TQ432 proximity measurement chains
Cable and Measurement Chain Configuration＋
Compatible chain componentsTQ422 or TQ432 transducer with an EA402 extension cable and IQS450 signal conditioner
Cable connectionsSelf-locking miniature coaxial plug and jack connections in the documented EA402 family
Cable constructionFEP-covered 70 Ω coaxial cable with a nominal 3.6 mm diameter
System Integration and Installation＋
Cable roleExtends the front end between compatible proximity transducers and an IQS450 signal conditioner
Compatible measurement chainTQ422/TQ432, EA402 and IQS450 proximity measurement family
Total chain lengthMatch the EA402 extension length to the transducer integral cable and required total measurement-chain length
Installation verificationConfirm the exact PNR, cable length, environment option, protective hose or FEP sheath and connector-protection option
Hazardous-area configurationEvery component in an Ex measurement chain must carry the appropriate Ex-certified option
Ordering and Reference Verification＋
Official Meggitt data sheet DS 265-064 covers the TQ422/TQ432, EA402 and IQS450 family. Its current ordering table documents EA402 base 913-402-000-013; verify the supplied 913-402-000-012 reference against the product nameplate or applicable legacy documentation.
FAQ

Questions Buyers Ask Most

What is EA402 913-402-000-012?＋

EA402 913-402-000-012 is an extension cable used between a compatible TQ422 or TQ432 proximity transducer and an IQS450 signal conditioner.

What cable construction is documented for EA402 913-402-000-012?＋

EA402 913-402-000-012 uses FEP-covered 70 Ω coaxial cable with self-locking miniature coaxial connectors in the official EA402 family data sheet.

Which components form the measurement chain with EA402 913-402-000-012?＋

EA402 913-402-000-012 is used with a compatible TQ422 or TQ432 proximity transducer and an IQS450 signal conditioner.

Which extension-cable lengths are documented for the EA402 family containing EA402 913-402-000-012?＋

EA402 913-402-000-012 belongs to an EA402 family whose current ordering table lists 4.0 m, 5.0 m and 9.0 m extension-cable options; the exact supplied PNR still requires verification.

What connector arrangement is documented for EA402 913-402-000-012?＋

EA402 913-402-000-012 uses self-locking miniature coaxial plug and jack connections in the documented EA402 family; confirm the installed chain before replacement.

Can EA402 913-402-000-012 be used in hazardous areas?＋

EA402 913-402-000-012 can be used in a hazardous-area measurement chain only when its exact environment option and the matching transducer and IQS450 conditioner certifications are confirmed.

What should be verified when ordering EA402 913-402-000-012?＋

EA402 913-402-000-012 should be checked by full nameplate reference, extension-cable length, environment code, protective hose or FEP sheath, connector protection and compatible TQ422/TQ432 and IQS450 references.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete nameplate PNR, extension-cable length, environment option, protective hose or FEP sheath, connector protection, matching TQ422/TQ432 and IQS450 references and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
OFFICIAL DATASHEET

Product Information for
EA402 913-402-000-012

No current official EA402 913-402-000-012 product datasheet was located in Meggitt Vibro-Meter public documentation. The current EA402 family sheet documents ordering base 913-402-000-013, so the supplied reference requires nameplate or applicable legacy-document verification.

Official datasheet status

For product documentation and compatibility details for EA402 913-402-000-012, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Use EA402 family documentation only for base-family context, and verify the complete 913-402-000-012 reference directly from the product nameplate or applicable legacy documentation before replacement.

EA402 EXTENSION-CABLE RELATIONSHIP

How EA402 913-402-000-012 Fits a Vibro-Meter Proximity Measurement Chain

Meggitt Vibro-Meter is the product line; EA402 identifies the extension-cable family; and EA402 913-402-000-012 is the complete supplied product reference that must be matched to the installed nameplate.

Meggitt Vibro-Meter · PRODUCT LINE
TQ422/TQ432 sensor with EA402 cable and IQS450 conditionerPROXIMITY MEASUREMENT CHAIN · CABLE RELATIONSHIP
EXTENSION CABLE

EA402 · 913-402-000-012

The EA402 extension cable connects a compatible TQ422 or TQ432 transducer to an IQS450 signal conditioner and extends the measurement-chain front end.

SYSTEM FAMILY

TQ422 · TQ432 · EA402 · IQS450

The extension cable is used with compatible TQ422 or TQ432 transducers and an IQS450 signal conditioner; cable options and total chain length must be verified.

CABLE CHARACTERISTICS

FEP-covered 70 Ω coaxial cable · Self-locking miniature connectors

The EA402 family data sheet lists standard and Ex environment options plus optional hose, sheath and connector protection; verify the exact 913-402-000-012 configuration.

Compatibility check: verify the complete 913-402-000-012 PNR, extension-cable length, environment option, protective hose or FEP sheath, connector protection and matching TQ422/TQ432 and IQS450 references before replacement.
APPLICATION AREAS

Application map for EA402 913-402-000-012

Proximity Chain ExtensionConnects the compatible transducer cable to the IQS450 signal conditioner across the required installation distance
High-Temperature Cable RoutingThe documented EA402 family cable and connectors are rated from −40 to +200 °C
APPLICATION CENTEREA402 913-402-000-012Vibro-Meter extension cable for compatible proximity measurement chains
Hydraulic Machinery Monitoring ChainsSupports TQ422/TQ432 measurement chains used on submerged pumps and hydraulic turbines
Hazardous-Area Measurement ChainsSupports appropriately Ex-certified transducer, cable and conditioner combinations
