214-2BM02 - VIPA CPU Module

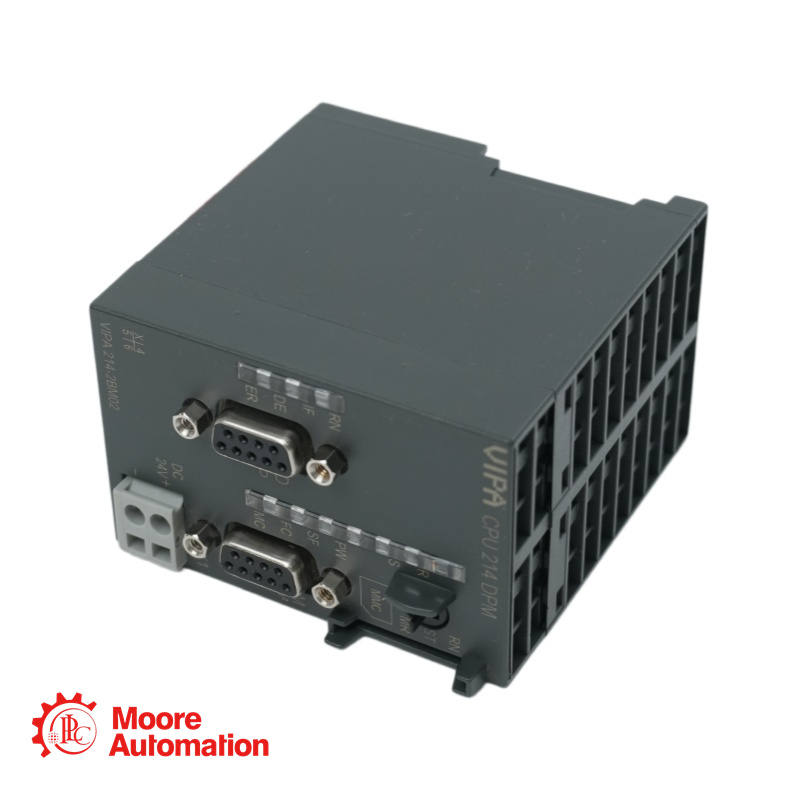

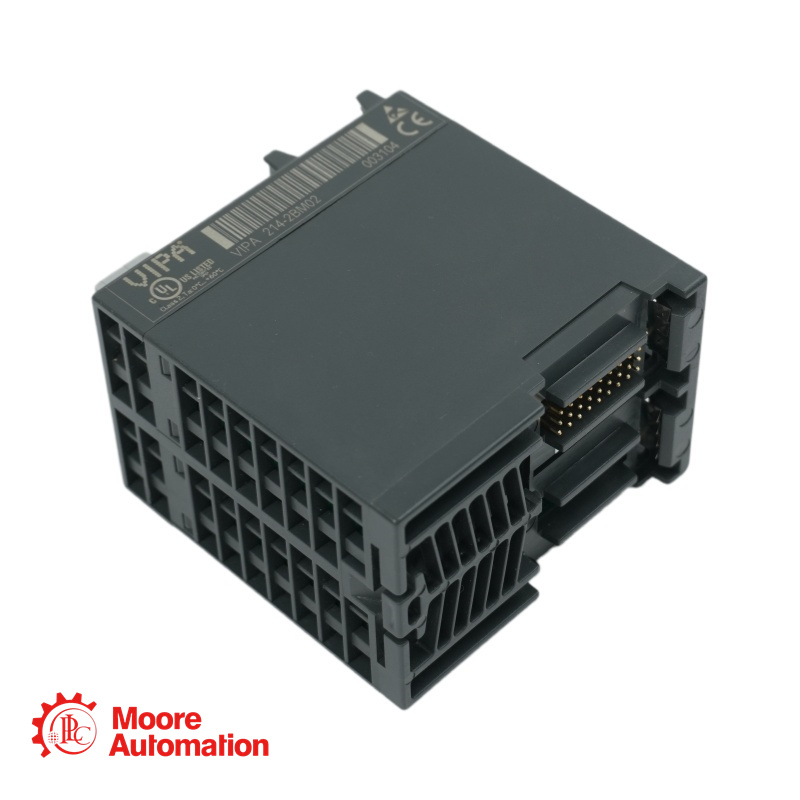

VIPA 214-2BM02 CPU Module

Sales Manager: Frida

Email: sales5@mooreplc.com

The 214-2BM02 is a compact, high-performance CPU module manufactured by VIPA under the System 200V product lineup.

Type:CPU 214DPM
Features:
PROFIBUS-DP master
48 kB work memory
80 kB load memory
Power supply (rated value):DC 24 V
Power supply (permitted range):DC 20.4...28.8 V
Current consumption (rated value):1.5 A
Max. current drain at backplane bus:3 A
Load memory, integrated:80 KB
Work memory, integrated:48 KB

Q: What are the memory capacities of this CPU?
A:Work Memory: 48 KB.Load Memory: 80 KB.

Q: What is the MP2I interface used for?
A:The MP2I connector combines MPI (Multi-Point Interface) and a serial connection.

Q: How do I configure the PROFIBUS-DP network parameters?
A:Baud Rate: Supports transmission speeds from 9.6 kbit/s up to 12 Mbit/s.
