Marca :
SiemensNumero parte :
6DD1601-0AH0Il peso :
0.548 KgDimensione :
27.6 x 27.6 x 4.5 cmPaese d'origine :
GermanyCodice SA :
8537101190Descrizione :
Expansion Module
|
Get the best price now! |
|
|
Contact Frida Sales Champion |
|
|
Phone/Whatsapp: |
|
|
Email: |
|
🔹Quick Overview
Short Description

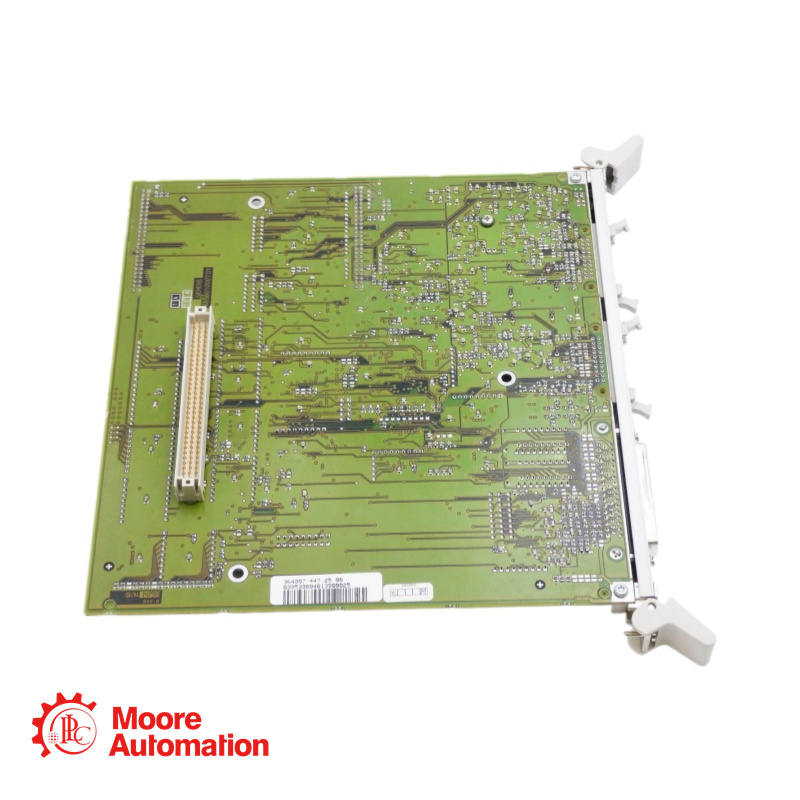

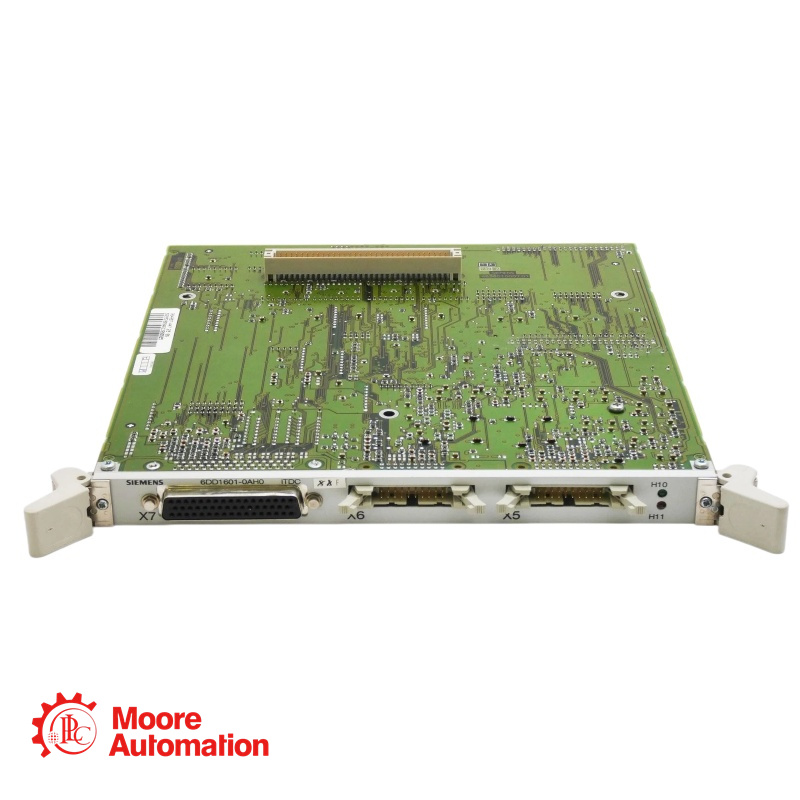

The 6DD1601-0AH0 ITDC expansion module corresponds to the earlier PG16 module, and provides the gating (control) for
• line-commutated drive converters.
It is especially suitable for connection to SITOR power sections.
The expansion module is inserted on a CPU module (PM5, PM6). A
maximum of 2 expansion modules ITxx can be inserted on a CPU module.
One ITxx occupies 1 slot (in addition to the slot in the CPU module).
Presently, the operation of 2 ITDC modules in one processor module is not supported.
🔹Key Technical Data
Type:Expansion module for CPU modules (PM5, PM6)
Application:Gating control for line-commutated converters (SITOR interface)
Inputs / Outputs:1 SITOR interface; 2 analog outputs; 4 binary outputs; 4 binary inputs; 1 incremental encoder input
Encoder Input:15 V (HTL) or 5 V encoders (selectable via DIL switch S1), max. 1 MHz pulse frequency, with zero pulse, tracks shifted through 90° (A, B)
Analog Outputs:2 outputs, -10 V to +10 V, +/- 10 mA, 12-bit resolution
Binary Inputs:4 inputs, 24 V DC rated, 0 signal: -1 V to +6 V, 1 signal: +13 V to +33 V
Binary Outputs 4 outputs, external 24 V DC supply, 50 mA rated current, short-circuit proof
Power Supply (Typ.):+5 V / 100 mA; +15 V / 490 mA (+ encoder load); -15 V / 75 mA; +24 V (ext.) / 70 mA (+ load of binary outputs)
🔹Stock & Delivery
◆Stock Status: In Stock / Limited / Available on Request
◆Warehouse: Xiamen
◆Lead Time: 1–3 days to arrive our warehouse / 1 week to arrive your place
◆Shipping: DHL / FedEx / UPS
Urgent orders supported – Large inventory to support fast shipment
🔹Packaging & Handling
◆Original new items with factory seal
◆Anti-static packaging
◆Shockproof protection
◆Industrial-grade packing materials
🔹Why Choose Us
◆Large inventory (30,000+ spare parts)
◆Fast global shipping
◆20+ years industry experience
◆Support for obsolete and hard-to-find parts
◆ Competitive pricing
|
