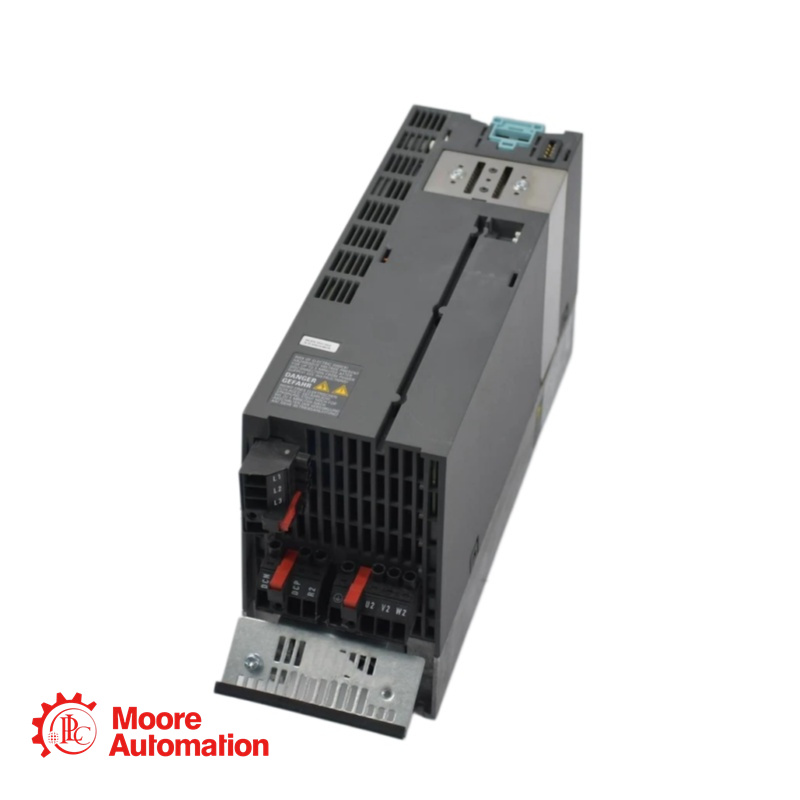

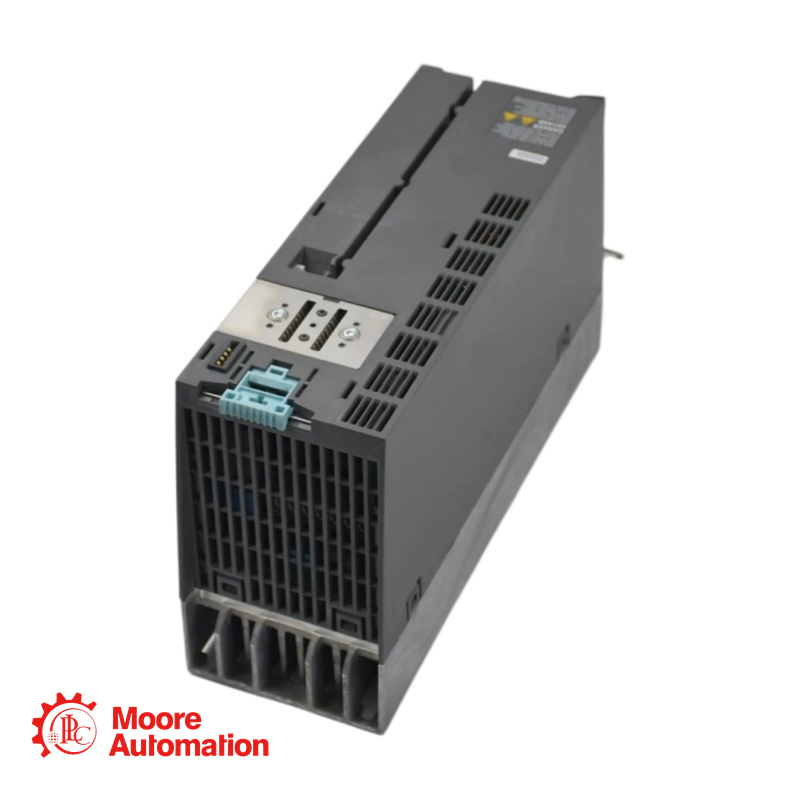

6SL3210-1PE21-8AL0 Siemens Power Module

Contact Below to Get Best Price
Contact-- Frida
Email--sales5@mooreplc.com
Mobile(WhatsApp)-- +86 15359408275

Description of 6SL3210-1PE21-8AL0

The Siemens 6SL3210-1PE21-1AL0 is a power module from the SINAMICS family of drives. It is a 3-phase AC input device designed for controlling motors with a rated output power of up to 4.00 kW. The module features an integrated internal air cooling system and complies with multiple international standards, including UL, cUL, and CE. It is suitable for standard drive applications with vector or V/f control and offers distinct overload capabilities for Low Overload (LO) and High Overload (HO) operating modes.SINAMICS POWER MODULE PM240-2 WITH BUILT IN CL. A FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 5,5KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT LOW OVERLOAD: 7,5KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -10 TO +40 DEG C 291 X 100 X 165 (HXWXD), FSB PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.6

Parameter

Input (Line Side)
Number of phases: 3 AC
Line voltage: 380 ... 480 V ± 10 %
Line frequency: 47 ... 63 Hz
Rated current (LO): 22.20 A
Rated current (HO): 19.80 A

Output (Motor End)
Number of phases: 3 AC
Rated voltage: 400V IEC / 480V NEC
Rated power (LO): 7.50 kW / 10.00 hp
Rated power (HO): 5.50 kW / 7.50 hp
Rated current (LO): 18.00 A
Rated current (HO): 13.20 A
Max. output current: 27.00 A
Pulse frequency: 4 kHz
Output frequency (Vector control): 0 ... 200 Hz
Output frequency (V/f control): 0 ... 550 Hz

FAQ

When should I choose the High Overload (HO) mode instead of Low Overload (LO)?
A: Choose High Overload (HO) if your application requires high starting torque or handles heavy transient loads, as it provides 150% overload for 57s and 200% for 3s. Choose Low Overload (LO) for applications with a steady load that only occasionally peaks slightly above the continuous rating, as it offers a higher continuous output current (18.00 A vs. 13.20 A) for the same hardware.

What is the significance of the "0.009 m³/s cooling air requirement"?
A: This is the minimum airflow required to properly cool the drive's internal heatsink. When installing the module in an enclosure, the cabinet ventilation or cooling system must be designed to provide at least this amount of airflow through the drive to prevent it from overheating and derating or tripping on a thermal fault.

Can I use a motor cable longer than 100 m?
A: The datasheet specifies a maximum unshielded cable length of 100 m (50 m for shielded). Using longer cables can cause voltage spikes at the motor terminals due to cable capacitance and reflections, which can stress the motor insulation and the drive's output components. If a longer run is required, it is strongly recommended to install a motor reactor or an output dv/dt filter between the drive and the cable.
