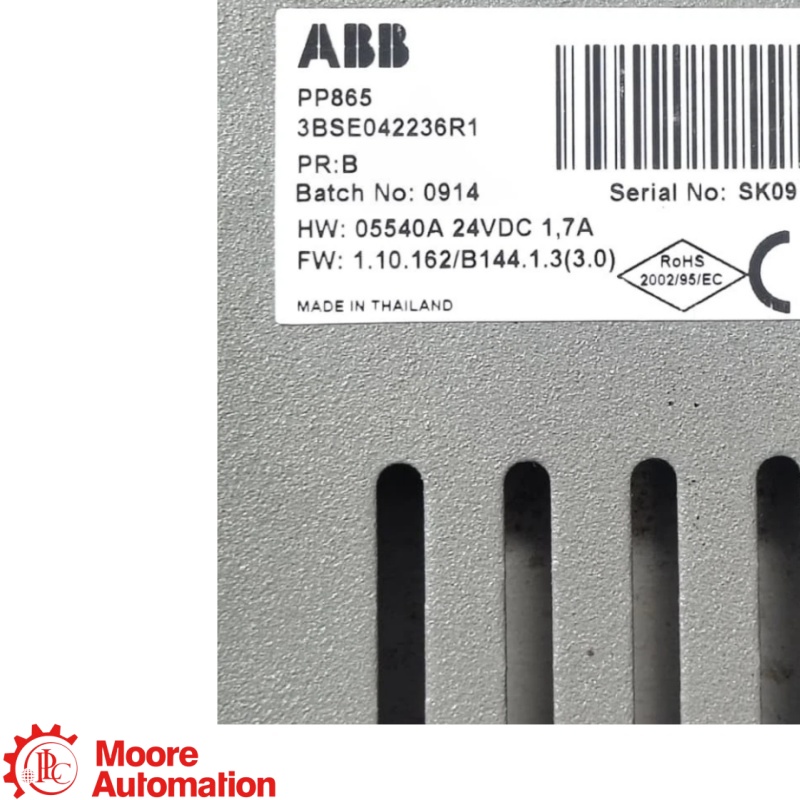

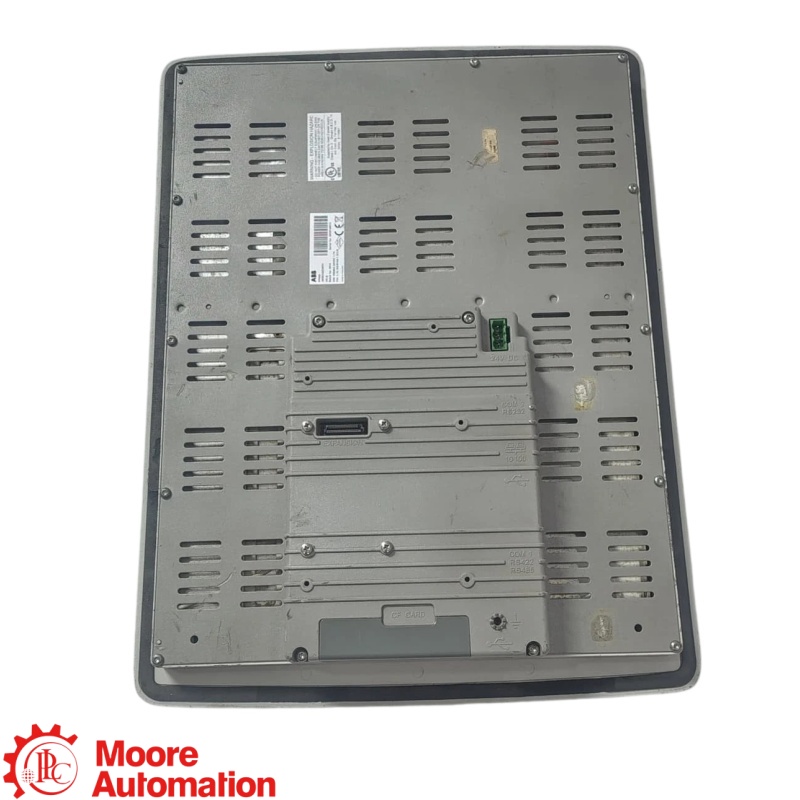

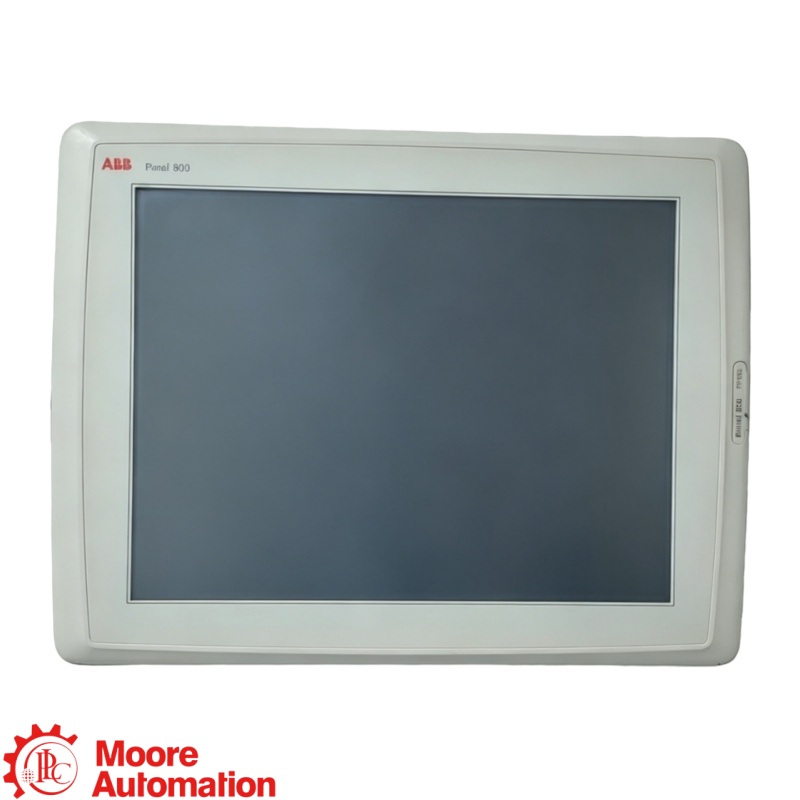

ABB PP865 Panel 800 Operator Panel
ABB PP865 Panel 800 Operator Panel
ABB PP865 Panel 800 Operator Panel

ABB PP865 Panel 800 Operator Panel

ABB PANEL 800 · OPERATOR HMI

PP865

The ABB PP865 is a Panel 800 operator panel for industrial process visualization and touch control. It combines a 1024 × 768 TFT display with built-in Ethernet, serial and USB interfaces and is configured using Panel Builder 800.

DISPLAYTFT-LCD · 64K COLORS
RESOLUTION1024 × 768 PIXELS
INTERFACESEthernet · Serial · USB
SUPPLY24 V DC · 20–30 V
MANUFACTURERABB
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Informarsi ora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
ABB ↗PANEL 800 OPERATOR HMI
PANEL 800 HUMAN-MACHINE INTERFACE

PP865

PANEL 800 VERSION 5.1

Operator panel · 1024 × 768 TFT touch display · Ethernet, serial and USB interfaces · Panel Builder 800 configuration.

PRODUCT ROLE

PP865 is an ABB Panel 800 operator panel for process visualization, touch control, alarms, trends and recipe handling. It is configured in Panel Builder 800 and connects through built-in Ethernet, serial and USB interfaces; PROFIBUS DP requires an optional expansion module.

CONFIGURATION NOTE

Confirm the ABB PP865 product identity, 20–30 V DC supply, panel cut-out, grounding, shielded communication cabling, Panel Builder 800 project and connected-system compatibility before replacement.

👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
MODEL ANALYSIS

PP865 model identification

PP865
Complete model ABB Panel 800 operator panel
VERIFIED MANUFACTURER-REFERENCE DATA

Technical Specifications

ABB PP865 ↗
General Information−
BrandABB
ModelPP865
Product familyPanel 800 version 5.1
Product typeHuman-machine interface operator panel
Configuration softwarePanel Builder 800
Primary functionsVisualization, control, alarms, trends and recipes
Display and Memory＋
DisplayTFT-LCD, 64K colors
Resolution1024 × 768 pixels
Active display area304.1 × 228.1 mm
Touch surfacePolyester on glass, 1 million finger operations
Application flash12 MB including fonts
External storageCompactFlash type I and II
Communication Interfaces＋
Ethernet1 × shielded RJ45
Serial COM1RS422 / RS485, 25-pin D-sub female
Serial COM2RS232C, 9-pin D-sub male
USB hostType A, USB 1.1, maximum 500 mA
USB deviceType B, USB 1.1
PROFIBUS DPRequires the specified optional expansion module
Power and Mechanical＋
Power supply+24 V DC, 20 to 30 V DC
Current at rated voltage1.2 A normal; 1.7 A maximum
Front dimensions398 × 304 × 6 mm
Mounting depth60 mm; 160 mm including clearance
Panel cut-out355.5 × 278.5 mm
Weight3.7 kg
Environment and Protection＋
Front protectionIP66
Rear protectionIP20
Vertical installation0°C to +50°C
Horizontal installation0°C to +40°C
Storage temperature−20°C to +70°C
Relative humidity5% to 85%, non-condensing
Installation Compatibility＋
Mounting plate thickness1.5 to 9.0 mm
GroundingPanel and controller must share reference ground
Communication cablesShielded; separate from high-voltage wiring
Project compatibilityConfirm Panel Builder 800 project and panel system software
Replacement conditionBack up the HMI project before removal
Controller connectionVerify selected driver, serial pinout or Ethernet settings
Source: ABB Panel 800 PP865 Version 5.1 Hardware and Installation manual, document 3BSE043448R501. Values apply under ABB’s stated installation conditions.
FAQ

Questions Buyers Ask Most

What is the ABB PP865 used for?−
The ABB PP865 is a Panel 800 human-machine interface that displays process information and lets an operator control equipment, acknowledge alarms, view trends and use recipes. Its Panel 800 version 5.1 hardware must run a compatible Panel Builder 800 project and communicate through a supported controller driver.
Which communication interfaces are built into PP865?＋
PP865 provides one shielded Ethernet RJ45 port, one RS422/RS485 25-pin D-sub port, one RS232C 9-pin D-sub port, USB 1.1 host and device connections, and CompactFlash support. The selected ABB or third-party controller driver, cable pinout and network settings must match the installed system.
Does PP865 include native PROFIBUS DP?＋
No. PP865 is the operator-panel entity, and its standard interfaces are Ethernet, serial and USB. PROFIBUS DP operation requires the specified optional expansion module, so the expansion hardware, project configuration and fieldbus addressing must be confirmed separately.
Is PP865 a PLC or an I/O module?＋
No. PP865 is an HMI operator panel, not a controller CPU and not a remote-I/O interface. It visualizes and sends operator commands through a configured communication driver; the controller remains responsible for executing the control logic and handling field I/O.
Can PP865 be replaced directly by a newer Panel 800 model?＋
Not automatically. Newer Panel 800 panels may use different dimensions, cut-outs, processors, ports, runtime versions and project-conversion requirements. Replacement is valid only after checking the 355.5 × 278.5 mm cut-out, 24 V DC supply, communications, Panel Builder project conversion and available mounting clearance.
What must be confirmed before installing or replacing PP865?＋
Confirm the complete PP865 nameplate, 24 V DC polarity and 20–30 V range, 398 × 304 mm front size, cut-out and 160 mm clearance, protective-earth connection, ambient orientation limits, Ethernet or serial wiring, controller driver, saved HMI project, system software and any required approvals.
CONTACT PRODUCT SPECIALIST

Confirm your PP865 configuration with Frida

Share the complete PP865 nameplate, Panel Builder project, controller driver, power and mounting details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
OFFICIAL DATASHEET

ABB PP865 Product Information

Official ABB hardware, installation and technical data for the PP865 Panel 800 operator panel, version 5.1.

PP865 Hardware and Installation

ABB documents PP865 as a Panel 800 HMI with a 1024 × 768 TFT touch display, Ethernet, RS232, RS422/RS485, USB 1.1, CompactFlash support and a 24 V DC supply.

OFFICIAL DATASHEET ↗

Contact to Get Support

Send the complete model, quantity, Panel Builder project version, controller interface and your technical or purchasing question.

Source: ABB Panel 800 PP865 Version 5.1 Hardware and Installation manual, document 3BSE043448R501.

ABB SYSTEM RELATIONSHIP

How PP865 fits into the ABB Panel 800 system

ABB ↗ is the manufacturer, Panel 800 is the HMI platform, PP865 is the complete operator-panel model and Panel Builder project compatibility defines its system role.

BRAND / PLATFORMABB · Panel 800
→
COMPLETE MODELPP865
→
PRODUCT ROLEOperator panel
DISPLAY

1024 × 768 TFT

INTERFACES

Ethernet · RS232 · RS422/485

PROJECT TOOL

Panel Builder 800

SUPPLY

24 V DC

INSTALLATION AND PROCUREMENT

What to confirm for PP865

Product Function

provides local process visualization, alarms, trends and touch control while communicating with the configured controller through the selected Ethernet or serial driver.

Complete Identifier

PP865

SYSTEM COMPONENTPP865PANEL 800 OPERATOR PANEL
Configuration Check

Confirm the complete PP865 nameplate, 24 V DC polarity and supply range, 398 × 304 mm front size, 355.5 × 278.5 mm cut-out, protective earth, Ethernet or serial wiring, controller driver and saved HMI project before replacement.

Quotation Details

Provide the complete model, quantity, Panel Builder project version, controller interface and mounting details.
