Why Is the Bently Nevada 3500 Series Considered a Benchmark in Machinery Protection?
The Bently Nevada 3500 Series is widely recognized as one of the most reliable and widely deployed machinery protection platforms in the world. Designed for continuous monitoring of critical rotating equipment, the system provides real-time vibration, position, and process data that helps prevent unexpected machine failures.
Industries such as power generation, oil and gas, petrochemical processing, and heavy manufacturing rely on the 3500 platform to protect turbines, compressors, pumps, and generators. By continuously comparing measured parameters against predefined alarm setpoints, the system enables early detection of abnormal machine behavior and allows operators to respond before catastrophic damage occurs.
A major advantage of the 3500 architecture is its modular design. Different monitoring modules and I/O modules can be combined to suit specific machinery protection requirements, making the platform flexible for a wide variety of industrial applications.

Core Technical Characteristics of the 3500 Monitoring System
The Bently Nevada 3500 Monitoring System integrates advanced signal processing, alarm management, and system diagnostics to ensure accurate machine condition monitoring.
Key technical capabilities include:
◆Continuous monitoring of vibration, position, speed, and pressure signals
◆Real-time comparison of monitored parameters with configurable alarm thresholds
◆Modular rack-based architecture for flexible expansion
◆Integration with multiple sensor types including proximity, velocity, acceleration, and pressure sensors
◆Reliable communication with plant control systems for automated protection responses
These capabilities allow maintenance teams to monitor machine health continuously while improving operational reliability and safety.

3500/46M Hydro Monitor Module: A Core Component of the 3500 Series Protection System
The Bently Nevada 3500/46M Hydro Monitor is a four-channel monitoring instrument designed specifically for hydroelectric and other rotating machinery applications.

This module can accept signals from multiple sensor types, including:

◆Proximity probes

◆Velocity sensors
◆Acceleration sensors
◆Air gap sensors
◆Dynamic pressure sensors
Once signals are received, the monitor conditions them to produce measurements such as vibration, shaft position, air gap, velocity, and pressure. These processed signals are then compared against user-defined alarm thresholds to ensure safe machine operation.
One advanced capability of the module is Hydro Radial Vibration monitoring, which combines shaft gap movement with the NX vibration amplitude. This allows the system to detect conditions such as shear-pin failure in hydro turbines.
The monitor can also support multiple machine operating modes. Using multimode configuration, each channel can store up to eight alarm parameter sets, allowing the system to automatically adjust monitoring thresholds when machine operating conditions change.

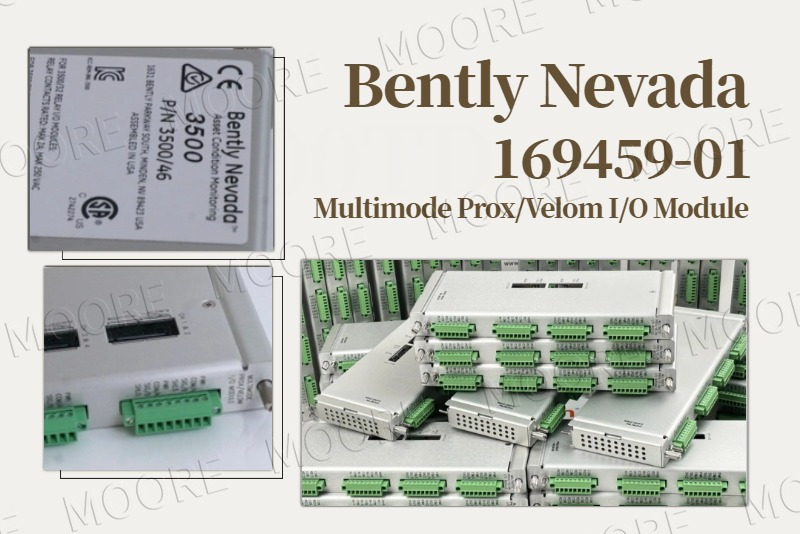

169459-01 Multimode Prox/Velom I/O Module: Flexible Sensor Integration
The Bently Nevada 169459-01 Multimode Prox/Velom I/O Module is designed to interface with the 3500/46M Hydro Monitor and other compatible modules within the 3500 system.
This I/O module enables the connection of various sensor types while providing internal terminations for simplified installation.
Key specifications include:
Sensor Inputs: Supports 1 to 4 proximity, air gap, velocity, or acceleration sensors
Power Consumption: Approximately 7.7 W (typical)
Input Impedance:
10 kΩ for Prox/Accel sensors
3.5 MΩ for Velomitor sensors
Output Impedance: 550 Ω
Multimode Positive Input I/O: 50 kΩ
The module also provides a transducer power supply of −23 Vdc (nominal) with a maximum current of 43 mA, ensuring stable operation of connected sensors.
Its multimode capability allows the system to adapt monitoring parameters based on machine operating modes, improving diagnostic accuracy and protection efficiency.

Recommended Best-Selling Models
Several popular modules in the Bently Nevada 3500 Series are widely used in industrial monitoring systems:
Bently Nevada 3500/46M 176449-06 Hydro Monitor
Bently Nevada 140471-01 Prox/Velom I/O Module
Bently Nevada 140482-01 Prox/Velom I/O Module
Bently Nevada 3500/44M 176449-03 Aeroderivative GT Vibration Monitor
Bently Nevada 126599-01 Multimode Prox/Velom I/O Module
These modules work together within the 3500 rack system to create a complete machinery monitoring and protection solution.
