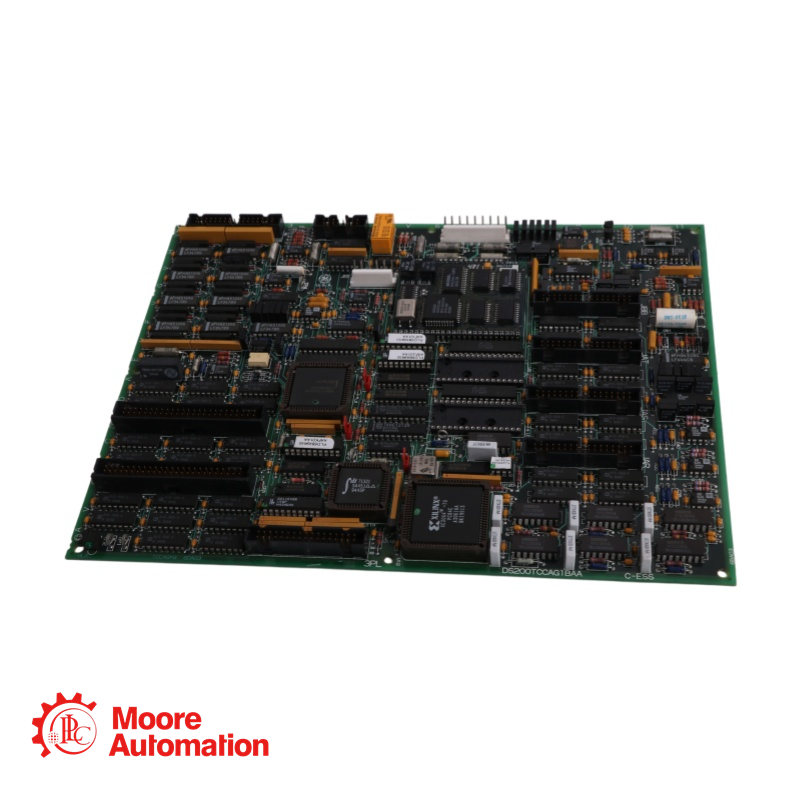

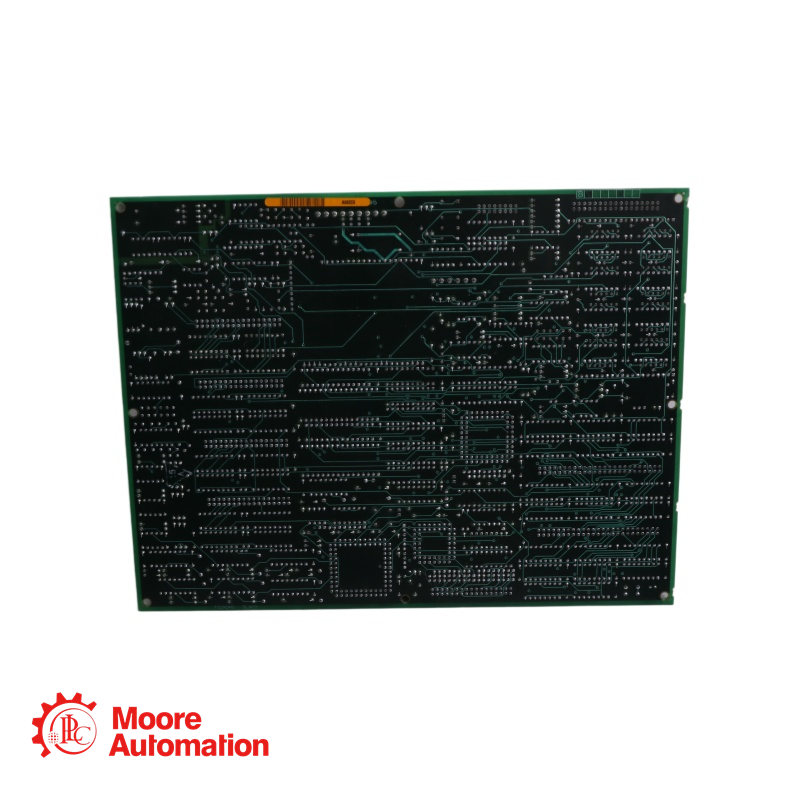

GE DS215TCCAG1BZZ01A DS200TCCAG1BAA Analog I/O Board

DS215TCCAG1BZZ01A DS200TCCAG1BAA is a TC2000 Common Analog I/O Board manufactured and designed by General Electric as part of the Mark V Series used in GE Speedtronic Gas Turbine Control Systems. The Common Analog I/O Board (TCCA), located in the core, scales and conditions analog signals from the CTBA, TBQA, and TBCA terminal boards mounted in the core. These signals include 4–20 mA inputs and outputs, RTD inputs, thermocouple inputs, shaft voltage inputs, and shaft current inputs. The signals are written to the STCA board via the 3PL connector.

This DS215TCCAG1BZZ01A DS200TCCAG1BAA printed circuit board product offering was manufactured by General Electric, specifically for placement in their Mark V Turbine Control System Series. The Mark V Series that this DS200TCCAG1BAA PCB belongs to has specific applications in the management and control systems of popular and compatible wind, gas and steam turbine automated drive assemblies.

This DS215TCCAG1BZZ01A DS200TCCAG1BAA PCB's greater Mark V Series is still something of an esteemed product series, as it is one of the final General Electric Mark product series to make use of their patented Speedtronic control system technology first introduced alongside the rollout of the Mark I Series in the later 1960s.

This DS215TCCAG1BZZ01A DS200TCCAG1BAA PCB is not the originally designed or developed product by General Electric of its specific functional role; that would be the DS200TCCAG1 parent TC2000 I/O Analog Board missing all three of this DS200TCCAG1BAA device's three significant product revisions.

How does the TCCA board manage signal conditioning from multiple terminal boards within the core?

The TCCA board collects analog signals from the CTBA, TBQA, and TBCA terminal boards. It then conditions these signals—whether they’re current loops, RTDs, or thermocouples—and standardizes them for communication with the I/O Engine through the 3PL connector.

What role does the 3PL connector play in system communication for the TCCA board?

The 3PL connector acts as the primary data bridge, transmitting all conditioned analog inputs from the TCCA board to the I/O Engine, enabling real-time monitoring and control.

Why is jumper JP2 important during board testing procedures?

JP2 disables the onboard oscillator, making it a key hardware setting when conducting specific card-level diagnostic or factory tests.

How does the TCCA board differentiate and handle various RTD types during operation?

The RTD type is selected via I/O configuration constants. The board uses fixed excitation current and measures voltage changes due to resistance variations, scaling the values accordingly.
