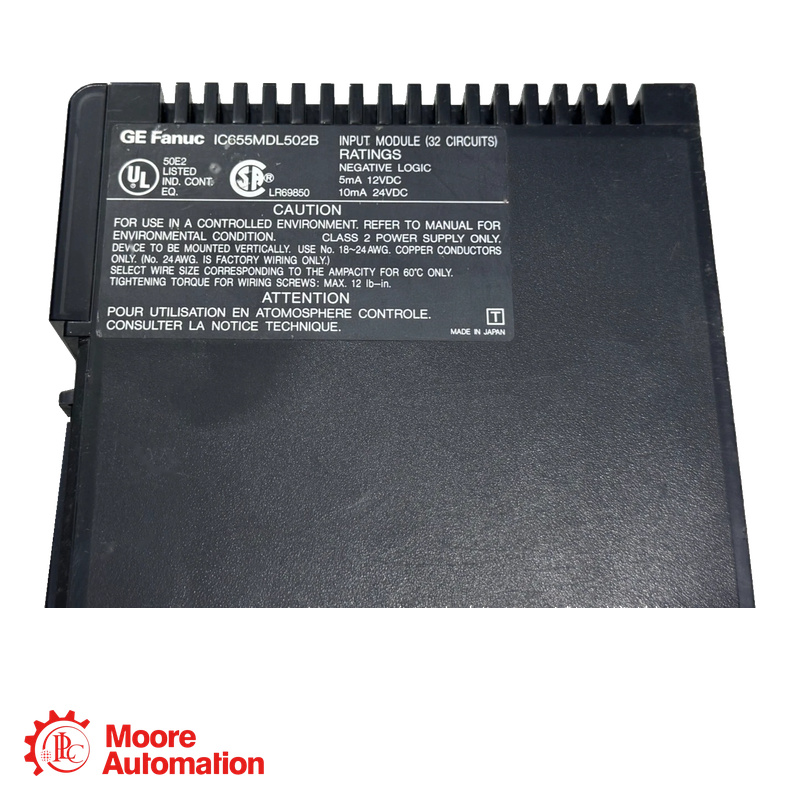

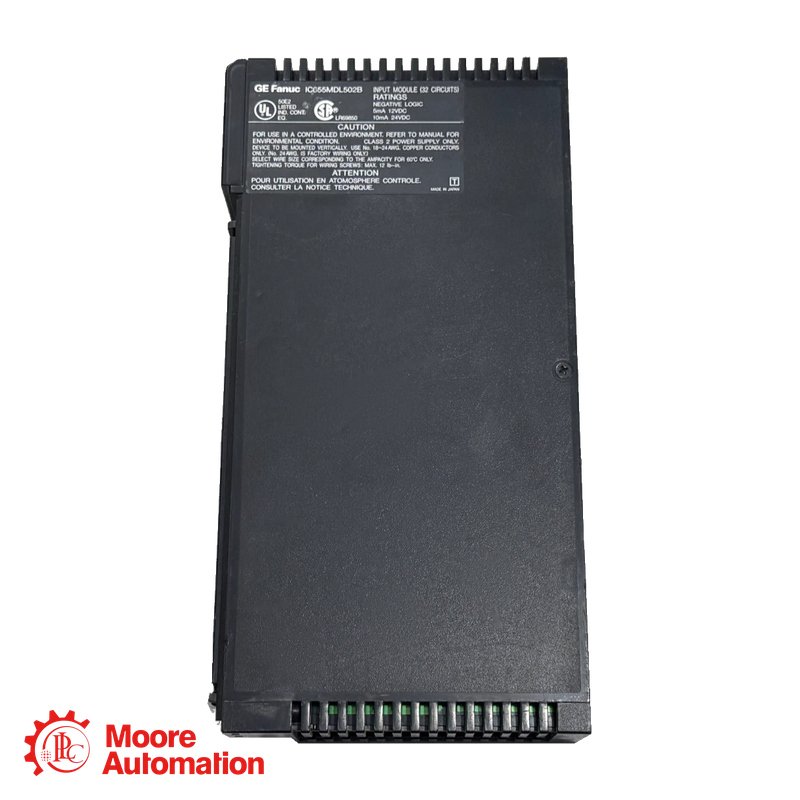

GE Fanuc IC655MDL502 Series Five 32-Point 24 V DC Input Module
GE Fanuc IC655MDL502 Series Five 32-Point 24 V DC Input Module
GE Fanuc IC655MDL502 Series Five 32-Point 24 V DC Input Module

GE Fanuc IC655MDL502 Series Five 32-Point 24 V DC Input Module

GE FANUC SERIES FIVE · 32-POINT INPUT

IC655MDL502

The IC655MDL502 is a GE Fanuc Series Five 32-point DC input module with negative-logic circuits. Its four groups of eight inputs operate from 10.2 to 26.4 V DC and connect through the removable front terminal block.

PRODUCT TYPESERIES FIVE 32-POINT DC INPUT MODULE
PLATFORMSeries Five PLC
INPUTS32 circuits
VOLTAGE10.2-26.4 V DC
MANUFACTURERGE Fanuc
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Informarsi ora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
GE Fanuc ● SERIES FIVE 32-POINT DC INPUT MODULE
GE FANUC SERIES FIVE

IC655MDL502

SERIES FIVE 32-POINT DC INPUT MODULE

SERIES FIVE PLC · 10.2-26.4 V DC · NEGATIVE LOGIC

MODULE ROLE
IC655MDL502 accepts 32 negative-logic field inputs for the Series Five PLC.
LONG DESCRIPTION

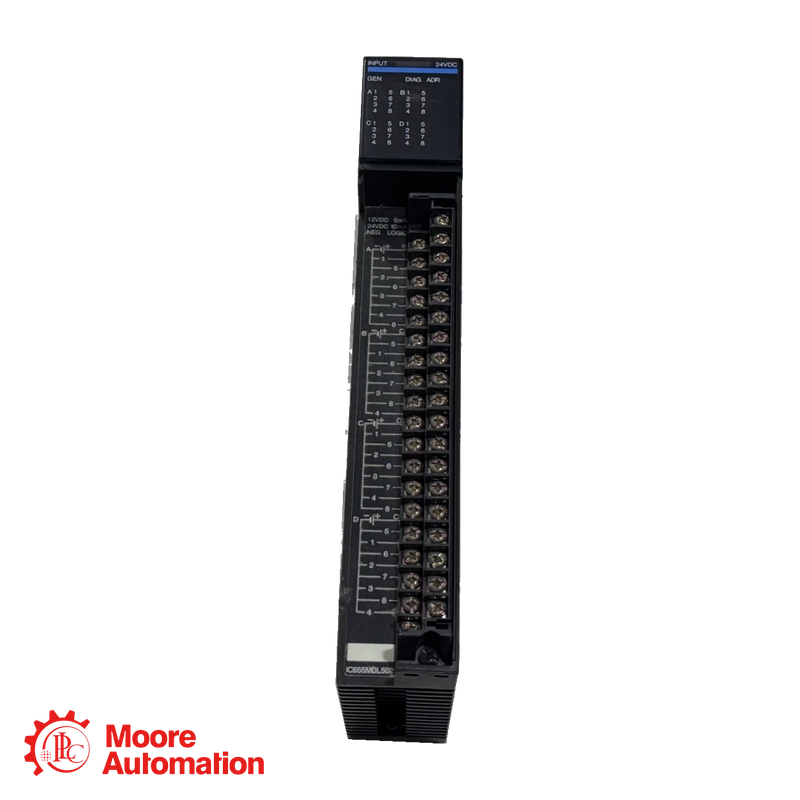

The IC655MDL502 is a 32-point negative-logic input module for the GE Fanuc Series Five PLC. Its circuits operate from 10.2 to 26.4 V DC, draw 10 mA at 24 V DC, and are arranged as four groups of eight inputs. A removable front terminal block provides field wiring, while 32 LEDs show point status and can indicate the module starting I/O address during programming.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE Fanuc Series Five ↗
IC655MDL502 SERIES FIVE 32-POINT DC INPUT MODULE

Engineering data at a glance

Click “+” to expand more specifications.

PRODUCT TYPESeries Five 32-Point DC Input Module
INSTALLATIONSeries Five base-unit I/O slot
INPUTS32 circuits
VOLTAGE10.2-26.4 V DC
The IC655MDL502 is a GE Fanuc Series Five 32-point DC input module with negative-logic circuits. Its four groups of eight inputs operate from 10.2 to 26.4 V DC and connect through the removable front terminal block.
Installation context Install IC655MDL502 in a compatible Series Five base-unit I/O slot and verify the 10.2 to 26.4 V DC negative-logic field wiring, group commons and starting I/O address.
GENERAL INFORMATION −
BrandGE Fanuc
Part numberIC655MDL502
Product typeSeries Five 32-Point DC Input Module
Product familySeries Five PLC
System role32-point negative-logic DC input module
INPUT CIRCUITS & LOGIC ＋
Number of circuits32
Logic typeNegative logic
Circuit groupingFour groups of 8 inputs
ELECTRICAL CHARACTERISTICS ＋
Operating voltage10.2 to 26.4 V DC
Input current10 mA at 24 V DC
Nominal input voltage24 V DC
RESPONSE & CONNECTIONS ＋
OFF-to-ON response3.7 to 10 ms
ON-to-OFF response3.5 to 12.5 ms
Field connectionRemovable terminal block
Source: GE Fanuc Series Five documentation identifies IC655MDL502 as a series five 32-point dc input module.
FAQ

Questions Buyers Ask Most

What type of product is IC655MDL502?＋

IC655MDL502 is a Series Five 32-Point DC Input Module for the GE Fanuc Series Five PLC.

What operating voltage applies to IC655MDL502?＋

IC655MDL502 operates from 10.2 to 26.4 V DC.

How many input circuits does IC655MDL502?＋

IC655MDL502 provides 32 input circuits arranged as four groups of eight.

What input current applies to IC655MDL502?＋

IC655MDL502 input current is 10 mA at 24 V DC.

What logic and response characteristics apply to IC655MDL502?＋

IC655MDL502 uses negative logic with 3.7 to 10 ms OFF-to-ON and 3.5 to 12.5 ms ON-to-OFF response times.

Other Available Revisions for the IC655MDL502?＋

Other revisions may exist for IC655MDL502. Confirm the complete catalog number and revision suffix on the installed unit before ordering.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
IC655MDL502

Documentation support for the GE Fanuc IC655MDL502 Series Five 32-Point DC Input Module.

Official datasheet status

No direct exact-model manufacturer-hosted IC655MDL502 PDF was confirmed in the public documentation. For product documentation and compatibility details, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

The product identification on this page follows GE Fanuc Series Five documentation; contact Frida for the exact applicable manual and ordering support.

GE FANUC SERIES FIVE RELATIONSHIP

How IC655MDL502 Fits into the Series Five PLC

GE Fanuc is the manufacturer brand; Series Five is the PLC platform; and IC655MDL502 is the series five 32-point dc input module used in the Series Five PLC system.

GE Fanuc · BRAND
GE Fanuc Series FiveSeries Five 32-Point DC Input Module
SYSTEM ROLE

Series Five 32-Point DC Input Module

Accepts 32 negative-logic field inputs for the Series Five PLC.

INPUTS / VOLTAGE

32 circuits · 10.2-26.4 V DC

The IC655MDL502 is a 32-point negative-logic input module for the GE Fanuc Series Five PLC. Its circuits operate from 10.2 to 26.4 V DC, draw 10 mA at 24 V DC, and are arranged as four groups of eight inputs. A removable front terminal block provides field wiring, while 32 LEDs show point status and can indicate the module starting I/O address during programming.

ORDER DATA

IC655MDL502 · Series Five 32-Point DC Input Module

Match the exact IC655MDL502 catalog number and verify the exact catalog number, 10.2 to 26.4 V DC supply, negative-logic field wiring, group commons and starting I/O address.

System relationship: verify the exact catalog number, 10.2 to 26.4 V DC supply, negative-logic field wiring, group commons and starting I/O address.
APPLICATION AREAS

Application map for IC655MDL502

Discrete DC InputsMonitor 32 negative-logic field input points
Four-Group WiringOrganize inputs as four groups of eight circuits
APPLICATION CENTER IC655MDL502 IC655MDL502 · Series Five 32-Point DC Input Module
Panel Input CollectionConnect switches and sensors through the removable terminal block
Series Five ControlAdd discrete input capacity to a Series Five PLC
