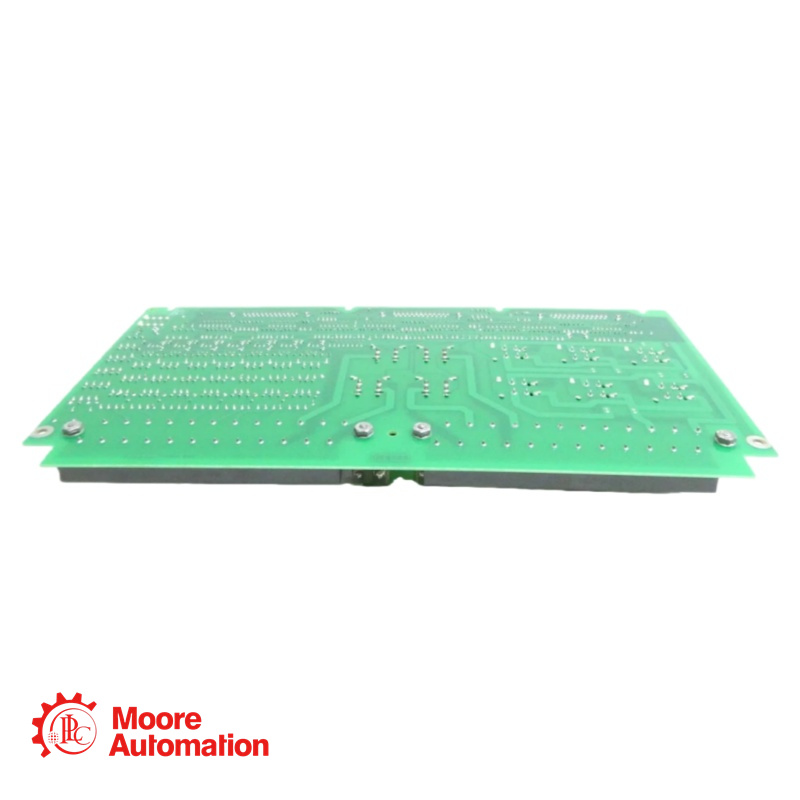

The GE IS200ECTBG1A is an Exciter Contact Terminal Board designed for the EX2100 Series Excitation Control system in GE gas turbine applications.
Marca :
GENumero parte :
IS200ECTBG1AIl peso :
0.86 kgDimensione :
33x17.8x5.5cmPaese d'origine :
USACodice SA :
8537101190Descrizione :
Exciter Contact Terminal BoardGet Price Immediately
◆Frida (★★★★★ Sales Manager)
◆Phone: +86 15359408275
Product Overview
→
The GE IS200ECTBG1A board serves as a critical interface for managing both contact inputs and outputs within the excitation system. Specifically, the ECTBG1 variant is used exclusively in redundant (triple-modular) control architectures. It provides two dedicated trip outputs to drive a customer lockout relay (controlled by the EMIO board) and interfaces with four general-purpose Form-C contact outputs. The board also monitors six customer-supplied auxiliary contact inputs and the critical 52G and 86G breaker contacts, providing 70 V DC wetting power and status monitoring for all inputs. All monitored contact statuses are fanned out to the M1, M2, and C controllers for redundant processing.
→
Application: Redundant (Triple-Modular) Control Architecture only
Function: Exciter Contact I/O Interface Terminal Board
Contact Outputs:
2 Trip Outputs (for customer lockout relay)
4 General-Purpose Form-C Relay Outputs (managed by EMIO board)
Contact Inputs:
6 Customer Auxiliary Contact Inputs (70 V DC wetted & monitored)
52G & 86G Breaker Contact Inputs (70 V DC wetted & monitored)
Wetting Supply Voltage: 70 V DC (range: 63 - 84 V DC)
Input Monitoring: Resistor-isolated monitoring with status indication
Status Indication: Red LED per contact input channel
Signal Distribution: Input signals fanned out to M1, M2, and C controllers
Primary Power Supply: 125 V DC
Redundant Power: Supplied from both M1 and M2 controllers (for redundant control)
Technology: Surface-mount
Operating Temperature: -30°C to +65°C
Board Dimensions: 33.0 cm (H) x 17.8 cm (W)
