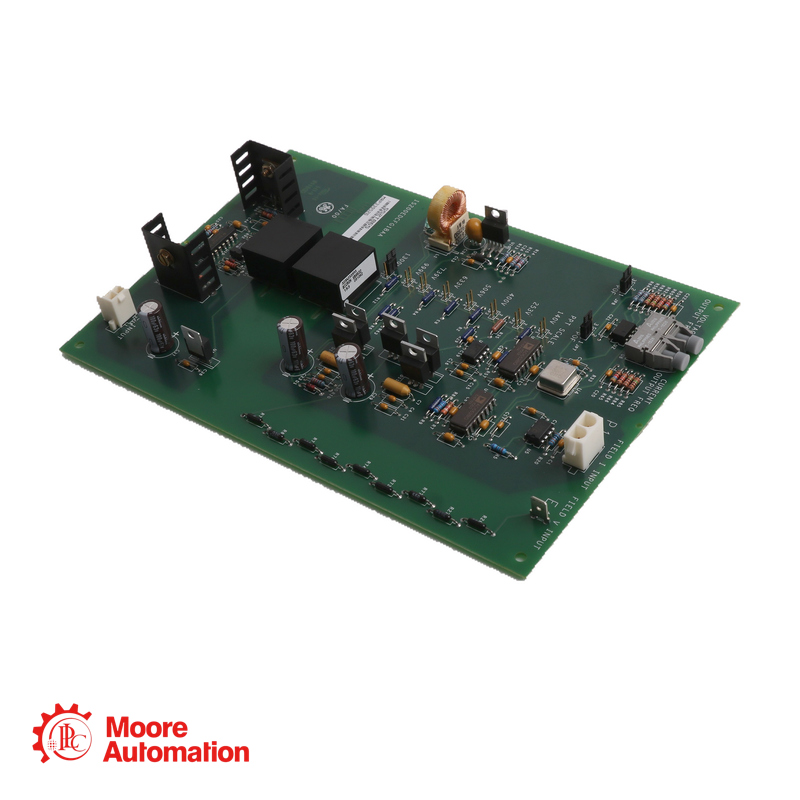

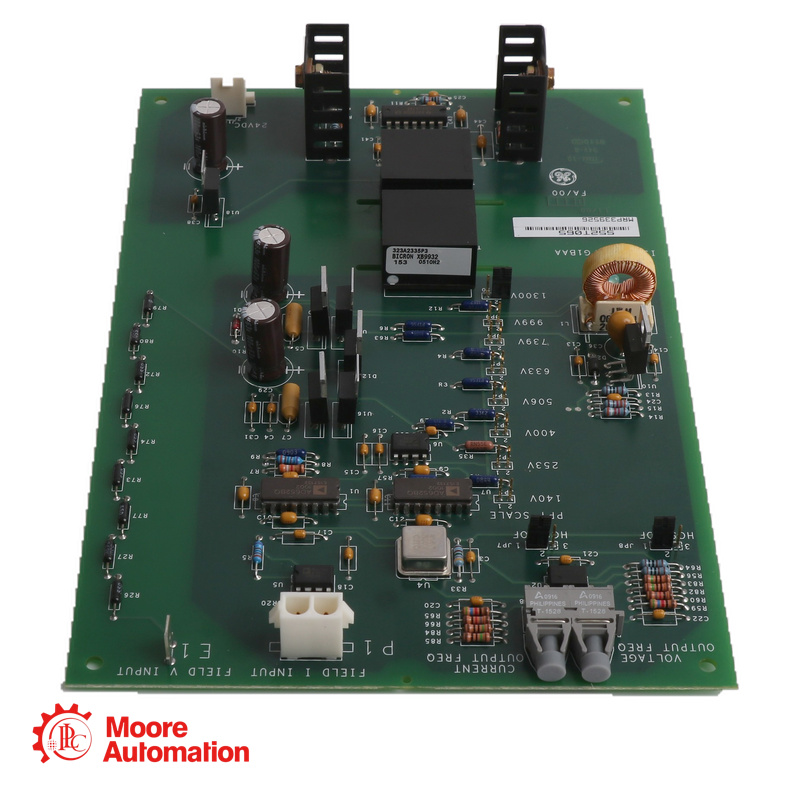

GE IS200EDEXG1B EX2100 Exciter De-Excitation Control Board
GE IS200EDEXG1B EX2100 Exciter De-Excitation Control Board
GE IS200EDEXG1B EX2100 Exciter De-Excitation Control Board

GE IS200EDEXG1B EX2100 Exciter De-Excitation Control Board

GE EX2100 · EDEX DE-EXCITATION

IS200EDEXG1B

The IS200EDEXG1B is a GE EX2100 Exciter De-Excitation control board. GE Industrial Systems board instructions identify EDEX as the main board in the de-excitation module, providing SCR firing, conduction-sense feedback and voltage retention when stored generator-field energy must be removed.

PRODUCT TYPEEX2100 EDEX CONTROL BOARD
DE-EXCITATIONSCR FIRING CONTROL
SENSINGHALL EFFECT
POWER INPUTS+24 / −24 Vdc
MANUFACTURERGE
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Informarsi ora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
GE● EX2100 EXCITER DE-EXCITATION BOARD
GE EX2100

IS200EDEXG1B

EXCITER DE-EXCITATION CONTROL BOARD

EX2100 · SCR FIRING · HALL EFFECT CONDUCTION SENSING

PRODUCT ROLE
IS200EDEXG1B is the main control board in the GE EX2100 de-excitation module.
TECHNICAL CONTEXT
IS200EDEXG1B serves as the main control board within the GE EX2100 de-excitation module. It generates the firing commands for the de-excitation SCR circuit, monitors field-current conduction through two bipolar Hall Effect sensing channels, and retains the firing voltage required to operate during a loss of incoming power. The board exchanges firing and conduction-status signals with the EXTB interface through J8 and routes SCR gate output through the DEPL connection. It can operate as a Master or Follower board to coordinate controlled dissipation of stored generator-field energy during de-excitation events.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.comWHATSAPP+86 153 5940 8275
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE EX2100 ↗
IS200EDEXG1B EX2100 EXCITER DE-EXCITATION BOARD

Engineering data at a glance

Click “+” to expand more specifications.

BOARD ROLEDe-Excitation
METHODSCR Firing
SENSINGHall Effect
INTERFACESJ8 + DEPL
The values shown summarize GE Industrial Systems GEI-100466 board-level instructions. Confirm the complete IS200EDEXG1B catalog number, installed revision and exciter configuration before replacement.
System contextUse IS200EDEXG1B with the compatible EXTB interface and configured de-excitation SCR circuit. Verify the complete catalog number, revision, jumper configuration and installed exciter arrangement before commissioning.
GENERAL INFORMATION −
BrandGE
Part numberIS200EDEXG1B
Product typeExciter De-Excitation control board
Excitation systemEX2100 Excitation Control
System roleMain board in the de-excitation module
DE-EXCITATION FUNCTIONS ＋
Board functionSCR de-excitation control
Trigger pathEXTB transfers firing commands
Conduction feedbackTwo current-sense circuits
Backup behaviorVoltage retention during power loss
Application typeGroup 1 board for SCR de-excitation
SENSING & INTERFACES ＋
Conduction sensorsHall Effect sensors
Current detectionBipolar M1 and M2 circuits
EXTB connectionJ8 six-pin locking connector
SCR gate connectionDEPL two-pin locking connector
POWER & CONFIGURATION ＋
Board power+24 V dc · 24 V return · -24 V dc
Power connectorsJ17M1 and J17M2
Board modeMaster or Follower
Anode firing setupWire-jumper selected for SCR cell and voltage
Exciter interfaceEXTB and de-excitation SCR circuit
Source: GE Industrial Systems GEI-100466, Exciter De-Excitation Board EDEX, board-level instructions for IS200EDEXG1B. No direct manufacturer-hosted exact-model PDF was confirmed publicly.
FAQ

Questions Buyers Ask Most

What is IS200EDEXG1B?＋

IS200EDEXG1B is the GE EX2100 Exciter De-Excitation control board used as the main board in the de-excitation module.

What de-excitation method is used by IS200EDEXG1B?＋

For IS200EDEXG1B, GE Industrial Systems instructions describe SCR firing control with conduction-sense feedback and voltage retention for power-loss operation.

How does IS200EDEXG1B detect field-circuit current?＋

IS200EDEXG1B uses Hall Effect conduction sensors in two bipolar current-sense circuits to report M1 and M2 conduction status through EXTB.

Which board power connections are documented for IS200EDEXG1B?＋

For IS200EDEXG1B, GEI-100466 documents +24 V dc, 24 V return and -24 V dc, through the J17M1 and J17M2 power connectors.

What should be verified before ordering IS200EDEXG1B?＋

Confirm the full IS200EDEXG1B catalog number, functional revision, EXTB connection, SCR configuration and installed excitation-system requirements before ordering.

Other Available Revisions for the IS200EDEXG1B＋

No interchangeable revision for IS200EDEXG1B was identified in current public manufacturer documentation. Contact Frida with the complete nameplate and installed-system details.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
IS200EDEXG1B

Documentation support for the GE IS200EDEXG1B EX2100 Exciter De-Excitation Control Board.

Official datasheet status

No direct exact-model manufacturer-hosted IS200EDEXG1B PDF was confirmed in the public documentation. For the applicable GEI-100466 instructions, revision compatibility and ordering support, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Board-level statements on this page follow GE Industrial Systems GEI-100466 EDEX instructions; contact Frida for the exact IS200EDEXG1B document package.

GE EX2100 EDEX RELATIONSHIP

How IS200EDEXG1B Fits into the EX2100 Excitation System

GE is the manufacturer brand; EX2100 is the excitation-control system; and IS200EDEXG1B is the Exciter De-Excitation control board.

GE · BRAND
GE EX2100EDEX Control Board
SYSTEM ROLE

Exciter De-Excitation Module

Acts as the main board that controls field-energy removal in the EX2100 de-excitation module.

SENSING / INTERFACES

Hall Effect · J8 · DEPL

Hall Effect circuits detect field current; J8 connects the EXTB signal path and DEPL connects the SCR firing output.

ORDER DATA

IS200EDEXG1B · Complete Model

Match the complete catalog number and confirm functional revision, jumper settings, EXTB connection and SCR application.

System relationship: verify the complete IS200EDEXG1B identity and the installed EX2100 de-excitation arrangement before ordering.
APPLICATION AREAS

Application map for IS200EDEXG1B

Generator Field De-ExcitationRemoval of stored generator-field energy during emergency shutdown or field-breaker opening
SCR Firing and ProtectionTransfer of EXTB firing commands to the configured de-excitation SCR circuit
APPLICATION CENTERIS200EDEXG1BEX2100 EDEX Control Board
Conduction-Sense FeedbackHall Effect circuits monitor bipolar M1 and M2 field-current conduction
Master-Follower ArrangementsCoordinated firing of multiple de-excitation SCRs for large field-current applications
