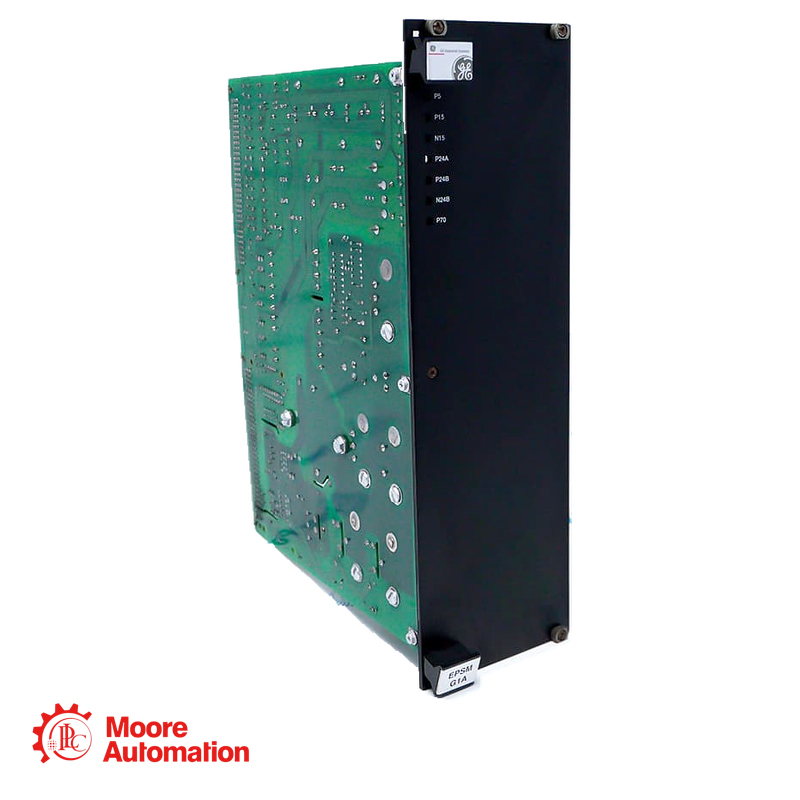

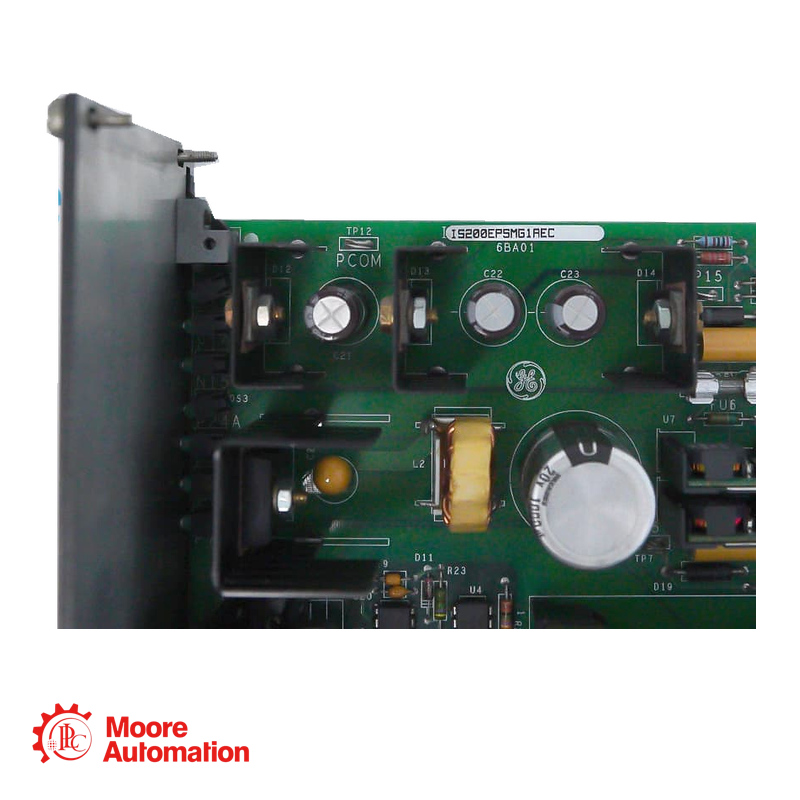

GE IS200EPSMG1AEC EX2100 Exciter Power Supply Module
GE IS200EPSMG1AEC EX2100 Exciter Power Supply Module
GE IS200EPSMG1AEC EX2100 Exciter Power Supply Module

GE IS200EPSMG1AEC EX2100 Exciter Power Supply Module

GE EX2100 · EPSM GROUP 1

IS200EPSMG1AEC

The IS200EPSMG1AEC is a GE EX2100 Exciter Power Supply Module. GE EPSM instructions describe a Group 1 power module that receives 125 V dc from the EPDM and generates the isolated low-voltage supplies used by the excitation-control electronics.

PRODUCT TYPEEX2100 EPSM POWER MODULE
DC INPUT125 V DC INPUT
LOGIC OUTPUTS+5 · ±15 · +24 VDC
ISOLATED OUTPUTISOLATED +70 VDC
MANUFACTURERGE
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Informarsi ora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
GE● EX2100 EXCITER POWER SUPPLY MODULE
GE EX2100

IS200EPSMG1AEC

EXCITER POWER SUPPLY MODULE

EX2100 · 125 V DC INPUT · ISOLATED POWER CONVERSION

PRODUCT ROLE
IS200EPSMG1AEC is a Group 1 Exciter Power Supply Module in the GE EX2100 excitation-control power chain.
TECHNICAL CONTEXT
IS200EPSMG1AEC is the Group 1 Exciter Power Supply Module used in the GE EX2100 excitation-control power chain. It receives the 125 V dc source distributed by the EPDM, reduces it through a buck-regulator stage to an intermediate dc level, and uses a transformer-isolated push-pull inverter to create the low-voltage rails required by the control electronics. The module supplies +5 V dc, ±15 V dc and +24 V dc through the EPBP, while an isolated +70 V dc output supports contact-wetting circuits. Up to three EPSM modules can be used to provide independent logic-level power for the EX2100 controllers.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.comWHATSAPP+86 153 5940 8275
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE EX2100 ↗
IS200EPSMG1AEC EX2100 EXCITER POWER SUPPLY MODULE

Engineering data at a glance

Click “+” to expand more specifications.

MODULE GROUPGroup 1 EPSM
INPUT SOURCE125 V dc
LOGIC OUTPUTS+5 · ±15 · +24 Vdc
ISOLATED OUTPUT+70 V dc
The values shown summarize GE EX2100 user-guide and EPSM instruction data. Confirm the complete IS200EPSMG1AEC catalog number, functional revision and installed excitation-control power arrangement before replacement.
System contextUse IS200EPSMG1AEC with the compatible EPDM and EPBP power-distribution arrangement. Match the complete catalog number, functional revision and controller-power configuration before replacement.
GENERAL INFORMATION −
BrandGE
Part numberIS200EPSMG1AEC
Product typeExciter Power Supply Module
Excitation systemEX2100 Excitation Control
System roleGroup 1 low-voltage supply for excitation control
POWER CONVERSION ＋
Module functionIsolated multi-output power conversion
Input source125 V dc supplied through the EPDM
First conversion stageBuck regulator produces an intermediate dc level
Second conversion stagePush-pull inverter creates multiple output rails
Isolation methodTransformer isolation between input and outputs
OUTPUT VOLTAGES ＋
Backplane logic supplies+5 V dc · ±15 V dc · +24 V dc
Contact-wetting supplyIsolated +70 V dc output
Power-distribution backplaneEPBP distributes the regulated outputs
Power-source moduleEPDM feeds the EPSM input
SYSTEM INTEGRATION ＋
Backplane outputs+5 V dc · ±15 V dc · +24 V dc
Module locationEPBP Exciter Power Backplane
Controller supply arrangementUp to three EPSM modules for controller power
Power-conversion topologyBuck regulator plus transformer-isolated push-pull inverter
System power chainEPDM source · EPSM conversion · EPBP distribution
Source: GEH-6632 EX2100 Excitation Control User Guide and GEI-100462 EPSM instructions for the Exciter Power Supply Module family. No direct manufacturer-hosted exact IS200EPSMG1AEC PDF was confirmed publicly.
FAQ

Questions Buyers Ask Most

What is IS200EPSMG1AEC?＋

IS200EPSMG1AEC is the GE EX2100 Group 1 Exciter Power Supply Module that provides isolated low-voltage power to the excitation-control electronics.

What input source feeds IS200EPSMG1AEC?＋

For IS200EPSMG1AEC, GE EX2100 documentation identifies a 125 V dc source from the EPDM as the supply feeding the EPSM power-conversion stage.

Which regulated outputs does IS200EPSMG1AEC provide?＋

IS200EPSMG1AEC provides +5 V dc, ±15 V dc and +24 V dc for control electronics, plus an isolated +70 V dc output for contact-wetting circuits.

How does IS200EPSMG1AEC convert power?＋

For IS200EPSMG1AEC, the EPSM uses a buck regulator and transformer-isolated push-pull inverter to convert the input into the required multiple output voltages.

What should be verified before ordering IS200EPSMG1AEC?＋

Confirm the full IS200EPSMG1AEC catalog number, functional revision, EPDM source, EPBP arrangement and installed controller-power requirements before ordering.

Other Available Revisions for the IS200EPSMG1AEC＋

No interchangeable revision for IS200EPSMG1AEC was identified in current public manufacturer documentation. Contact Frida with the complete nameplate and installed-system details.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
IS200EPSMG1AEC

Documentation support for the GE IS200EPSMG1AEC EX2100 Exciter Power Supply Module.

Official datasheet status

No direct exact-model manufacturer-hosted IS200EPSMG1AEC PDF was confirmed in the public documentation. For the applicable GEH-6632 and GEI-100462 EPSM instructions, revision compatibility and ordering support, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Module-level statements on this page follow GEH-6632 EX2100 and GEI-100462 EPSM documentation; contact Frida for the exact IS200EPSMG1AEC document package.

GE EX2100 EPSM RELATIONSHIP

How IS200EPSMG1AEC Fits into the EX2100 Excitation System

GE is the manufacturer brand; EX2100 is the excitation-control system; and IS200EPSMG1AEC is a Group 1 Exciter Power Supply Module.

GE · BRAND
GE EX2100EPSM Group 1 Module
SYSTEM ROLE

Exciter Power Supply Module

Converts the EPDM 125 V dc source into isolated low-voltage rails for EX2100 excitation-control electronics.

POWER CONVERSION

Buck Regulator · Push-Pull Inverter

A buck-regulator stage develops an intermediate dc level and a transformer-isolated push-pull inverter creates the required multiple outputs.

ORDER DATA

IS200EPSMG1AEC · Complete Model

Match the complete catalog number and confirm functional revision, EPDM source, EPBP distribution and controller-power application.

System relationship: verify the complete IS200EPSMG1AEC identity and the installed EX2100 excitation-control power arrangement before ordering.
APPLICATION AREAS

Application map for IS200EPSMG1AEC

Controller Logic Power+5 V dc, ±15 V dc and +24 V dc supplies for the EX2100 control electronics
EPDM-to-EPBP Power ConversionConversion of the 125 V dc source into regulated, transformer-isolated output rails
APPLICATION CENTERIS200EPSMG1AECEX2100 EPSM Group 1
Contact-Wetting PowerIsolated +70 V dc output supports terminal-board contact-wetting circuits
Independent Controller SuppliesUp to three EPSM modules can provide logic-level power for the EX2100 controllers
