GE MARK VIE · ANALOG I/O WITH 200 MA OUTPUT

IS220PAICH2B

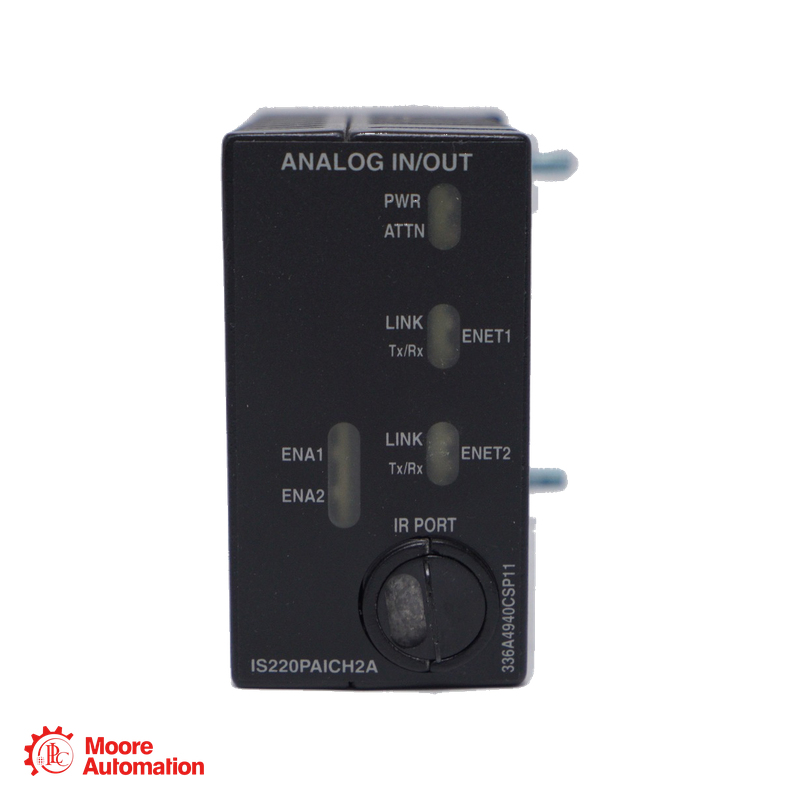

IS220PAICH2B is a BPPC-based Mark VIe analog I/O pack with ten analog inputs and two current outputs. The H2 hardware adds a 0–200 mA range on output 1.

PRODUCT TYPEANALOG I/O
PLATFORMMark VIe
INPUTS10 channels
OUTPUTS2 channels
MANUFACTURERGE
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Informarsi ora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
GE ● ANALOG I/O WITH 200 MA OUTPUT
MARK VIE

IS220PAICH2B

ANALOG I/O

MARK VIE · PAIC H2B · ANALOG INPUT / OUTPUT

MODULE ROLE
IS220PAICH2B interfaces analog field signals and current-loop outputs with the Mark VIe I/O Ethernet network.
LONG DESCRIPTION

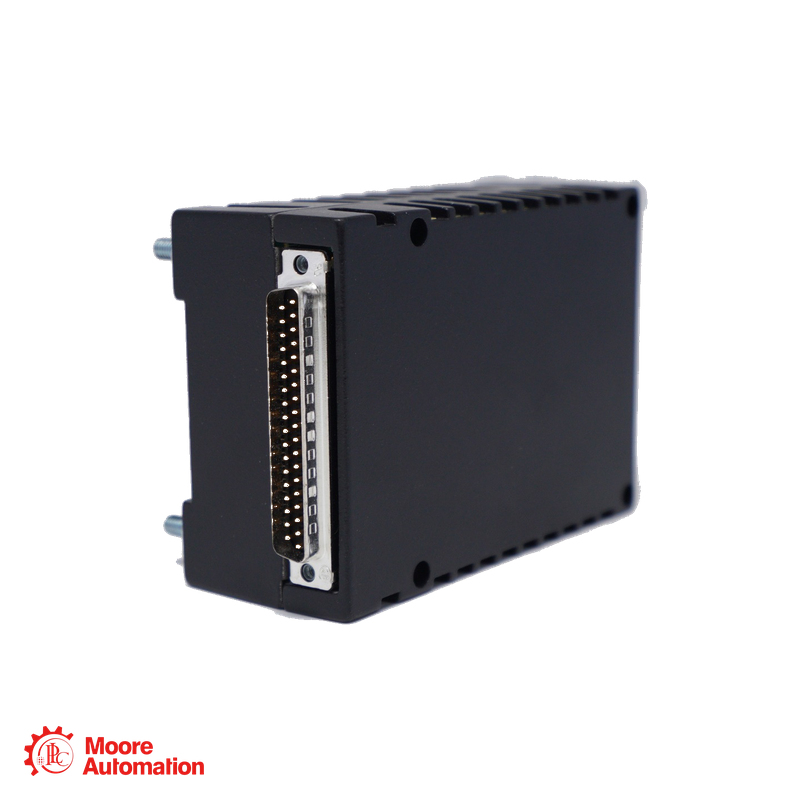

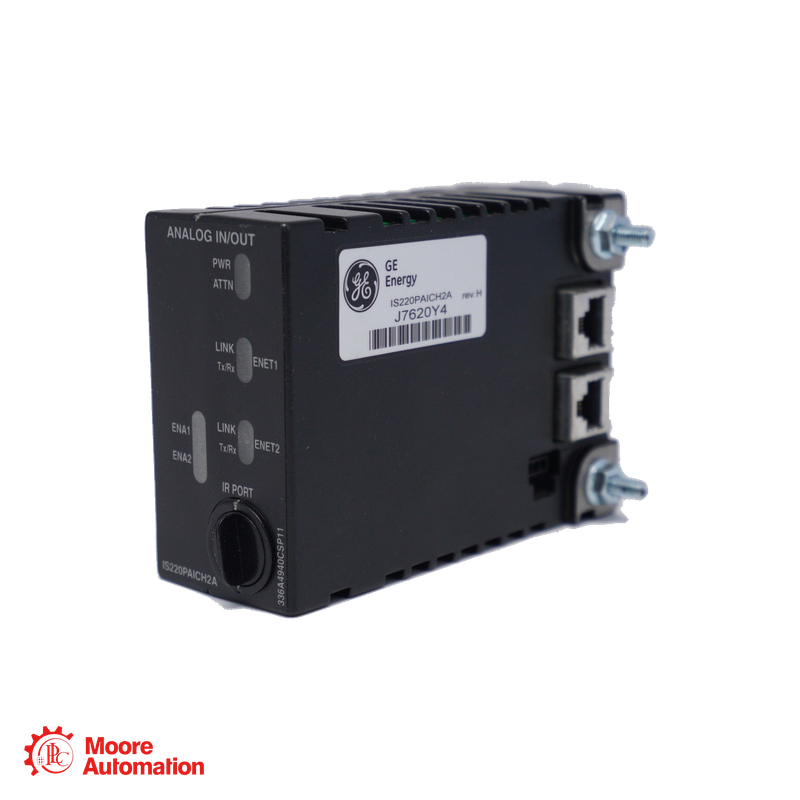

IS220PAICH2B accepts configurable voltage or current inputs on channels 1–8 and current inputs on channels 9–10. Both outputs support 0–20 mA; the H2 version also supports 0–200 mA on the first output. A DC-37 connector joins the pack to its terminal board, while two RJ-45 ports provide I/O networking.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the IS220PAICH2B Reference Is Structured

IS
Issuing organizationGE Power, Salem, Virginia
2
Substance designationLegacy non-RoHS designation
20
Assembly levelOne or more PCBAs in an enclosure
PAIC
Functional mnemonicAnalog input/output
H
Technology codeIncludes surface-mount components
2
Assembly variantPAIC H2 hardware variant
B
Compatibility versionBackward-compatibility version B
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE Mark VIe ↗
IS220PAICH2B ANALOG I/O

Engineering data at a glance

Click “+” to expand more specifications.

ANALOG IN10
ANALOG OUT2
H2 OUTPUT 10–200 mA
INPUT ADC16-bit
PAICH2B provides ten analog inputs and two outputs; the first output includes the H2-specific 200 mA range.
Module configuration The complete reference IS220PAICH2B identifies the PAIC H2 analog I/O hardware with the BPPC processor generation. Only output 1 has the additional 0–200 mA capability.
GENERAL INFORMATION −
BrandGE
Part numberIS220PAICH2B
Product typeAnalog I/O Pack
Analog inputs10 channels
Analog outputsTwo 0–20 mA channels
H2 additional output rangeOutput 1: 0–200 mA
INPUT & OUTPUT SIGNALS ＋
Inputs 1–8±5 V, ±10 V or 4–20 mA
Inputs 9–10±1 mA or 4–20 mA
Maximum output load800 Ω at 0–20 mA; 50 Ω at 0–200 mA
CONVERSION & NETWORK ＋
Input converter16-bit A/D
Output converter14-bit D/A
I/O networkingDual RJ-45 Ethernet connectors
Terminal interfaceDC-37 pin connector
Processor generationBPPC
CONFIGURATION ＋
Hardware operation: Simplex or TMR operation uses the corresponding compatible terminal board. Configure ranges and H2 output mode in ToolboxST with the matching PAIC firmware.
Source: GEH-6721_Vol_II_BP, section 3.1, Mark VIe PAIC Analog I/O Pack, pages 193–201.
