GE MARK VIE · 8-CHANNEL ANALOG OUTPUT

IS220PAOCH1A

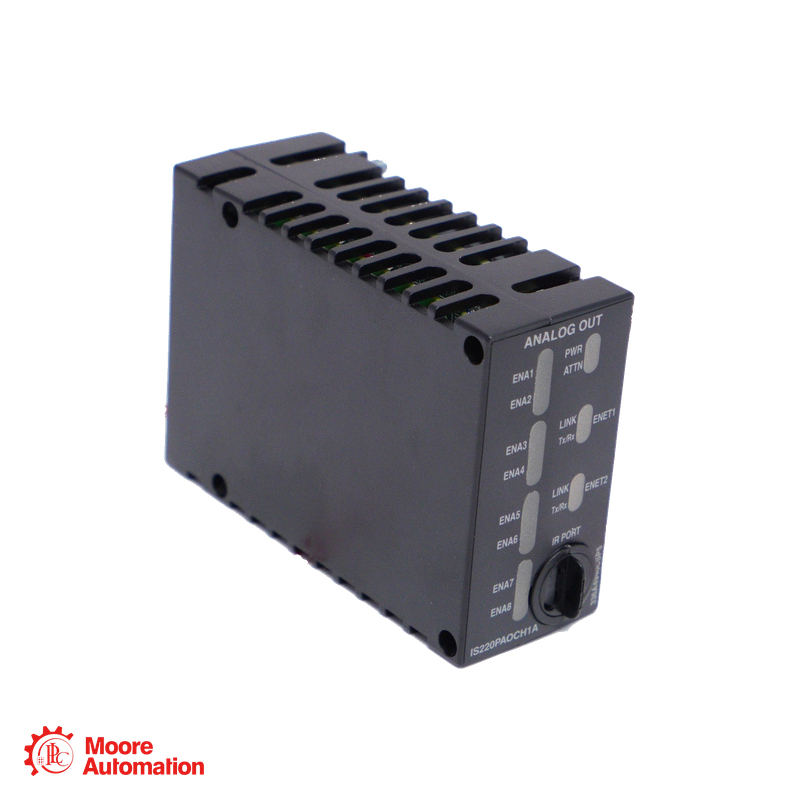

IS220PAOCH1A is a GE Mark VIe PAOC analog output pack with eight 0–20 mA current outputs, dual I/O Ethernet connectors and output-current feedback. It connects directly to a compatible analog terminal board.

PRODUCT TYPEANALOG OUTPUT
PLATFORMMark VIe
OUTPUTS8 channels
SIGNAL0–20 mA
MANUFACTURERGE
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Informarsi ora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
GE ● 8-CHANNEL ANALOG OUTPUT
MARK VIE

IS220PAOCH1A

ANALOG OUTPUT

MARK VIE · PAOC · CURRENT-LOOP OUTPUT

MODULE ROLE
IS220PAOCH1A converts Mark VIe IONet output commands into eight simplex current-loop outputs through a compatible terminal board.
LONG DESCRIPTION

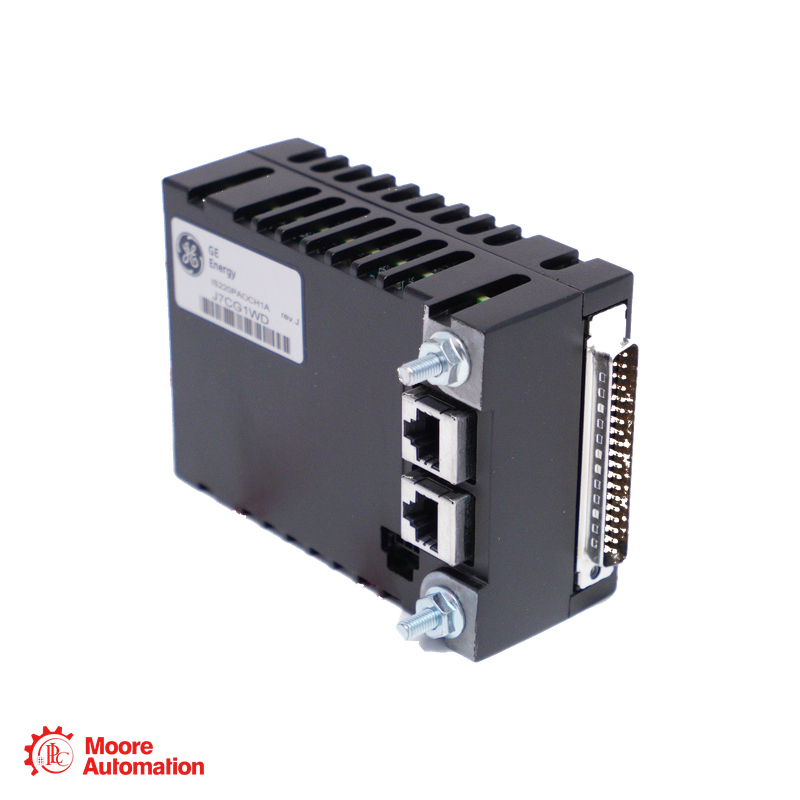

IS220PAOCH1A provides 16-bit current-output conversion and individual output-current monitoring. Two RJ-45 network connections carry I/O data, a three-pin connector receives 28 Vdc power, and a DC-37 connector mates with the field terminal board. This H1A hardware belongs to the BPPB processor generation.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the IS220PAOCH1A Reference Is Structured

IS
Issuing organizationGE Power, Salem, Virginia
2
Substance designationLegacy non-RoHS designation
20
Assembly levelOne or more PCBAs in an enclosure
PAOC
Functional mnemonicAnalog output
H
Technology codeIncludes surface-mount components
1
Assembly variantPAOC H1 hardware variant
A
Compatibility versionBackward-compatibility version A
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE Mark VIe ↗
IS220PAOCH1A ANALOG OUTPUT

Engineering data at a glance

Click “+” to expand more specifications.

OUTPUTS8
CURRENT0–20 mA
CONVERSION16-bit
IONET2 ports
PAOC output function: eight simplex current outputs with 16-bit conversion and individual current feedback.
Module configuration The complete reference IS220PAOCH1A identifies the PAOC H1A analog output pack. The compatible TBAO revision is H1C; earlier TBAOH1A/H1B boards do not provide the specified PAOC accuracy.
GENERAL INFORMATION −
BrandGE
Part numberIS220PAOCH1A
Product typeAnalog Output Pack
Current outputsEight single-ended simplex channels
Output span0–20 mA
Processor generationBPPB
NETWORK & CONNECTIONS ＋
I/O networkTwo RJ-45 Ethernet connectors
Terminal connectorDC-37 pin
Power connectionThree-pin, 28 Vdc input
OUTPUT PERFORMANCE ＋
D/A resolution16-bit
Current feedbackIndividual channel monitoring
Compliance voltage18 V
Output enableMechanical disconnect relay per output
Terminal board compatibilityTBAOH1C; STAOH1A or STAOH2A
OPERATING CHARACTERISTICS ＋
Output control: Eight simplex 0–20 mA loops with current feedback and output-disconnect relays. Apply the documented load and thermal derating for the installed hardware.
Source: GEH-6721T, Volume II, PAOC Analog Output Module, chapter 6; GEH-6721 Volume I, BPPC migration table; GEH-6725R, section 3.3 for H1B electrical ratings.
FAQ

Questions Buyers Ask Most

How many outputs are provided by IS220PAOCH1A?＋

IS220PAOCH1A provides eight single-ended simplex 0–20 mA current-loop outputs.

What terminal boards work with IS220PAOCH1A?＋

IS220PAOCH1A is used with TBAOH1C or compatible STAO boards. The PAOC manual excludes earlier TBAOH1A/H1B revisions from full-accuracy operation.

How does IS220PAOCH1A connect to IONet?＋

IS220PAOCH1A provides two RJ-45 Ethernet connectors and a separate three-pin power input. Its DC-37 connector mates directly with the terminal board.

Does IS220PAOCH1A monitor the current outputs?＋

IS220PAOCH1A includes current feedback for each output and a relay that can disconnect that output from its field load.

Which processor generation applies to IS220PAOCH1A?＋

IS220PAOCH1A is the BPPB-based H1A hardware form. Use the matching firmware and site migration procedure when changing hardware generation.

Other Available Revisions for the IS220PAOCH1A＋

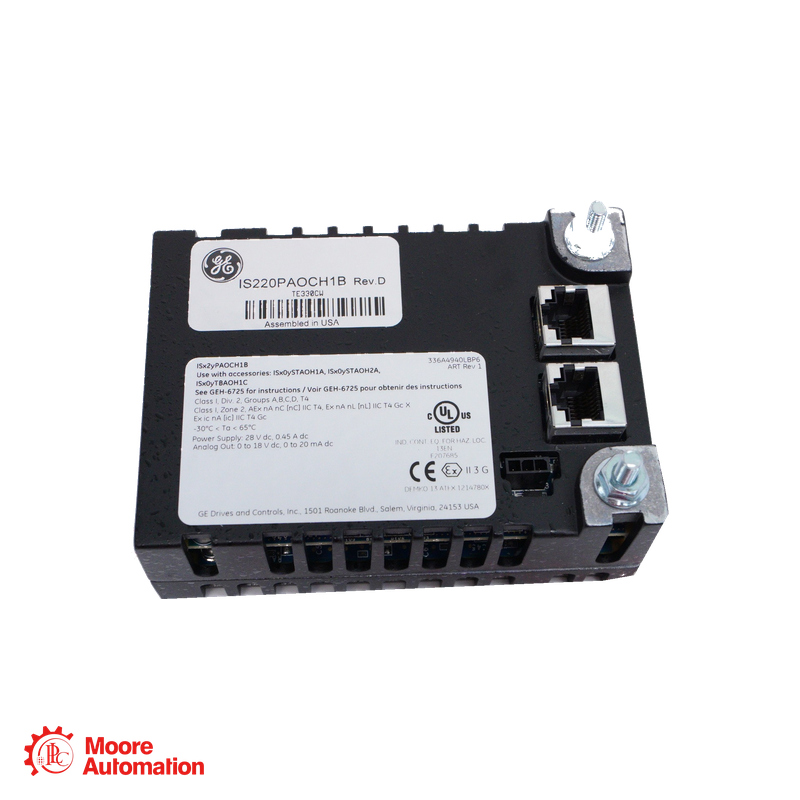

GE lists PAOCH1B as the BPPC successor to PAOCH1A. For IS220PAOCH1A, confirm the installed ControlST version, pack firmware and terminal board before applying that migration.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
IS220PAOCH1A

Official manufacturer-manual PDF status for GE IS220PAOCH1A.

Official datasheet status

A direct GE-hosted instruction-manual PDF covering IS220PAOCH1A was not confirmed in the public manufacturer library. For the applicable manual and product documentation, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

GEH-6721T, Volume II, PAOC Analog Output Module, chapter 6; GEH-6721 Volume I, BPPC migration table; GEH-6725R, section 3.3 for H1B electrical ratings.

GE MARK VIE SYSTEM RELATIONSHIP

How IS220PAOCH1A Fits Mark VIe Control

GE is the manufacturer brand; GE Mark VIe is the product family; and IS220PAOCH1A is the analog output pack used for simplex current-loop output.

GE · BRAND
GE Mark VIeAnalog Output Pack
SYSTEM ROLE

Analog Output Pack

Generates current-loop output signals from IONet commands.

MODULE / CONFIGURATION

8 outputs · 0–20 mA

A 16-bit DAC drives each output, with separate current-feedback monitoring.

I/O ROLE

IS220PAOCH1A · Analog Output Pack

Dual Ethernet connections link the pack to the configured Mark VIe controller network.

System relationship: PAOC processes network output commands; TBAO or STAO provides the field wiring connections.
APPLICATION AREAS

Application map for IS220PAOCH1A

Current-Loop ControlGenerate analog output commands for configured field equipment
Simplex Analog OutputsProvide eight individual current-output channels
MARK VIE ANALOG OUTPUT IS220PAOCH1A IS220PAOCH1A · Analog Output Pack
