GE MARK VIE · 12-CHANNEL DISCRETE OUTPUT

IS220PDOAH1BC

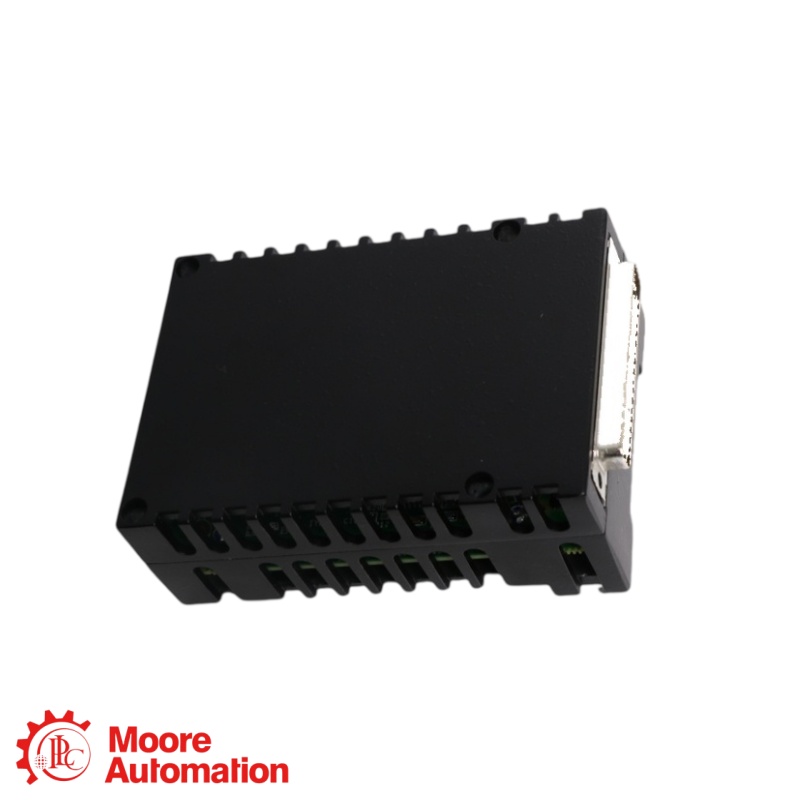

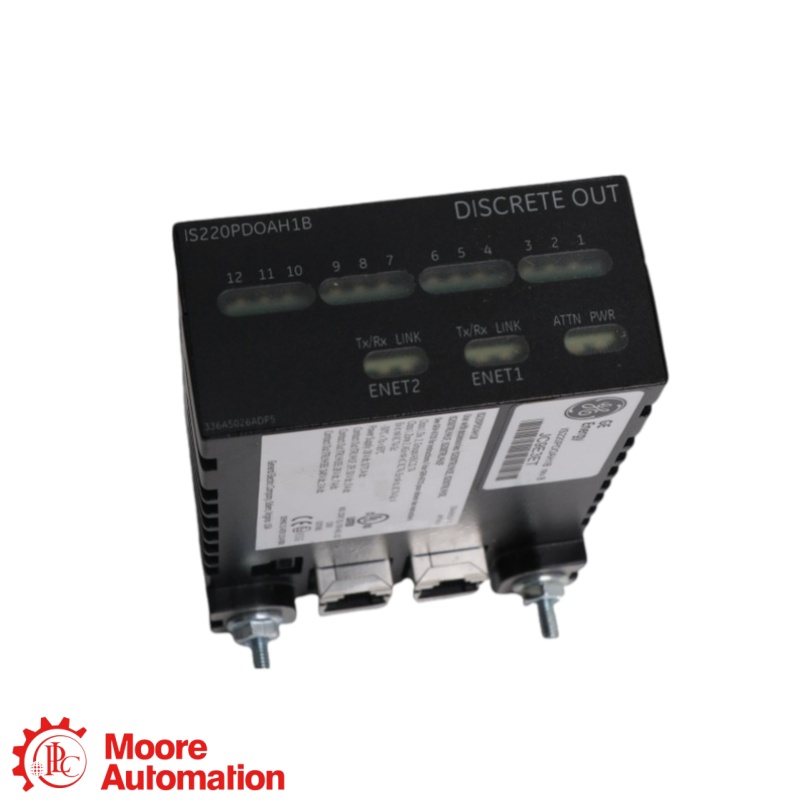

IS220PDOAH1BC is a Mark VIe PDOA discrete output pack for controlling up to twelve terminal-board relay channels. It uses the H1B hardware form with production revision C and a dual Ethernet I/O interface.

PRODUCT TYPEDISCRETE OUTPUT
PLATFORMMark VIe
RELAY CONTROL12 channels
IONET2 ports
MANUFACTURERGE
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Informarsi ora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
GE ● 12-CHANNEL DISCRETE OUTPUT
MARK VIE

IS220PDOAH1BC

DISCRETE OUTPUT

MARK VIE · PDOA H1B · RELAY OUTPUT CONTROL

MODULE ROLE
IS220PDOAH1BC interfaces the Mark VIe Ethernet I/O network to a discrete output terminal board and its relay status feedback.
LONG DESCRIPTION

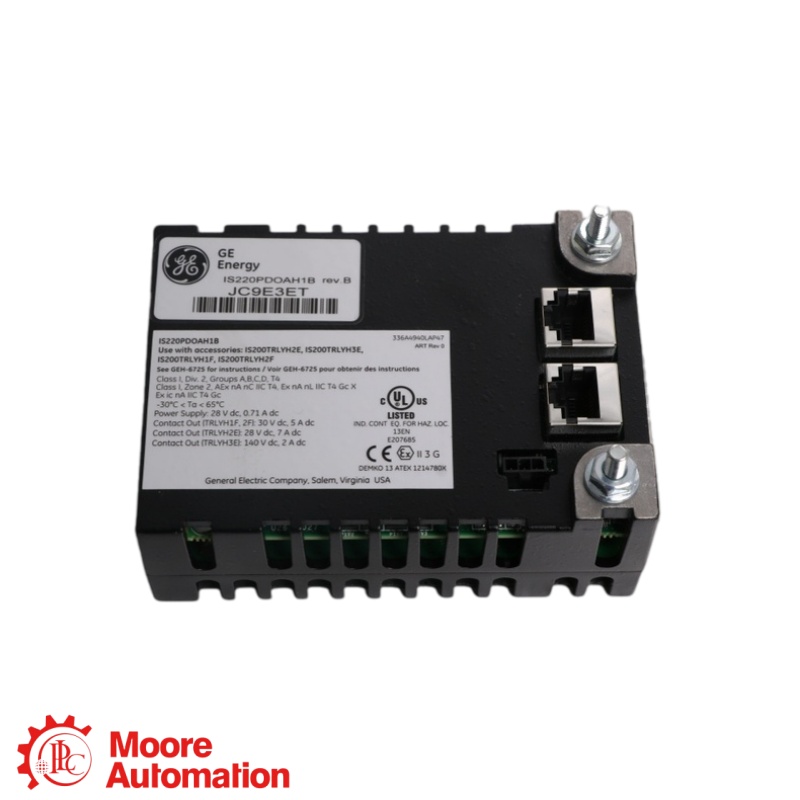

IS220PDOAH1BC commands relay outputs and reads the terminal-board-specific coil, contact and fuse feedback. Mechanical or solid-state relay characteristics depend on the selected TRLY or SRLY board. The pack uses a BPPC processor, two RJ-45 IONet connectors, a DC-37 terminal-board connection and a separate 28 Vdc power input.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the IS220PDOAH1BC Reference Is Structured

IS
Issuing organizationGE Power, Salem, Virginia
2
Substance designationLegacy non-RoHS designation
20
Assembly levelOne or more PCBAs in an enclosure
PDOA
Functional mnemonicDiscrete output
H
Technology codeIncludes surface-mount components
1
Assembly variantPDOA H1 hardware variant
B
Compatibility versionBackward-compatibility version B
C
Assembly revisionPWA production version C
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE Mark VIe ↗
IS220PDOAH1BC DISCRETE OUTPUT

Engineering data at a glance

Click “+” to expand more specifications.

RELAYS12
RESPONSE≈6 ms
IONET2 ports
SUPPLY28 Vdc
PDOA pack data: up to twelve relay-control channels, approximately 6 ms command-to-output response, and dual I/O Ethernet.
Module configuration The complete reference IS220PDOAH1BC identifies PDOA H1B hardware and production revision C. The final C is a revision code; relay contact type and load rating are determined by the terminal board.
GENERAL INFORMATION −
BrandGE
Part numberIS220PDOAH1BC
Product typeDiscrete Output Pack
Relay-control channelsUp to 12
Hardware formPDOAH1B, BPPC processor
Production revisionC
NETWORK & CONNECTIONS ＋
IONet interfaceTwo RJ-45 Ethernet connectors
Terminal interfaceDC-37 pin connector
External power28 Vdc through three-pin connector
OUTPUT & FEEDBACK ＋
Pack responseApproximately 6 ms, Ethernet command to output
Relay monitoring12 relay/coil feedback channels
Fuse monitoringThree status inputs multiplexed across six fuses
SOE reportingConfigurable relay operation events
Terminal-board typesCompatible TRLY and SRLY; DRLY excluded
TERMINAL BOARD OPERATION ＋
Relay characteristics: The connected terminal board determines mechanical versus solid-state outputs, contact arrangement, load rating and available feedback. The PDOA pack is not a standalone relay terminal board.
Source: GEH-6721T, Volume II, PDOA Discrete Output Module, chapter 13; GEH-6855, Volume I, component part-number structure.
FAQ

Questions Buyers Ask Most

How many relays can IS220PDOAH1BC control?＋

IS220PDOAH1BC controls up to twelve relay channels on the connected output terminal board.

Does IS220PDOAH1BC contain the field relay contacts?＋

IS220PDOAH1BC is the I/O pack. Mechanical or solid-state relays and their field ratings are defined by the connected TRLY or SRLY terminal board.

What is the response time of IS220PDOAH1BC?＋

IS220PDOAH1BC follows the PDOA specification of approximately 6 ms from Ethernet command to output.

What feedback does IS220PDOAH1BC read?＋

IS220PDOAH1BC reads relay/coil status and multiplexed fuse feedback. The exact feedback selection depends on the terminal-board type.

Does the final C in IS220PDOAH1BC mean conformal coating?＋

IS220PDOAH1BC uses C as the PWA production revision in the GE part-number structure. That letter alone does not establish a coating option.

Other Available Revisions for the IS220PDOAH1BC＋

No other full revision was confirmed as an interchangeable replacement for IS220PDOAH1BC. Ask Frida to check the installed hardware and application before selecting another revision.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
IS220PDOAH1BC

Official manufacturer-manual PDF status for GE IS220PDOAH1BC.

Official datasheet status

A direct GE-hosted instruction-manual PDF covering IS220PDOAH1BC was not confirmed in the public manufacturer library. For the applicable manual and product documentation, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

GEH-6721T, Volume II, PDOA Discrete Output Module, chapter 13; GEH-6855, Volume I, component part-number structure.

GE MARK VIE SYSTEM RELATIONSHIP

How IS220PDOAH1BC Fits Mark VIe Control

GE is the manufacturer brand; GE Mark VIe is the product family; and IS220PDOAH1BC is the discrete output pack used for discrete relay-output control.

GE · BRAND
GE Mark VIeDiscrete Output Pack
SYSTEM ROLE

Discrete Output Pack

Processes discrete output commands and relay feedback.

MODULE / CONFIGURATION

12 relay-control channels

The connected terminal board provides the output relays and field termination.

I/O ROLE

IS220PDOAH1BC · Discrete Output Pack

Dual RJ-45 IONet ports exchange output and diagnostic data with the controller.

System relationship: PDOA provides networked relay control; TRLY or SRLY defines the field contacts and load capability.
APPLICATION AREAS

Application map for IS220PDOAH1BC

Relay Output ControlCommand configured plant discrete-output circuits
Terminal-Board IntegrationInterface to compatible TRLY or SRLY output boards
MARK VIE DISCRETE OUTPUT IS220PDOAH1BC IS220PDOAH1BC · Discrete Output Pack
Sequence of EventsReport configured relay operation events
Output DiagnosticsReturn relay and fuse status to the Mark VIe controller
