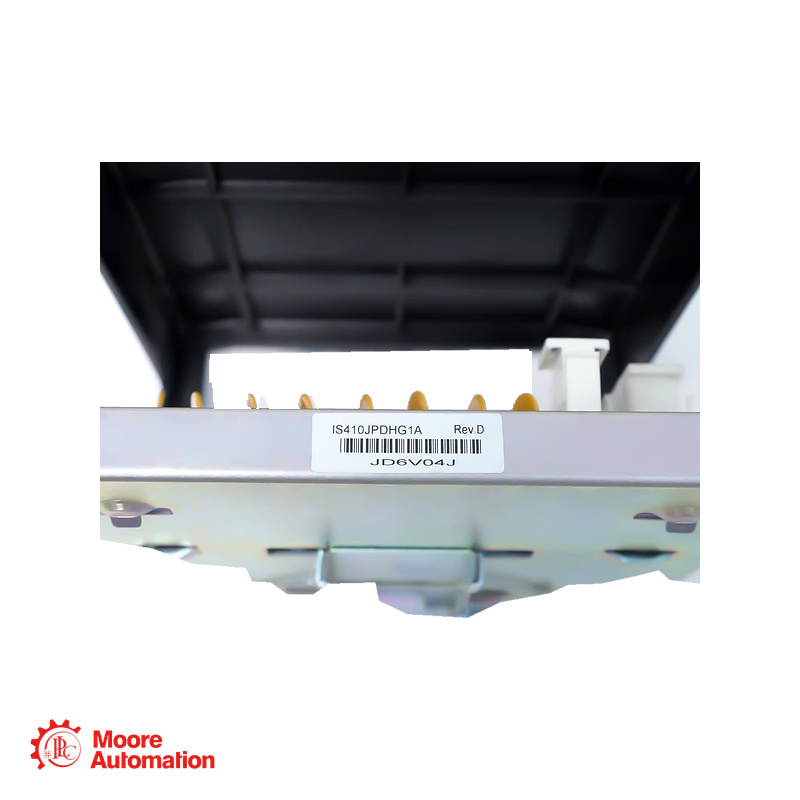

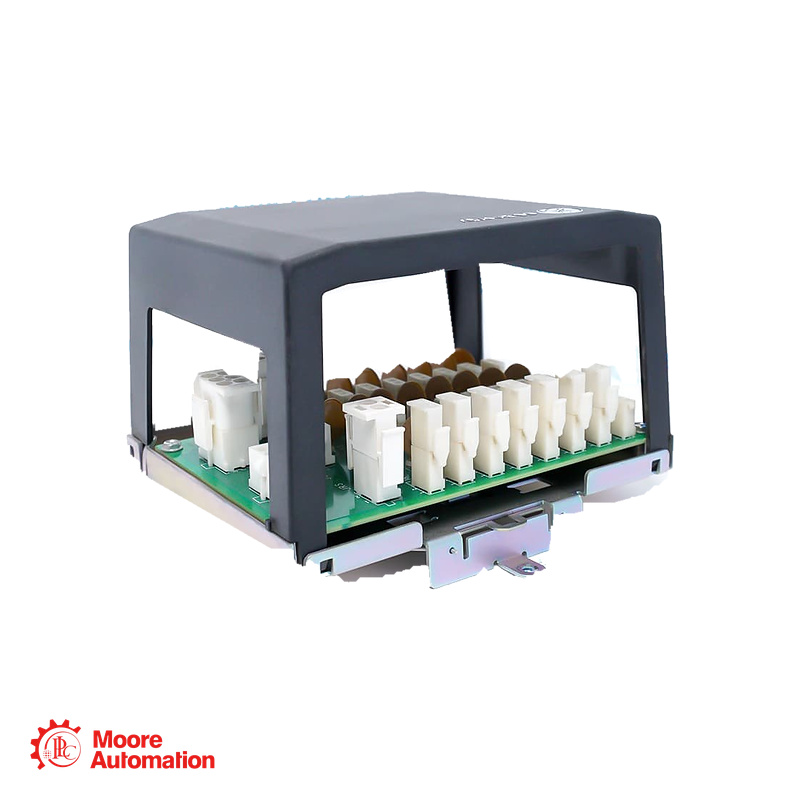

GE IS400JPDHG1ABB Mark VIe High Density Power Distribution Board
GE IS400JPDHG1ABB Mark VIe High Density Power Distribution Board
GE IS400JPDHG1ABB Mark VIe High Density Power Distribution Board

GE IS400JPDHG1ABB Mark VIe High Density Power Distribution Board

GE MARK VIE · 28 V DC POWER DISTRIBUTION

IS400JPDHG1ABB

IS400JPDHG1ABB is a GE Mark VIe JPDH high-density power distribution board. It distributes three 28 V dc feeds to 24 I/O-pack connectors and three Ethernet-switch connectors, with individual PTC protection on the I/O-pack branches.

PRODUCT TYPEHIGH DENSITY POWER DISTRIBUTION BOARD
PLATFORMMark VIe
I/O PACK FEEDS24 outputs
CONTROL POWER28 V dc
MANUFACTURERGE
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Informarsi ora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
GE ● HIGH DENSITY POWER DISTRIBUTION BOARD
MARK VIE

IS400JPDHG1ABB

HIGH DENSITY POWER DISTRIBUTION BOARD

MARK VIE · JPDH · THREE-FEED 28 V DC DISTRIBUTION

MODULE ROLE
IS400JPDHG1ABB is a high-density 28 V dc distribution board with R, S and T power feeds.
LONG DESCRIPTION
IS400JPDHG1ABB provides 24 protected I/O-pack outputs arranged as eight circuits per feed, plus three unfused Ethernet-switch outputs. Its J1X connection supports additional daisy-chained distribution boards.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the IS400JPDHG1ABB Reference Is Structured

IS
Issuing organizationGE, Salem, Virginia
4
Substance codeRoHS designation
00
Assembly levelPrinted wiring assembly
JPDH
Board functionHigh-density power distribution
G
Technology codeLead-through-hole components only
1
Board groupJPDH group 1
A
Compatibility versionBackward-compatibility version A
B
PWA versionPrinted wiring assembly revision B
B
PWB versionPrinted wiring board revision B
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE Mark VIe ↗
IS400JPDHG1ABB HIGH DENSITY POWER DISTRIBUTION BOARD

Engineering data at a glance

Click “+” to expand more specifications.

CONTROL POWER28 V dc
I/O PACK OUTPUTS24 connectors
SWITCH OUTPUTS3 connectors
POWER FEEDSR / S / T
28 V dc power fanout: 24 protected I/O-pack branches, three Ethernet-switch outputs and R/S/T feeds.
Power branch arrangement Board IS400JPDHG1ABB distributes external dc control power. I/O-pack branches have PTC protection, while the Ethernet-switch and J1X daisy-chain circuits are unfused.
GENERAL INFORMATION −
BrandGE
Part numberIS400JPDHG1ABB
Product typeHigh Density Power Distribution Board
Control power28 V dc
I/O-pack outputs24 connectors
Ethernet-switch outputsThree connectors
INPUT & POWER BRANCHES ＋
J1 inputSix-pin connection for three 28 V dc feeds
Feed arrangementR, S and T; eight I/O-pack outputs per feed
Output protectionPTC device on each I/O-pack branch
OUTPUT RATINGS & INSTALLATION ＋
I/O-pack branch limit0.8 A at 70 °C
Ethernet-switch branchesThree unfused outputs
Daisy-chain connectionJ1X, unfused
Ambient range−40 to +70 °C
Board dimensions15.875 cm high × 10.795 cm wide
HIGH-DENSITY POWER FANOUT ＋
Distribution path: J1 brings separate R, S and T 28 V dc feeds onto the board. Each feed supplies eight protected I/O-pack outputs; three additional branches power the Ethernet switches. J1X supports daisy-chain expansion.
Source: GEH-6721 Volume II, JPDH High Density Power Distribution; DEMKO 11 ATEX 0913172 schedule, IS400JPDHG1ABB BOM; GEH-6721 Volume I, Part Numbering Convention.
FAQ

Questions Buyers Ask Most

What does IS400JPDHG1ABB distribute?＋

IS400JPDHG1ABB distributes 28 V dc control power to Mark VIe I/O packs and Ethernet switches.

How many I/O packs can connect to IS400JPDHG1ABB?＋

IS400JPDHG1ABB provides 24 I/O-pack power connectors, with eight supplied by each R, S and T feed.

How are the I/O-pack branches on IS400JPDHG1ABB protected?＋

IS400JPDHG1ABB has a positive temperature coefficient fuse device in each I/O-pack output circuit.

Are the switch outputs on IS400JPDHG1ABB fused?＋

IS400JPDHG1ABB provides three unfused Ethernet-switch power outputs; these are distinct from the protected I/O-pack branches.

Can multiple IS400JPDHG1ABB boards be connected?＋

IS400JPDHG1ABB provides the J1X daisy-chain connection. The installation must include appropriate upstream branch-circuit protection.

Does IS400JPDHG1ABB convert AC power to DC?＋

IS400JPDHG1ABB distributes an external 28 V dc source; it is a power-distribution board rather than an AC-to-DC converter.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
IS400JPDHG1ABB

Official manufacturer-manual PDF status for GE IS400JPDHG1ABB.

Official manual PDF status

A direct manufacturer-hosted instruction-manual PDF covering IS400JPDHG1ABB was not located in the public documentation checked. For the applicable manual and product documentation, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

GEH-6721 Volume II, JPDH High Density Power Distribution; DEMKO 11 ATEX 0913172 schedule, IS400JPDHG1ABB BOM; GEH-6721 Volume I, Part Numbering Convention.

GE MARK VIE POWER-DISTRIBUTION RELATIONSHIP

How IS400JPDHG1ABB Distributes Control Power

GE is the manufacturer brand; GE Mark VIe is the product family; and IS400JPDHG1ABB is the high density power distribution board for high-density R/S/T control-power distribution.

GE · BRAND
GE Mark VIeHigh Density Power Distribution Board
SYSTEM ROLE

High Density Power Distribution Board

Fans out three 28 V dc feeds to I/O packs and Ethernet switches.

MODULE / CONFIGURATION

24 I/O-pack outputs · 3 switch outputs

Each R, S and T feed supplies eight individually protected I/O-pack circuits.

INPUT, OUTPUT & DAISY-CHAIN INTERFACE

IS400JPDHG1ABB · High Density Power Distribution Board

J1 accepts the three dc feeds; J1X connects a downstream JPDH power-distribution board.

System relationship: Upstream 28 V dc control power enters JPDH. The board separates it into protected I/O-pack branches and unfused switch-power branches, with optional daisy-chain continuation.
APPLICATION AREAS

Application map for IS400JPDHG1ABB

I/O Pack Power FanoutSupply 24 branch connectors
TMR Feed SeparationDistribute R, S and T control power
28 V DC CONTROL-POWER DISTRIBUTION IS400JPDHG1ABB IS400JPDHG1ABB · High Density Power Distribution Board
Ethernet Switch PowerSupply three switch-power connectors
Daisy-Chain ExpansionExtend distribution through J1X
