Product Overview

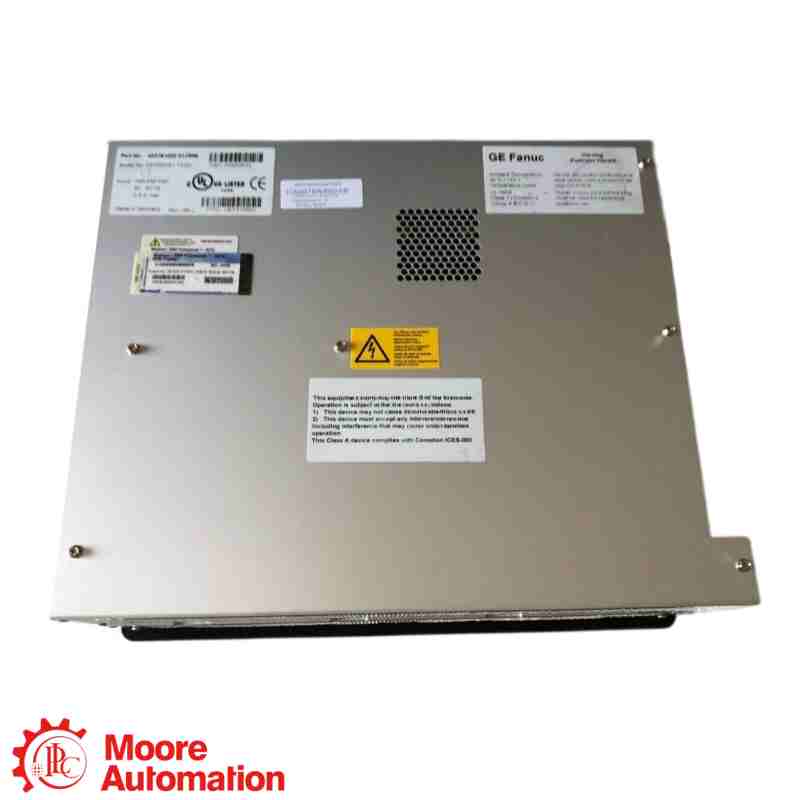

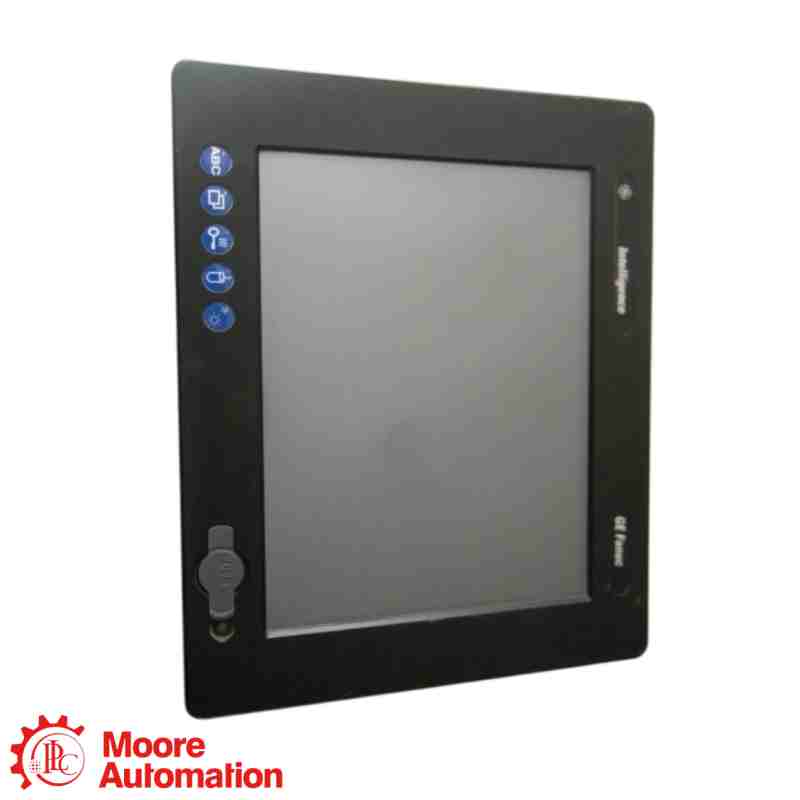

The GE Fanuc IC5005CAC0000 is a 15-inch Intelligence PanelClient for panel-mounted visualization in industrial automation environments. It provides operators with a fixed factory-floor interface for viewing process information and working with HMI or supervisory applications within the control system. This legacy unit may be used when maintaining an existing GE Fanuc operator-interface installation. Before ordering a replacement, the complete IC5005CAC0000 catalog number should be checked against the installed nameplate, hardware revision and original project documentation.

Technical Specifications

Model: IC5005CAC0000 15-inch Intelligence PanelClient
Screen Size: 15 inches (15" TFT Color LCD)
Resolution: 1024 x 768 Pixels (XGA)
Touchscreen Type: High-resolution Capacitive Touchscreen
Input Voltage: 12 / 24 V DC (Direct Current)
Power Consumption: 48 Watts
Operating Temperature: 0°C to 50°C (Standard Industrial Grade)
Hardware Settings: Integrated 4-position DIP Switch
System Clock: Battery-backed Real-Time Clock (RTC)

Features

-15-Inch Panel Format
-Industrial Operator Interface
-Panel-Mounted Installation
-Touch-Based Screen Interaction
-Support for Networked HMI Applications

Application Areas
Factory-Floor HMI Access -Installed near a machine or production area, the IC5005CAC0000 can provide operators with a fixed access point for viewing equipment status, alarms, operating screens and production information supplied by the plant’s HMI or supervisory system.

Distributed Operator Stations-In systems where visualization applications are managed centrally, the panel client can serve as a local operator station at a machine, production line or work area.

Existing System Maintenance-The IC5005CAC0000 may also be required when maintaining an existing GE Fanuc PanelClient installation. Before using it as a replacement, technicians should compare the complete catalog number, hardware revision, power requirements, operating-system image, communication settings and software license with the original unit and project documentation.

Brand	GE
Part number	IC5005CAC0000
Origin	USA
Description	Intelligence PanelClient
Shipping Port	Xiamen，China
Payment	T/T
Lead Time	In stock
Shipment	DHL,UPS,FEDEX,TNT,EMS,SF
Service	One-year warranty

Model Benefits

The product offers a number of benefits, including:
· Local Access to Operating Information
· Support for Distributed Operator Access
· Continuity for Existing Installations
· Reduced Need for System Redesign
· Fixed Operator-Station Format

Frequently asked questions

1.Is the IC5005CAC0000 a PLC?
It should not be selected as a replacement for a programmable logic controller based only on its catalog number. The PanelClient product family was designed for operator-interface applications. Any control capability available at the screen is provided through the configured automation application and connected control system.

2.Can it replace another GE Fanuc PanelClient?
A replacement should not be approved by screen size or product-family name alone. Compare the complete part number, hardware revision, power input, connectors, operating-system image and software license with the original unit. Differences in any of these areas may affect installation or system compatibility.

3.What should be checked before purchasing a replacement unit?
Ask the supplier for a clear photograph of the complete nameplate and verify:
- The full `IC5005CAC0000` catalog number
- Hardware revision and serial information
- Power-input information
- Physical connector arrangement
- Installed operating system
- HMI software and license status
- Included storage media, cables and mounting hardware
- Repair, testing and warranty conditions
