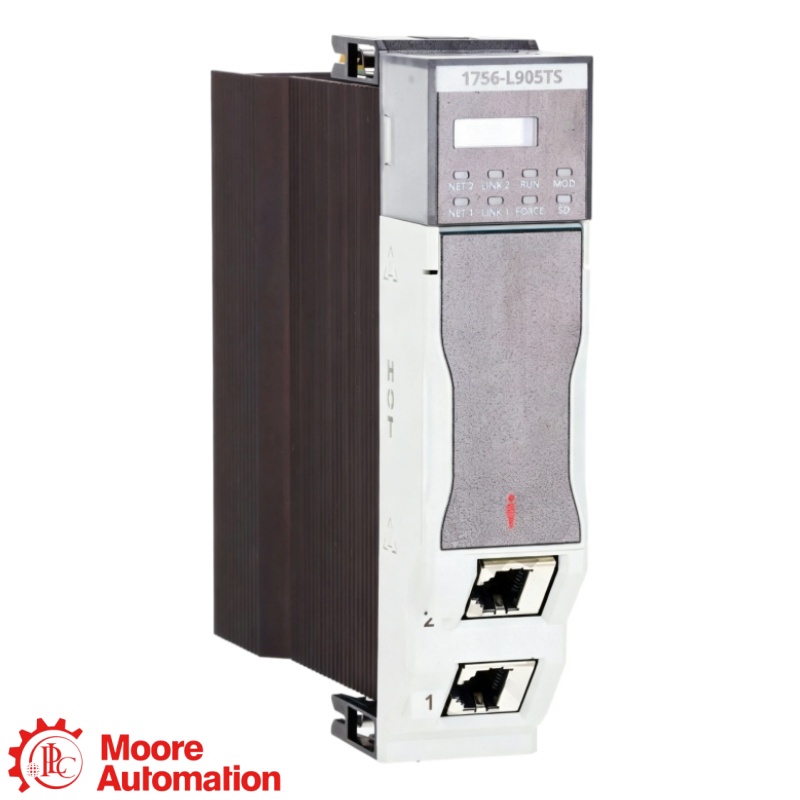

5590 SAFETY CONTROLLER

1756-L905TS

5590 SAFETY CONTROLLER

5 MB STANDARD + 5 MB SAFETY · 100 ETHERNET/IP DEVICES · 1,000 OPC UA NODES

PRODUCT ROLE

1756-L905TS is a 5590 controller with safety capability for larger standard and safety applications. It provides separate 5 MB standard and 5 MB safety memory areas.

INSTALLATION CHECK

Confirm a compatible 1756 chassis and power supply, Series B or C chassis temperature limits, controller firmware, safety project configuration, OPC UA demand and network architecture before installation.

👩‍💼

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275

ORDER NUMBER BREAKDOWN

How the 1756-L905TS order number is structured

1756

Platform identifier1756 chassis-based 5590 controller platform

L905TS

Exact ordered suffixRetain the complete suffix when ordering

OFFICIAL MANUFACTURER REFERENCE

Technical Specifications

1756 TECHNICAL DATA ↗

1756-L905TS

Engineering data at a glance

Click “+” to expand the verified information.

Standard / safety memory5 MB / 5 MB

EtherNet/IP devices100

OPC UA nodes1,000

Ethernet interfaces2 × 1 Gb

Verified configuration

Official product data lists 1756-L905TS with 5 MB standard memory, 5 MB safety memory, 100 EtherNet/IP devices, 1,000 OPC UA nodes, two 1 Gb Ethernet ports and USB-C local access.

General Information −

BrandPLC

Model1756-L905TS

Product category5590 safety controller

Verification statusExact catalog number listed in official product documentation

Official Documentation ＋

1756-TD001 technical data1756-TD001

Exact catalog match1756-L905TS listed

Required confirmationSeries A nameplate, chassis series, firmware, safety project, OPC UA, network and power requirements

Ordering Check ＋

Capacity and safety configurationOrder 1756-L905TS after confirming the complete catalog number, Series A nameplate, 5 MB standard and safety memory requirement, chassis series, firmware, safety integrity configuration and network capacity.

Quotation evidenceExact model, Series A nameplate, firmware, chassis, safety project, quantity and EtherNet/IP/OPC UA requirements

Source: official manufacturer product page and publication 1756-TD001, which list the exact 1756-L905TS configuration.

FAQ

Questions Buyers Ask Most

What applications is 1756-L905TS designed to control?＋

1756-L905TS is a chassis-based 5590 safety controller for applications that combine standard and safety control. It must be installed in a compatible 1756 chassis with supported firmware and a validated safety project.

How much standard and safety memory does 1756-L905TS provide?＋

1756-L905TS provides 5 MB of standard user memory and 5 MB of safety memory. Standard logic, safety tasks, tags and communications must be assessed separately against these limits.

How many network devices and OPC UA nodes can 1756-L905TS support?＋

1756-L905TS is listed for 100 EtherNet/IP devices and 1,000 OPC UA nodes. Final loading also depends on controller connections, produced and consumed tags, task execution and network design.

What Ethernet configuration is built into 1756-L905TS?＋

1756-L905TS includes two 1 Gb Ethernet ports for EtherNet/IP communication and a USB-C interface for temporary local access. Confirm IP addressing, topology, security policy and firmware before commissioning.

What must be checked before replacing a lower-capacity 5590 controller with 1756-L905TS?＋

Verify the source project, safety signature, firmware, I/O tree, chassis series, power supply, network addressing and device capacity. Greater memory in 1756-L905TS does not by itself make the migration automatic.

What operating temperature applies to 1756-L905TS?＋

1756-L905TS is specified for 0…60 °C in a Series C standard chassis and 0…50 °C in a Series B standard chassis. The enclosure and installed chassis must satisfy the applicable limit.

Which details should accompany an order for 1756-L905TS?＋

Provide the exact 1756-L905TS catalog number, quantity, Series A nameplate, chassis series, firmware revision, safety application level, EtherNet/IP device count, OPC UA node requirement and delivery destination.

CONTACT PRODUCT SPECIALIST

Check 1756-L905TS configuration with Frida

Exact model, Series A nameplate, firmware, chassis, safety project, quantity and EtherNet/IP/OPC UA requirements for compatibility and availability checking.

CHOOSE A DIRECT CONTACT METHOD

sales5@mooreplc.com +86 153 5940 8275

OFFICIAL DATASHEET

Manuals and Official References for 1756-L905TS

Official product data lists 1756-L905TS with 5 MB standard memory, 5 MB safety memory, 100 EtherNet/IP devices, 1,000 OPC UA nodes, two 1 Gb Ethernet ports and USB-C local access.

1756-L905TS Official Technical Data

Official product data lists 1756-L905TS with 5 MB standard memory, 5 MB safety memory, 100 EtherNet/IP devices, 1,000 OPC UA nodes, two 1 Gb Ethernet ports and USB-C local access.

1756 TECHNICAL DATA ↗

Contact to Get Support

Exact model, Series A nameplate, firmware, chassis, safety project, quantity and EtherNet/IP/OPC UA requirements.

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

Source: official manufacturer product page and publication 1756-TD001, which list the exact 1756-L905TS configuration.

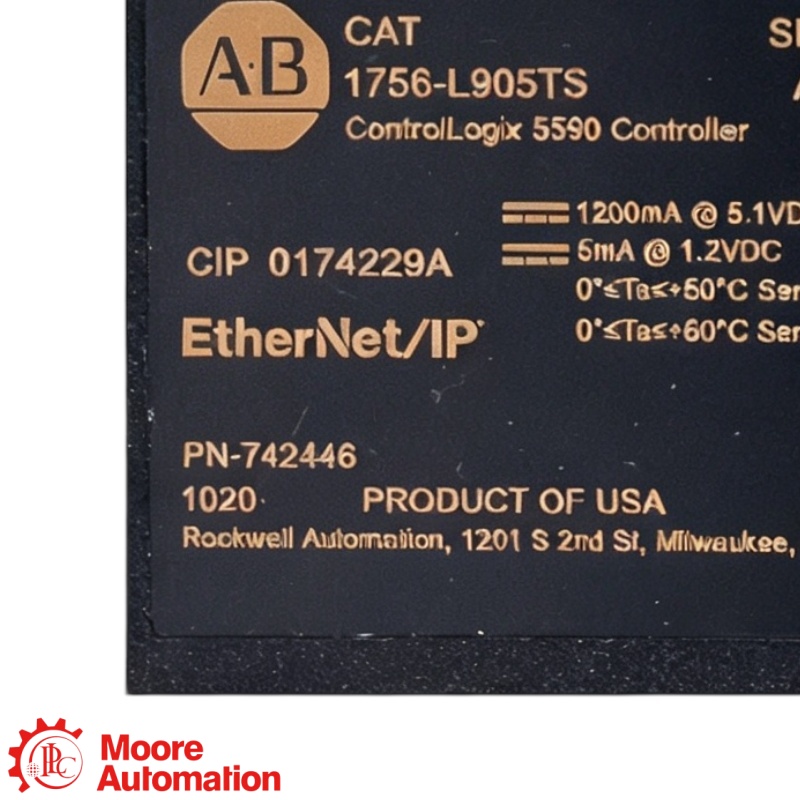

MODEL IDENTIFICATION

How the 1756-L905TS reference should be verified

1756-L905TS is the complete product reference. Match it to the nameplate, supported platform, firmware and documented application.

PLATFORM / TYPE1756 chassis-based 5590 controller platform

→

COMPLETE MODEL1756-L905TS

→

CONFIGURATION / SYSTEMSeries A nameplate, chassis series, firmware, safety project, OPC UA, network and power requirements

Installed System

Record the installed platform, slot or base, power supply, firmware or series, and application revision.

Network Evidence

Record Ethernet ports, EtherNet/IP device count, OPC UA nodes and network topology.

Power Evidence

Confirm chassis power capacity and the official module current requirements before installation.

Migration Limit

Do not replace or migrate until the exact catalog, platform, firmware, connections and environmental limits are verified.

VERIFICATION EVIDENCE

Evidence needed to verify 1756-L905TS correctly

Product Identity

Match 1756-L905TS to the complete nameplate and documented product record.

Installation Context

Document the platform, installed position, power supply, firmware or series, enclosure and all connected devices.

PRODUCT REFERENCE1756-L905TSComplete 5590 safety controller reference

Configuration Evidence

Use the complete nameplate, 1756-TD001 and installed-system records to verify identity and configuration.

Replacement Check

Match the platform, firmware or series, connections, application and environmental requirements before replacement.
