PLC 2098-DSD-020X-DN Digital Servo Drive

2098-DSD-020X-DN

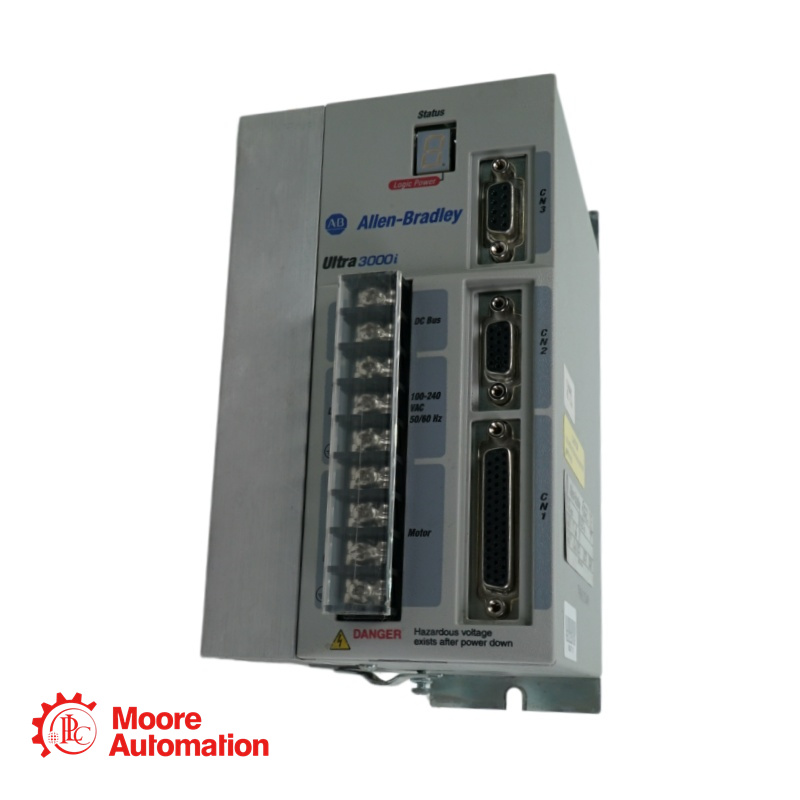

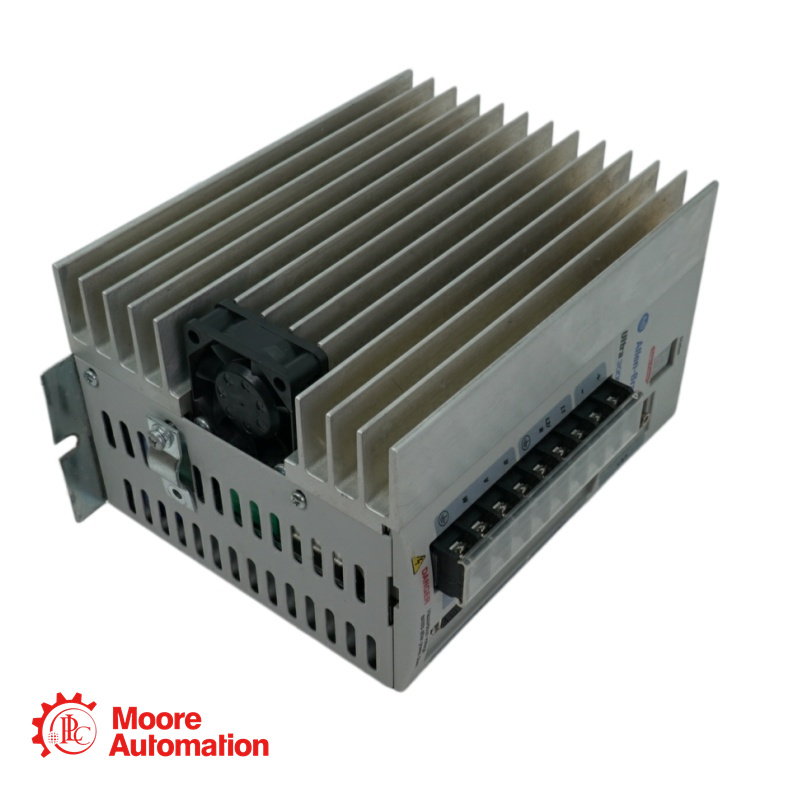

The 2098-DSD-020X-DN is an Digital Servo Drive (DSD) from the Ultra 3000 Product family of motion control components. This drive is mainly used to interface with Servo motors such as plc’s Kinetix Servo Motor series to implement motion and position control to the connected load. The 2098-DSD-020X-DN accepts feedback position data from encoders such as the sine/cosine and incremental external encoders from the Bulletin 842HR, 844D, 847H, and 847T. The 2098-DSD-020X-DN product is operable at an input supply voltage of 120VAC / 240 VAC, 1-Phase, 50-60 Hz, and an input current of 18 Amperes. This servo drive delivers an output voltage of 120 / 240 VAC, 3-Phase, programmable frequency range of 0-400 Hz, maximum continuous output current of 10 amperes, and maximum peak output current of 30 Amperes. It generates a continuous output power of 115 kW at 115 VAC input and 2.0 kW at 230 VAC input. The 2098-DSD-020X-DN has an integrated DeviceNet communication interface that allows the drive to directly communicate with DeviceNet capable controllers such as SLC and Logix controllers with appropriate DeviceNet scanner capability. This enables the driver to perform data exchange at high-speed communication and cover longer distances. Aside from the integrated communication interface, the 2098-DSD-020X-DN comes with a built-in indexing capability. With the indexing function, pre-configured servo motor movements can be stored in the servo drive’s memory which enables users to select the predefined indexing profile for a specific load or product type. These movements include acceleration, velocity deceleration, ramp-up, ramp down, positional data, and other parameters.

Technical Specifications for 2098-DSD-020X-DN

What are available series of the 2098-DSD-020X-DN servo drive?
The 2098-DSD-020X-DN are available in Series A, B and C.

Does the 2098-DSD-020X-DN support SERCOS communication as well?
No. SERCOS port is not available natively to this drive.

Does the 2098-DSD-020X-DN come with integrated communication interface?
Yes. The 2098-DSD-020X-DN has built-in DeviceNet communication interface.

Does the 2098-DSD-020X-DN support indexing feature?
Yes. The 2098-DSD-020X-DN supports indexing function.

What is the output frequency of the 2098-DSD-020X-DN?
The 2098-DSD-020X-DN has an output frequency of 0-400 Hz.
