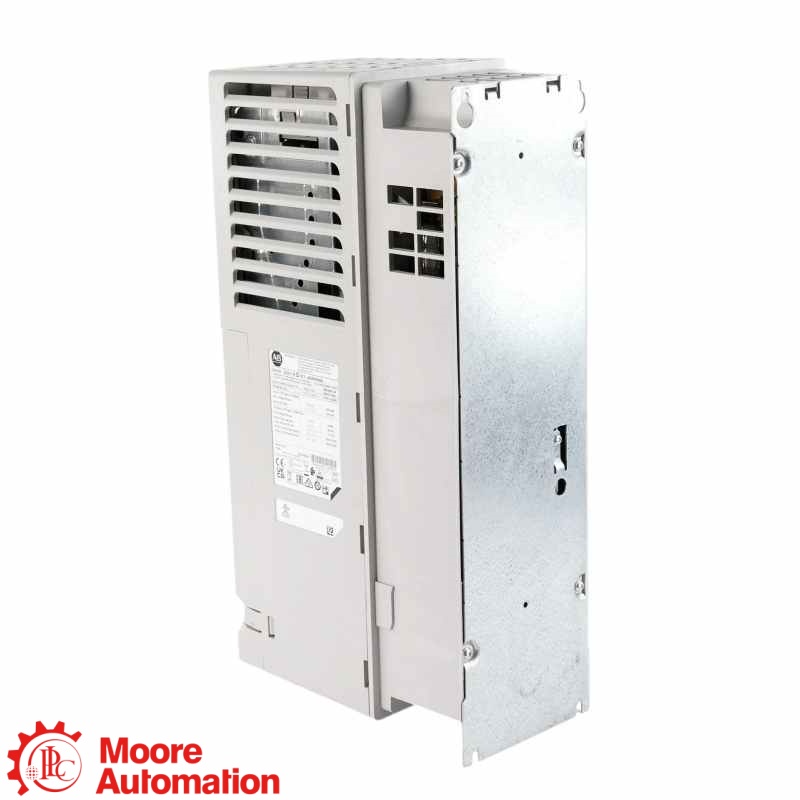

The 20F11ND022AA0NNNNN is a PowerFlex 753 AC drive for 480 V AC three-phase input, rated 22 A with 15 HP normal-duty / 10 HP heavy-duty output.
Marca :
PLCNumero parte :
20F11ND022AA0NNNNNIl peso :
Verify from exact product drawingDimensione :
Verify from exact product drawingPaese d'origine :
Multiple; verify from the exact product labelCodice SA :
PowerFlex 753 AC DriveDescrizione :
The 20F11ND022AA0NNNNN is a PowerFlex 753 AC drive for 480 V AC three-phase input, rated 22 A with 15 HP normal-duty and 10 HP heavy-duty output.Click “+” to expand more specifications.
Source: Official publication 750-TD001 and the exact official product page support 20F11ND022AA0NNNNN technical specifications. Verify the full catalog number, 480 V AC class, 22 A output, duty ratings, frame, enclosure, input, filtering, braking and HIM configuration before replacement.
20F11ND022AA0NNNNN is a PowerFlex 753 AC drive for 480 V AC three-phase input.
20F11ND022AA0NNNNN has a rated output current of 22 A; match the complete catalog number and motor full-load current before replacement.
20F11ND022AA0NNNNN is rated 15 HP for normal-duty operation according to official technical data.
20F11ND022AA0NNNNN is rated 10 HP for heavy-duty operation according to official technical data.
20F11ND022AA0NNNNN uses an IP20/IP00 NEMA/UL Open Type enclosure in Frame 2 with forced-air cooling.
20F11ND022AA0NNNNN uses AC input with precharge and DC terminals, embedded Verify installed communication option, EMC filtering, a DB transistor and no HIM.
20F11ND022AA0NNNNN requires verification of the complete catalog number, 480 V three-phase supply, 22 A rating, duty selection, Frame 2, open enclosure, filter, DB transistor, no-HIM configuration and installed motor system.
Official manufacturer-reference information for the 20F11ND022AA0NNNNN PowerFlex 753 AC drive for industrial motor control.
Official publication 750-TD001 and the exact official product page identify 20F11ND022AA0NNNNN ratings and configuration.
OFFICIAL MANUALSend the complete model, quantity, nameplate photos and your technical or purchasing question.
Technical statements on this page are limited to official manufacturer publication 750-TD001 and the exact official product page for 20F11ND022AA0NNNNN. No third-party product sources were used.
20F identifies the PowerFlex 753 family; in 11ND, the first 1 is reserved, the second 1 identifies AC input with precharge and DC terminals, N identifies the IP20/IP00 open enclosure, and D identifies 480 V AC; 022 is the 22 A code with 15 HP normal duty, 10 HP heavy duty and Frame 2; in AA0NNNNN, the first A identifies the EMC filter and the second A identifies the DB transistor, 0 means no HIM, and NNNNN are unused positions.
PowerFlex 753 AC drive for industrial motor control.
First 1 reserved; second 1 AC input with precharge and DC terminals; N open enclosure; D 480 V AC.
22 A output; 15 HP normal duty; 10 HP heavy duty; Frame 2.
A: EMC filter; A: DB transistor; 0: no HIM; NNNNN: unused.
Match 20F11ND022AA0NNNNN to the complete drive nameplate and installed-system documentation.
Confirm 480 V AC three-phase supply, 22 A output, 15 HP normal-duty and 10 HP heavy-duty ratings.
Confirm the installed communication option, installed control wiring, DB transistor, filter and HIM configuration.
Confirm Frame 2, IP20/IP00 NEMA/UL Open Type enclosure, forced-air cooling and installation clearances before commissioning.
A clear workflow for sourcing, verification, shipment preparation, delivery and product assurance.
Include the complete part number, quantity and delivery destination.
