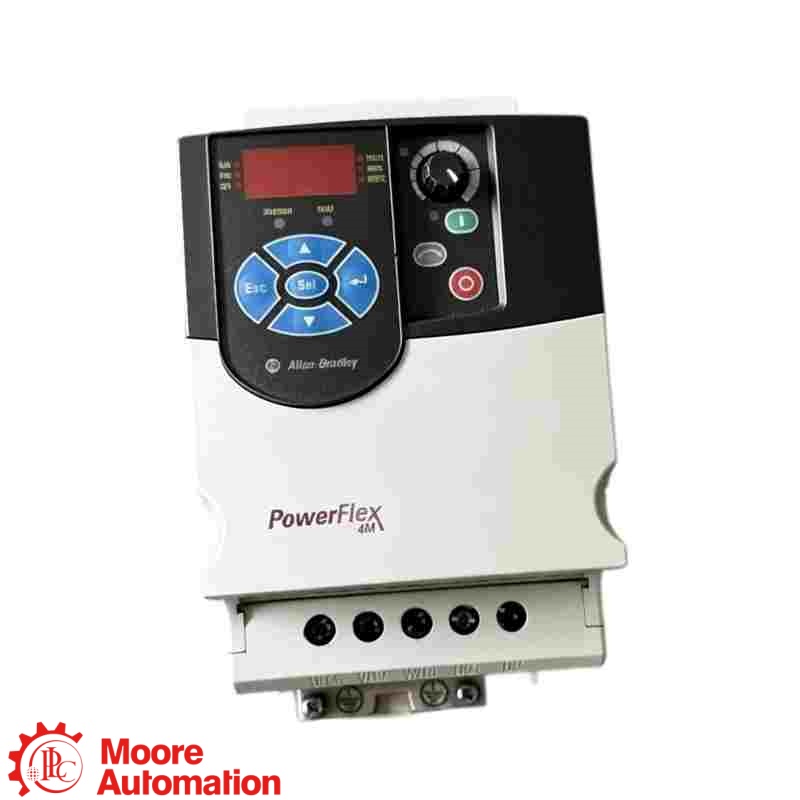

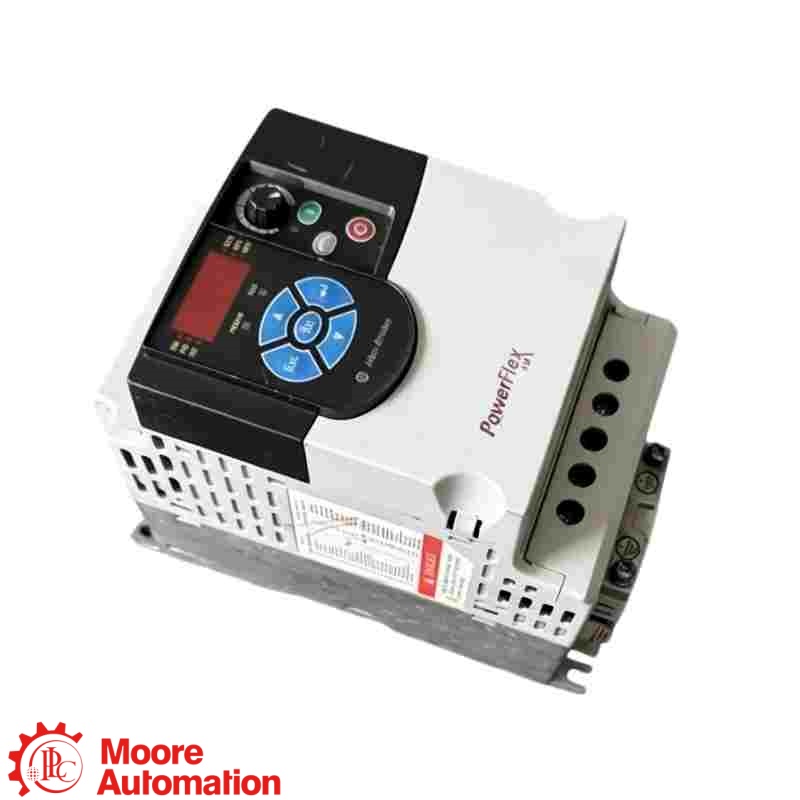

The 22F-D8P7N103 is a PowerFlex 4M Adjustable Frequency AC Drive for 380...480 V AC three-phase input, rated 8.7 A with 5 HP / 3.7 kW motor output.
Marca :
PLCNumero parte :
22F-D8P7N103Il peso :
1.6 kgDimensione :
174 × 72 × 136 mmPaese d'origine :
Multiple; verify from the exact product labelCodice SA :
PowerFlex 4M Adjustable Frequency AC DriveDescrizione :
The 22F-D8P7N103 is a PowerFlex 4M Adjustable Frequency AC Drive for 380...480 V AC, 3 phase input, rated 8.7 A with 5 HP / 3.7 kW motor output.Click “+” to expand more specifications.
Source: Official publication 22F-TD001 and the exact official product cutsheet support 22F-D8P7N103 technical specifications. Verify the full catalog number, 380...480 V AC voltage class, output current, duty rating, frame, enclosure, interface module and EMC filter status before replacement.
22F-D8P7N103 is a PowerFlex 4M AC drive with embedded Integral RS-485 (DSI) and safety for 380...480 V AC three-phase input.
22F-D8P7N103 has a rated output current of 8.7 A; verify the complete catalog number and motor full-load current before replacement.
22F-D8P7N103 is rated 5 HP / 3.7 kW for normal-duty operation according to official technical data.
22F-D8P7N103 is rated 5 HP / 3.7 kW for heavy-duty operation according to official technical data.
22F-D8P7N103 uses an IP20 NEMA/Open Type enclosure in Frame B, measuring 174 × 72 × 136 mm with an approximate shipping weight of 1.9 kg.
22F-D8P7N103 specifies a no EMC filter and no dynamic brake, compact adjustable-frequency motor control and integral RS-485 communication.
22F-D8P7N103 requires verification of the exact catalog number, 380...480 V supply, 8.7 A rating, duty rating, Frame B, IP20 open enclosure, no-filter configuration and installed motor system.
Official manufacturer-reference information for the 22F-D8P7N103 PowerFlex 4M AC drive.
Official publication 22F-TD001 provides exact model ratings and dimensions for 22F-D8P7N103.
OFFICIAL MANUALSend the complete model, quantity, nameplate photos and your technical or purchasing question.
Technical statements on this page are limited to official manufacturer publication 22F-TD001 and the exact product cutsheet for 22F-D8P7N103. No third-party product sources were used.

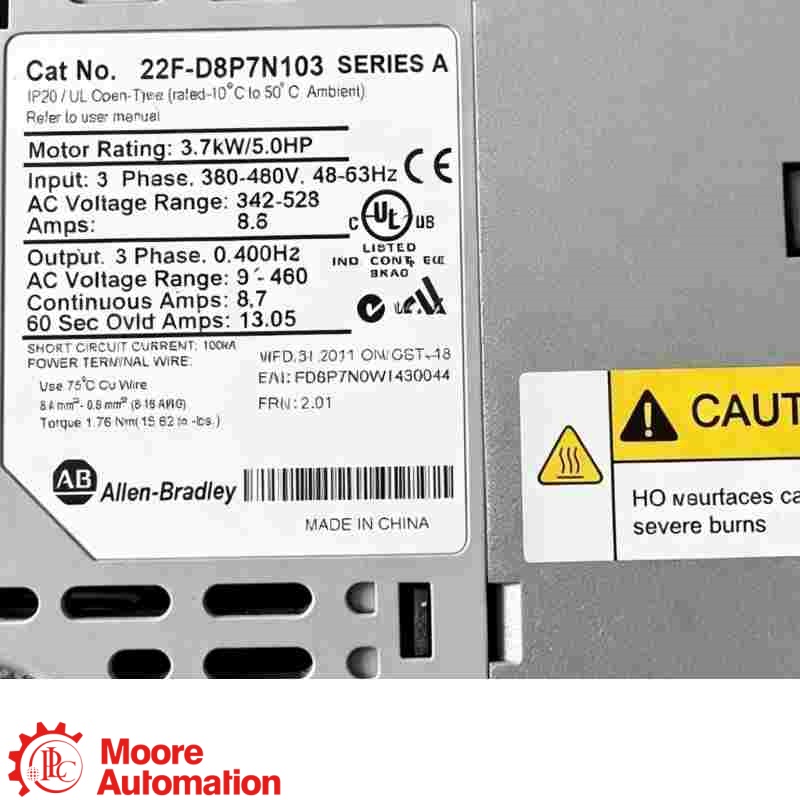

22F identifies the PowerFlex 4M drive family; D identifies the 380...480 V AC three-phase voltage class; 8P7 identifies the 8.7 A rated output-current code; and N103 identifies the IP20 open type, no EMC filter, no dynamic brake.
PowerFlex 4M AC drive.
380...480 V AC, three-phase input.
Rated output current 8.7 A.
IP20 NEMA/Open Type, no EMC filter and no dynamic brake.
Match 22F-D8P7N103 to the complete drive nameplate and installed-system documentation.
Confirm 380...480 V AC three-phase supply, 8.7 A output and 5 HP / 3.7 kW motor output rating.
Confirm Integral RS-485 (DSI) settings, the installed control wiring and the saved drive parameters.
Confirm Frame B, 174 × 72 × 136 mm dimensions, IP20 open enclosure and cooling clearances before commissioning.
A clear workflow for sourcing, verification, shipment preparation, delivery and product assurance.
Include the complete part number, quantity and delivery destination.
