Product Overview

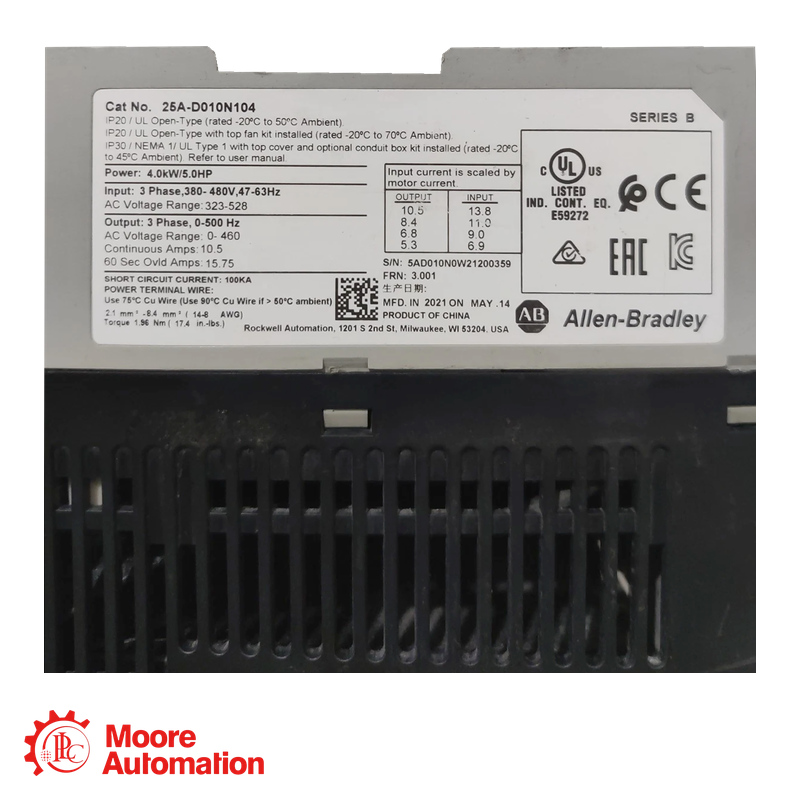

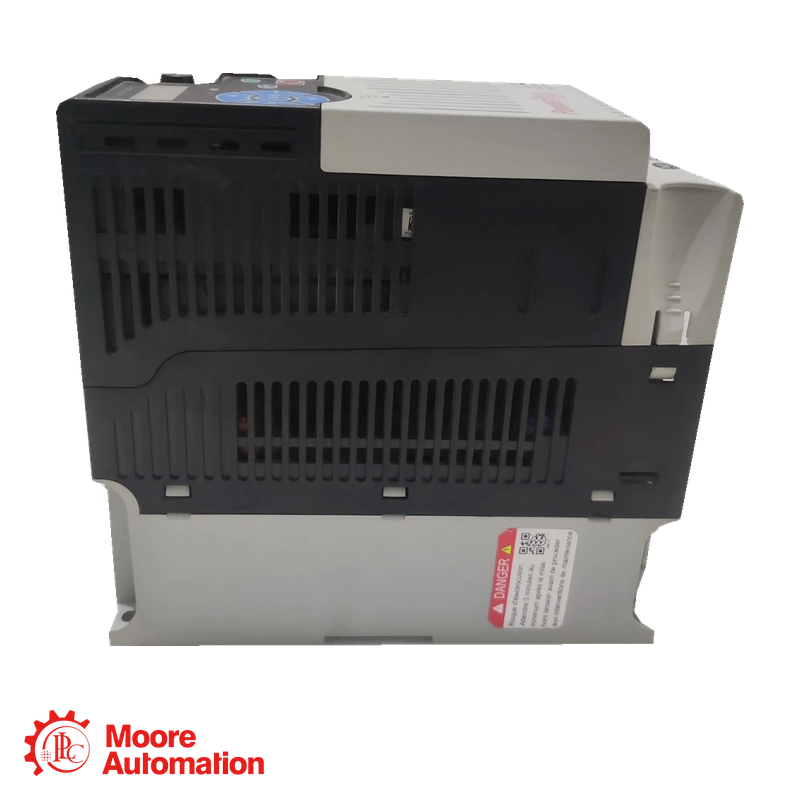

The 25A-D010N104 is a variable frequency AC drive for controlling the speed and torque of three-phase induction motors. It accepts a 380–480V AC three-phase input and provides a rated output current of 10.5 A. This model supports a motor rating of 4 kW or 5 Hp in both normal-duty and heavy-duty applications. Its programmable output-frequency range of 0 to 500 Hz allows engineers to configure motor speed, acceleration and deceleration for different machine loads. The 25A-D010N104 uses a Frame B housing with IP20 open-type protection. The N104 configuration does not contain an integral EMC filter. Cabinet cooling, branch protection, grounding and motor-cable arrangements must be considered during system design.

Technical Specifications

Parameter	Specification
Model Number	25A-D010N104
Product Type	Variable frequency AC drive
Supported Motor Type	Three-phase AC induction motor
Input Voltage Class	380–480V AC
Permitted Input Voltage Range	323–528V AC
Input Phase	Three-phase
Input Frequency Range	47–63 Hz
Maximum Input Current	13.8 A
Input Apparent Power	12.6 kVA
Rated Output Current	10.5 A
Normal-Duty Motor Rating	4 kW / 5 Hp
Heavy-Duty Motor Rating	4 kW / 5 Hp
Output Voltage	Adjustable from 0 to 460V AC
Programmable Output Frequency	0–500 Hz
Intermittent Current Capability	150% for 60 seconds
Carrier Frequency Range	2–16 kHz
Default Carrier Frequency	4 kHz

Benefits&Features

Feature	Model Benefit
4 kW / 5 Hp motor rating	Suitable for medium-duty industrial machinery
380–480V AC three-phase input	Supports common industrial power systems
10.5 A rated output current	Provides a defined basis for motor selection
0–500 Hz programmable output	Enables flexible motor-speed adjustment
Multiple motor-control methods	Supports different torque and load characteristics
Configurable acceleration and deceleration	Reduces mechanical stress during speed changes
Five digital control inputs	Accepts commands from switches, relays or a PLC
Voltage or current analog input	Supports external process and speed references
Form C relay output	Provides configurable operating or fault indication
Built-in RS485 communication	Enables PLC communication and parameter access
Integral braking transistor	Supports controlled deceleration requirements
Frame B construction	Provides a compact format for the 4 kW rating

Application Areas

Conveyor and Material-Handling Systems--The 25A-D010N104 can control conveyors used for product transfer, accumulation, sorting and loading. Configurable acceleration and deceleration help reduce belt slip and mechanical shock when moving heavier loads.

Pumps and Ventilation Equipment--The drive can regulate industrial pumps, cooling fans, extraction systems and ventilation equipment. Adjusting motor speed to actual process demand may improve flow control and reduce unnecessary energy consumption.

Mixers and Agitators--It is suitable for mixers, agitators and dosing equipment powered by motors up to 4 kW. Sensorless vector control can provide improved torque performance when the process must operate across different speed ranges.

Packaging and Processing Machinery--The drive can operate feeders, packaging mechanisms, compact processing machines and production-line auxiliaries. Its programmable inputs allow speed commands and operating sequences to be coordinated with other machine functions.

Frequently Asked Questions

Q1. What motor size is suitable for 25A-D010N104?
The drive is rated for a 4 kW or 5 Hp three-phase induction motor. The motor nameplate current should not exceed the drive’s 10.5 A rated output, and the required starting torque must remain within the permitted duty rating.

Q2. How does 25A-D010N104 differ from 25A-D6P0N104?
The 25A-D010N104 is rated at 4 kW, 5 Hp and 10.5 A and uses a Frame B housing. The 25A-D6P0N104 is rated at 2.2 kW, 3 Hp and 6.0 A and uses a smaller Frame A housing. Their input-current, heat-dissipation and cabinet-space requirements are different.

Q3. Does the N104 configuration contain an EMC filter?
No. This configuration does not include an integral EMC filter. If filtering is required, engineers should select an appropriate external filter and review the motor-cable length, grounding and cabinet layout.
