PLC 25A-D6P0N104 2.2 kW Three-Phase AC Drive

Product Overview

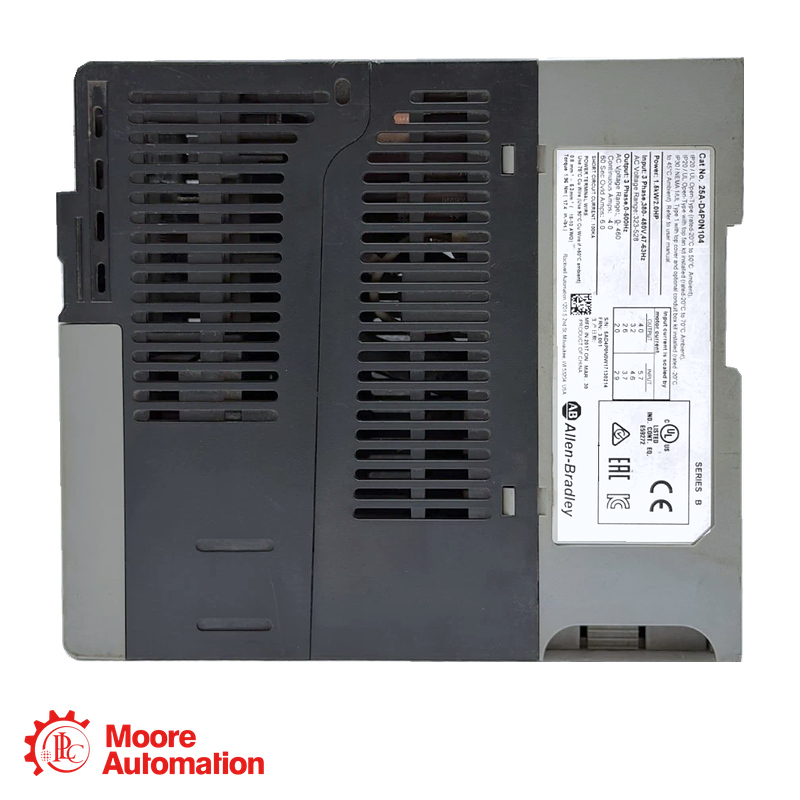

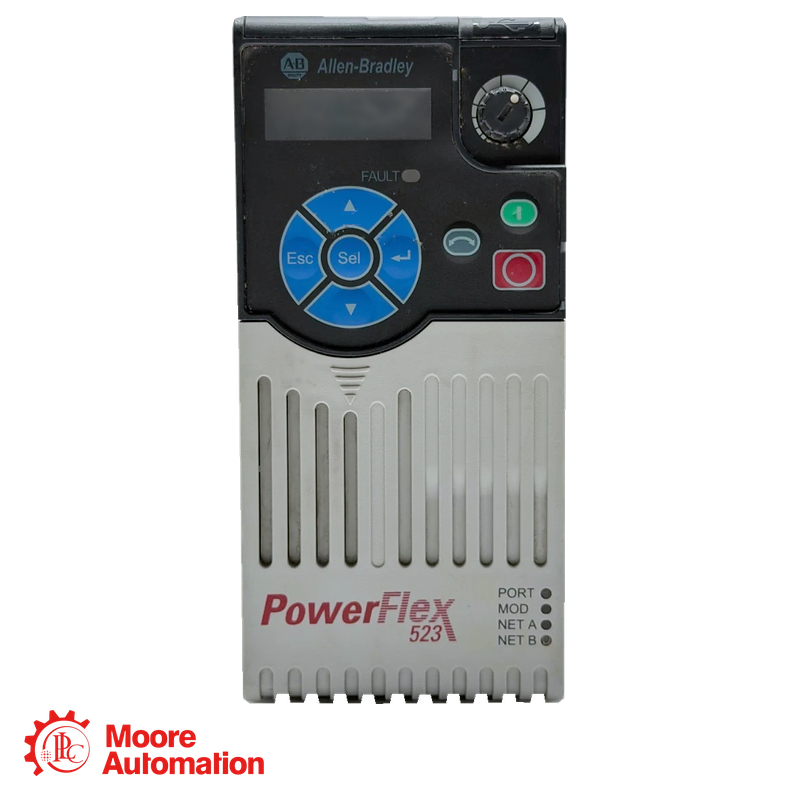

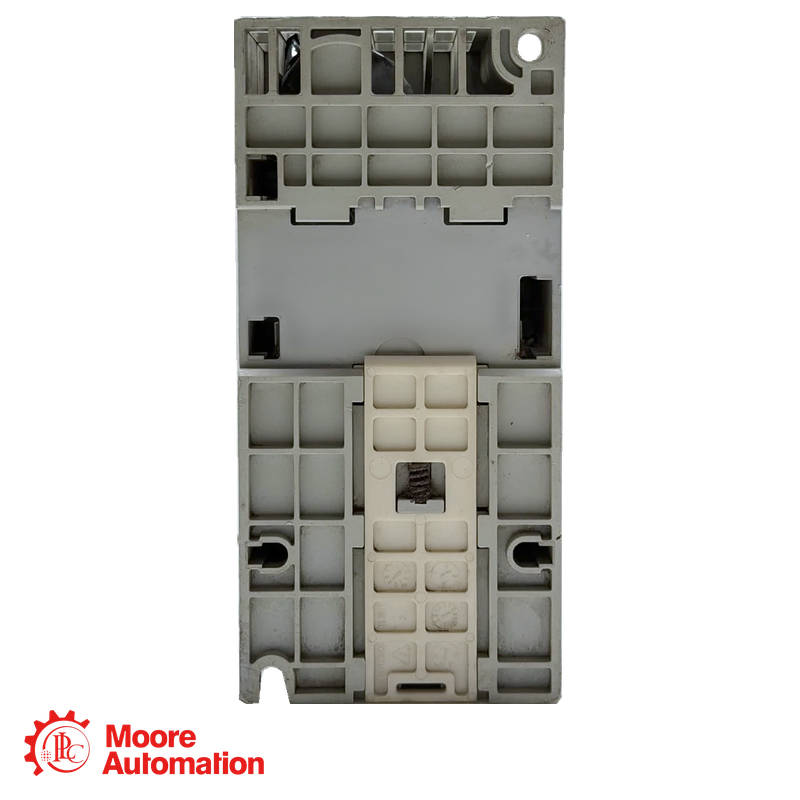

The 25A-D6P0N104 is a variable frequency AC drive for controlling the speed and torque of three-phase induction motors. It operates from a 380–480V AC three-phase supply and provides a rated output current of 6.0 A. This model supports a motor rating of 2.2 kW or 3 Hp in both normal-duty and heavy-duty applications. Its programmable output frequency extends from 0 to 500 Hz, allowing the motor speed, acceleration and deceleration to be adjusted for the connected equipment. Available motor-control methods include volts-per-hertz control, sensorless vector control and sensorless vector control with an energy-saving mode. Commands can be received from the integral keypad, digital and analog terminals, built-in RS485 interface or an optional communication adapter. The drive uses a Frame A housing with IP20 open-type protection. The N104 configuration does not contain an integral EMC filter. External filtering, branch protection, grounding and motor-cable arrangements must be selected for the installation environment.

Technical Specifications

Benefits&Features

Application Areas

Pumps and Ventilation Equipment--The drive can control small industrial pumps, extraction fans, cooling fans and ventilation equipment. Adjusting motor speed according to process demand can improve flow control and reduce unnecessary power consumption.

Mixers and Agitators--It is suitable for mixers, dosing equipment and agitators driven by motors up to 2.2 kW. Sensorless vector control can provide improved torque performance where the load must operate consistently at reduced speed.

Packaging and Processing Machines--The model can control feeders, packaging mechanisms, sealing equipment and compact processing machinery. Its programmable inputs allow start, stop, direction and preset-speed commands to be incorporated into the operating sequence.

OEM and PLC-Controlled Machinery--The Frame A housing is suitable for installation in compact machine-control panels. A PLC can control the drive using digital terminals, an analog reference, RS485 communication or an optional communication adapter.

Frequently Asked Questions

Q1. What motor size is suitable for 25A-D6P0N104?
The drive is rated for a 2.2 kW or 3 Hp three-phase induction motor. The motor nameplate current should not exceed the drive’s 6.0 A rated output, and the starting-torque and overload requirements must be checked for the actual load.

Q2. Can 25A-D6P0N104 operate from a single-phase supply?
No. This model is specified for a 380–480V AC three-phase input. The incoming voltage, phase arrangement, grounding and branch-circuit protection should be confirmed before installation.

Q3. How does 25A-D6P0N104 differ from 25A-D4P0N104?
The 25A-D6P0N104 is rated at 2.2 kW, 3 Hp and 6.0 A. The 25A-D4P0N104 is rated at 1.5 kW, 2 Hp and 4.0 A. Both use a Frame A housing, but motor current, input protection and heat dissipation are different.
