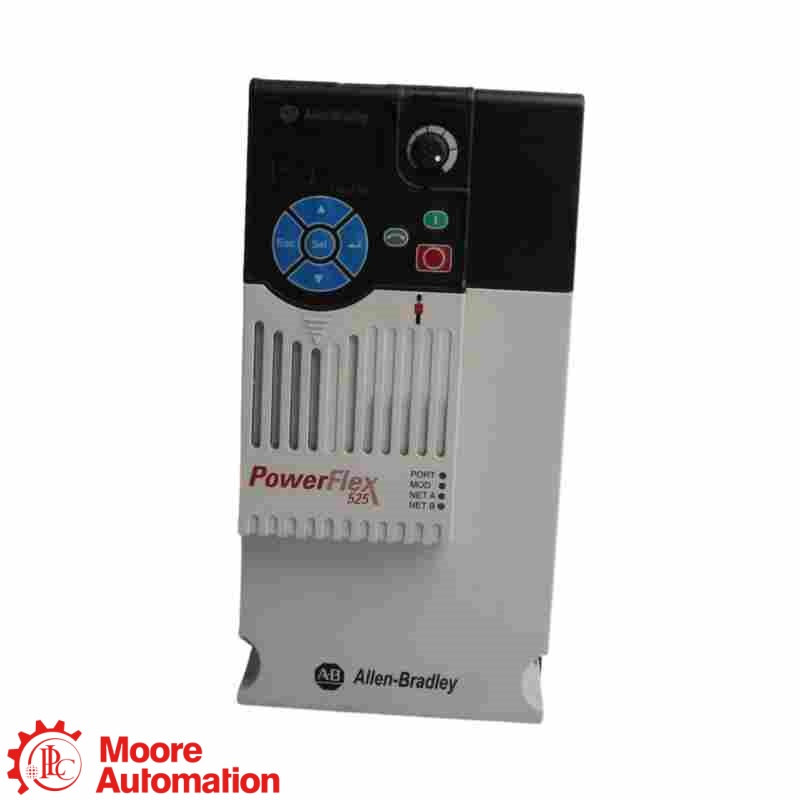

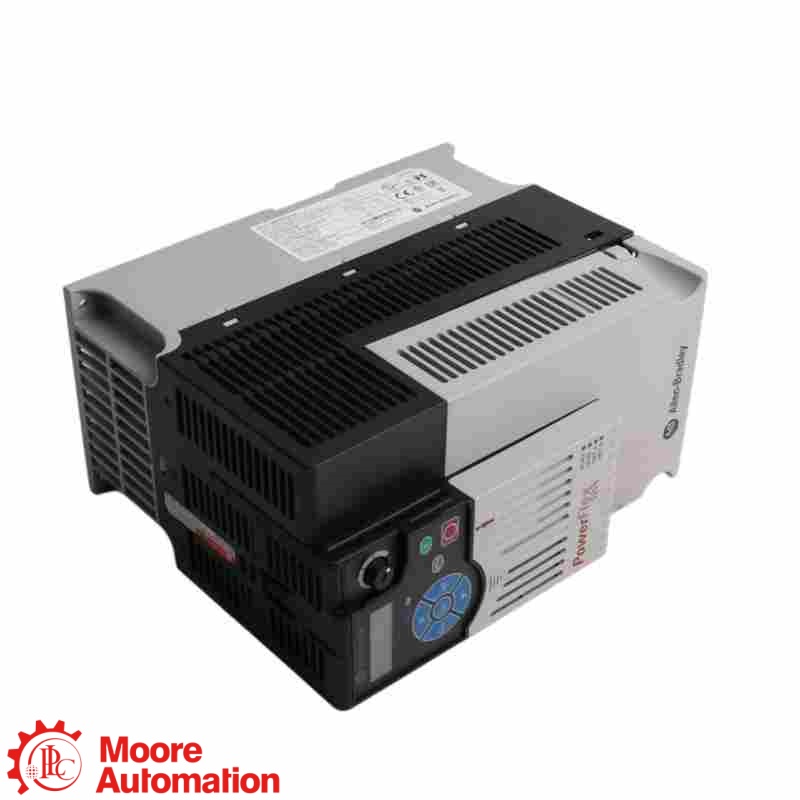

The 25B-D017N104 is a PowerFlex 525 AC drive for 380...480 V AC three-phase input, rated 17.0 A with 10 HP / 7.5 kW normal-duty output, embedded EtherNet/IP and integrated safety.
Marca :
PLCNumero parte :
25B-D017N104Il peso :
2.3 kgDimensione :
220 × 109 × 184 mmPaese d'origine :
Multiple; verify from the exact product labelCodice SA :
PowerFlex 525 AC DriveDescrizione :
The 25B-D017N104 is a PowerFlex 525 AC drive for 380...480 V AC three-phase input, rated 17.0 A with 10 HP / 7.5 kW normal-duty output.Click “+” to expand more specifications.
Source: Official publication 520-TD001 and the exact official product cutsheet support 25B-D017N104 technical specifications. Verify the full catalog number, 380...480 V AC voltage class, output current, duty rating, frame, enclosure, interface module and EMC filter status before replacement.
25B-D017N104 is a PowerFlex 525 AC drive with embedded EtherNet/IP and safety for 380...480 V AC three-phase input.
25B-D017N104 has a rated output current of 17.0 A; verify the complete catalog number and motor full-load current before replacement.
25B-D017N104 is rated 10 HP / 7.5 kW for normal-duty operation according to official technical data.
25B-D017N104 is rated 10 HP / 7.5 kW for heavy-duty operation according to official technical data.
25B-D017N104 uses an IP20 NEMA/Open Type enclosure in Frame C, measuring 220 × 109 × 184 mm with an approximate shipping weight of 2.3 kg.
25B-D017N104 specifies a standard interface, no EMC filter, embedded EtherNet/IP communication and integrated safety.
25B-D017N104 requires verification of the exact catalog number, 380...480 V supply, 17.0 A rating, duty rating, Frame C, IP20 open enclosure, no-filter configuration and installed motor system.
Official manufacturer-reference information for the 25B-D017N104 PowerFlex 525 AC drive.
Official publication 520-TD001 provides exact model ratings and dimensions for 25B-D017N104.
OFFICIAL MANUALSend the complete model, quantity, nameplate photos and your technical or purchasing question.
Technical statements on this page are limited to official manufacturer publication 520-TD001 and the exact product cutsheet for 25B-D017N104. No third-party product sources were used.
25B identifies the PowerFlex 525 drive family; D identifies the 380...480 V AC three-phase voltage class; 017 identifies the 17.0 A rated output-current code; and N104 identifies the IP20 NEMA/Open Type, standard-interface, no-EMC-filter configuration.
PowerFlex 525 AC drive.
380...480 V AC, three-phase input.
Rated output current 17.0 A.
IP20 NEMA/Open Type, standard interface, no EMC filter.

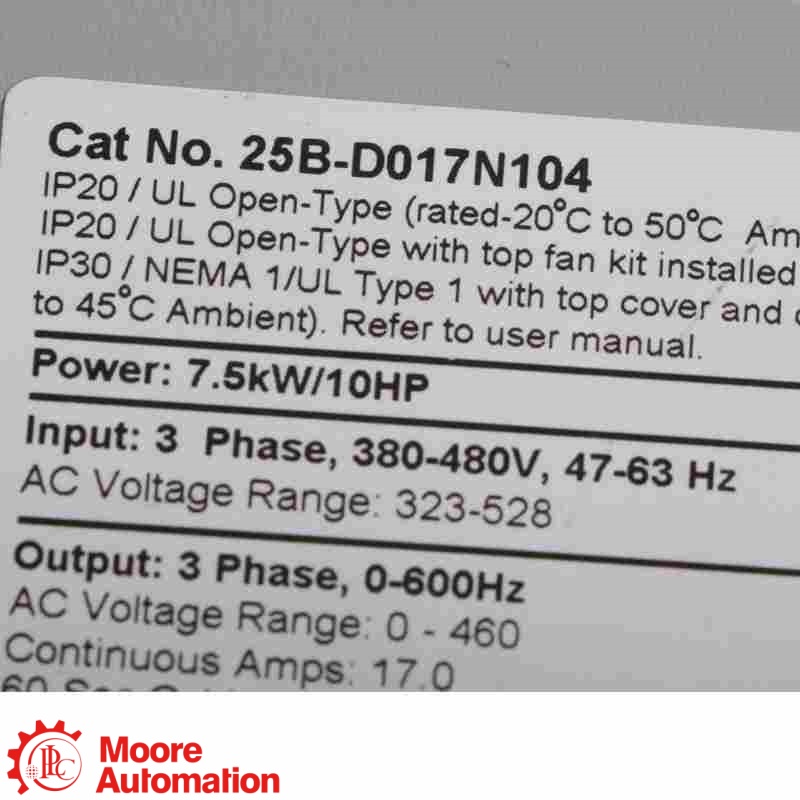

Match 25B-D017N104 to the complete drive nameplate and installed-system documentation.
Confirm 380...480 V AC three-phase supply, 17.0 A output and 10 HP / 7.5 kW normal-duty rating.
Confirm EtherNet/IP integration, the installed safety circuit and the saved drive parameters.
Confirm Frame C, 220 × 109 × 184 mm dimensions, IP20 open enclosure and cooling clearances before commissioning.
A clear workflow for sourcing, verification, shipment preparation, delivery and product assurance.
Include the complete part number, quantity and delivery destination.
