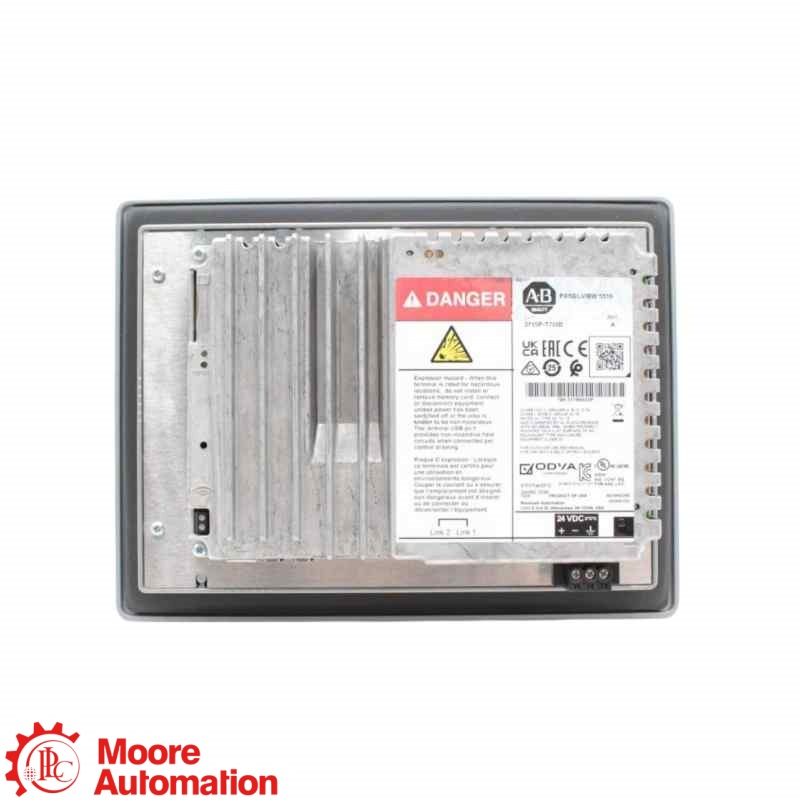

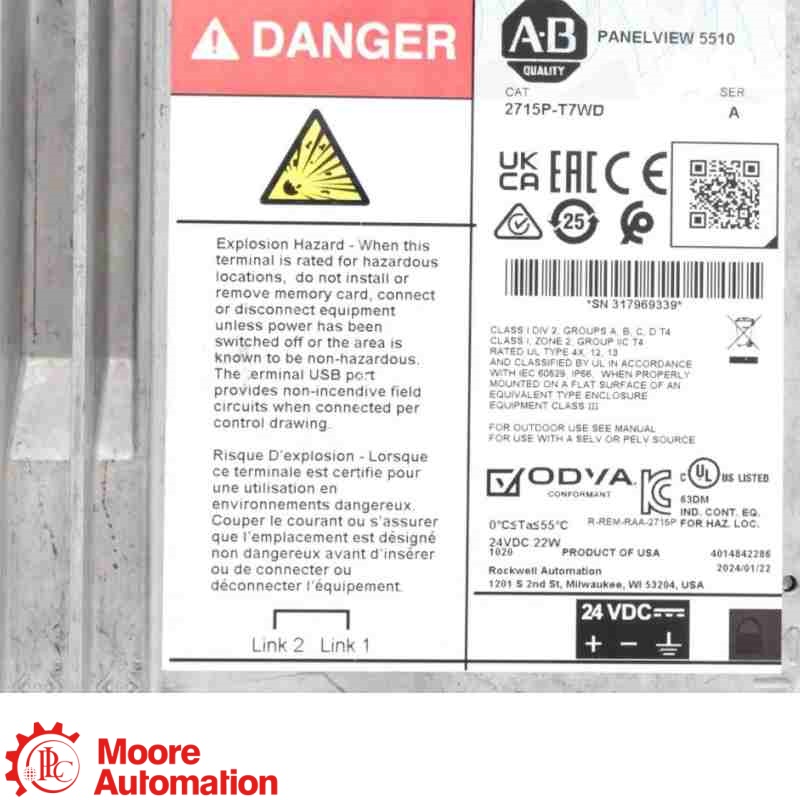

The 2715P-T7WD is a PanelView 5510 graphic terminal with a 7-inch widescreen resistive-touch display, 800 x 480 WVGA resolution, dual 10/100Base-T Ethernet ports and 24 V DC input.
Marca :
PLCNumero parte :
2715P-T7WDDimensione :
178 mm x 237 mm x 69.5 mm (H x W x D); 1.3 kg approx.Codice SA :
PanelView 5510 Graphic TerminalDescrizione :
The 2715P-T7WD is a 7-inch widescreen resistive-touch graphic terminal with an 800 x 480 WVGA color display, dual 10/100Base-T Ethernet ports and 24 V DC input.Click “+” to expand more specifications.
Source: Official publication 2715P-TD001 lists 2715P-T7WD and supports the display, power, connectivity, memory, dimensions and environmental data shown here.
2715P-T7WD is a PanelView 5510 graphic terminal for operator visualization and touch control in industrial automation systems.
2715P-T7WD uses a 7-inch widescreen color TFT LCD with 800 x 480 WVGA resolution and analog resistive touch input.
2715P-T7WD uses a 24 V DC nominal supply and two 10/100Base-T Ethernet ports supporting DLR, linear or star topologies.
2715P-T7WD provides 1 GB RAM, 1 GB nonvolatile project storage and one SD card slot.
2715P-T7WD provides two USB 2.0 host ports and one USB 2.0 device port.
2715P-T7WD measures 178 mm high, 237 mm wide and 69.5 mm overall depth, with an approximate weight of 1.3 kg.
For 2715P-T7WD, provide the complete catalog number, quantity, panel cutout, power supply, Ethernet topology, connected controller and application requirements.
Official manufacturer-reference information for the 2715P-T7WD PanelView 5510 graphic terminal.
Official publication 2715P-TD001 lists 2715P-T7WD and documents its display, power, connectivity, memory, dimensions and environmental specifications.
OPEN OFFICIAL TECHNICAL DATA PDFSend the complete model, quantity, nameplate photos and your technical or purchasing question.
Technical statements on this product page are limited to official publication 2715P-TD001 and the exact official product record for 2715P-T7WD.
2715P identifies the PanelView 5510 terminal family; T identifies touch input; 7 identifies the 7-inch display; W identifies widescreen format; and D identifies 24 V DC power.
PanelView 5510 graphic terminal.
Analog resistive touch input.
7-inch widescreen color display.
Widescreen 5:3 format with 800 x 480 WVGA resolution.
24 V DC nominal input, 18...30 V DC operating range.
Two 10/100Base-T Ethernet ports supporting DLR, linear or star topologies.
1 GB RAM, 1 GB nonvolatile project storage and one SD card slot.
The terminal presents machine status, commands and production information on a 7-inch widescreen touch display.
Touch input and dual Ethernet connectivity support operator control along production lines.
The color TFT display supports process status, alarm and diagnostic visualization.
The panel-mounted terminal is used in suitably protected industrial control panels.
A clear workflow for sourcing, verification, shipment preparation, delivery and product assurance.
Include the complete part number, quantity and delivery destination.
