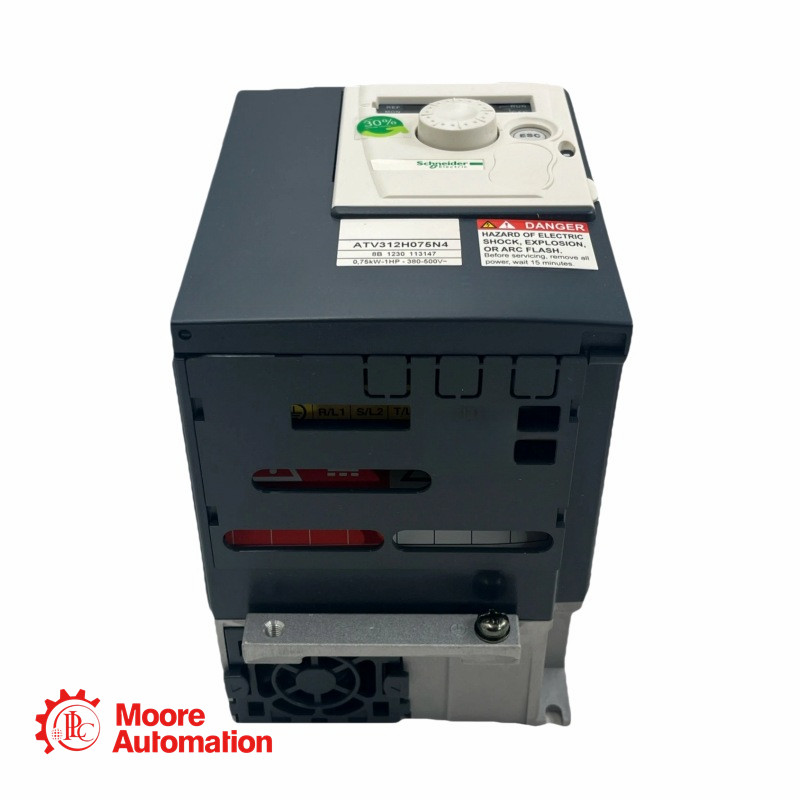

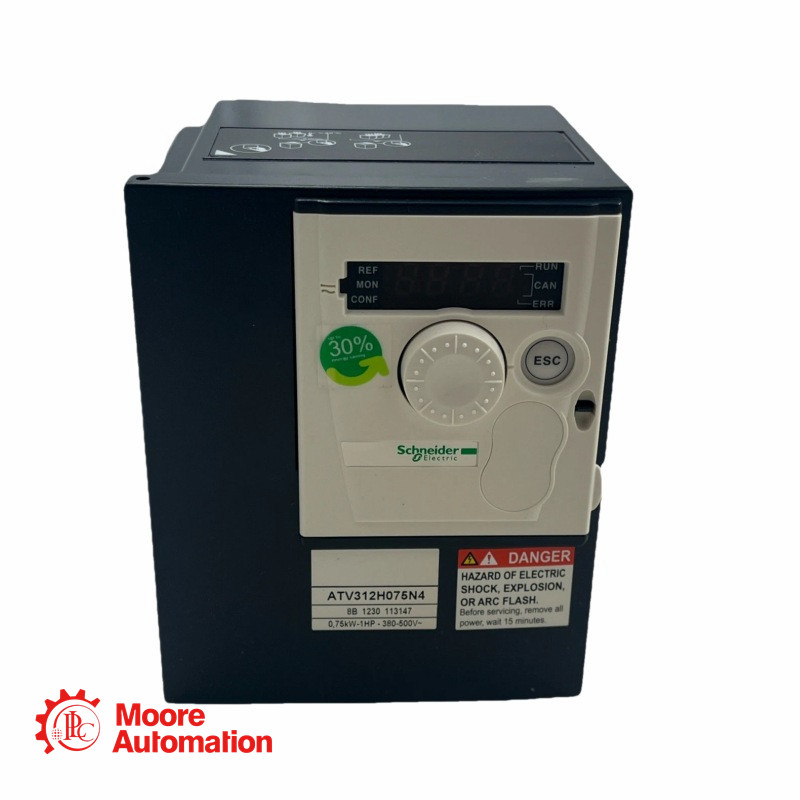

Schneider ATV312H075N4 is a 0.75kW Altivar 312 variable speed drive for three-phase asynchronous motor control in industrial machines and pumps.
Marca :
SCHNEIDERNumero parte :
ATV312H075N4Il peso :
1.8 kgDimensione :
14.3cm x 10.7cm x 15.2cmPaese d'origine :
FRANCECodice SA :
8537101190Descrizione :
0.75kW Altivar 312 variable speed drive for three-phase motor control.
The Schneider Electric ATV312H075N4 belongs to the Altivar 312 variable speed drive family, designed for compact asynchronous motor control in simple machines. It accepts 380–500V three-phase supply, supports Modbus and CANopen communication, and provides adjustable speed, torque, braking, and motor protection functions. With integrated EMC filtering, selectable switching frequency, and built-in I/O, it is suitable for pumps, fans, conveyors, mixers, and retrofit automation panels requiring reliable VFD speed regulation.
|
Contact Sales Manager Nina |
Whatsapp：+86 18030235312 |
|
Email：sales8@askplc.com |
|
Technical Parameters |
|
|
Part Number |
ATV312H075N4 |
|
Product Series |
Altivar 312 |
|
Product Type |
Variable speed drive / VFD |
|
Motor Power |
0.75 kW / 1 HP |
|
Rated Supply Voltage |
380–500 V AC, 3-phase |
|
Supply Frequency |
50/60 Hz |
|
Line Current |
3.6 A at 380 V; 2.7 A at 500 V |
|
Apparent Power |
2.4 kVA |
|
Continuous Output Current |
2.3 A at 4 kHz |
|
Communication Protocol |
Modbus, CANopen |
|
Protection Rating |
IP20 / IP21 / IP31 / IP41 depending on mounting area |
|
Weight and Dimension |
1.8 kg; 14.3cm x 10.7cm x 15.2cm |
|
FAQ |
|
Q1: What type of motor is ATV312H075N4 designed to control? |
|
A: ATV312H075N4 is designed for three-phase asynchronous motors. It supports constant torque applications and sensorless flux vector control, making it suitable for general industrial machine speed regulation. |
|
|
|
Q2: Can ATV312H075N4 be used directly on a single-phase power supply? |
|
A: No. This model is designed for a 380–500 V three-phase supply. Before replacement or installation, users should confirm the site voltage, phase number, motor rating, and cabinet wiring. |
|
|
|
Q3: What should buyers check when replacing an old ATV312H075N4 drive? |
|
A: Check motor power, input voltage, output current, control terminals, communication protocol, mounting space, parameter settings, and whether the replacement drive must match the original Altivar 312 configuration. |
|
|
|
Q4: Is ATV312H075N4 still available from Schneider Electric? |
|
A: The model is discontinued, but it may still be available as surplus, refurbished, or replacement stock. Schneider recommends ATV320U07N4C as the official replacement option. |
Application Fields
Oil and gas wellhead monitoring skids
Natural gas compressor station control panels
Water and wastewater pump station automation
Power plant auxiliary equipment control
|
